cheap price Universal Turret Milling Machine

FOB Price

US$ 7,500 - 7,980 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shandong, China
Brand Name	HISING	Model Number	HVTM1450A/HVTM1450B
Type	Universal	CNC or Not	Normal
Voltage	Customer Requirement	Power(W)	3.7/2.2kw
Dimension(LWH)	1750x1520x2220mm	Weight	1750kg
Certification	ISO9001:2008	Warranty	12 Months
After-sales Service Provided	Engineers available to service machinery overseas

The Specification of Universal Turret Milling Machine(HVTM1450A/HVTM1450B):

Model	HVTM1450A	HVTM1450B
Spindle Taper	7:24 ISO 40mm	7:24 ISO 40mm
Distance From Spindle to Table	150-490mm	150-490mm
Distance From Spindle to Column	200-550	200-550
Spindle Speeds	(20 steps) 78-6980(V) 400-1300(H)rpm	(20 steps) 78-6980(V) 400-1300(H)rpm
Table Size	1250×320	1250×320mm
Table Travel(X×Y×Z)	600/300/350	800/300/350mm
Feeding Range of Longitudinal,Cross Travel	(8 steps) 30-740(rapid feed 1080)mm/min	(8 steps)30-740(rapid feed 1080)mm/min
Auto-feeding of Z-axis	560mm/min	560mm/min
T-slot(number-width-distance)	3/14/70mm	3/14/70mm
Main Motor Power	3.7/2.2kw	3.7/2.2kw
Overall Dimension	1700×1520×2260mm	1700×1520×2260mm
N.W/G.W	1550/1750kg	1650/1850kg

Rectangular table guideways with high stability.

Hardened and ground table surface.

Headstock swivels ±45°

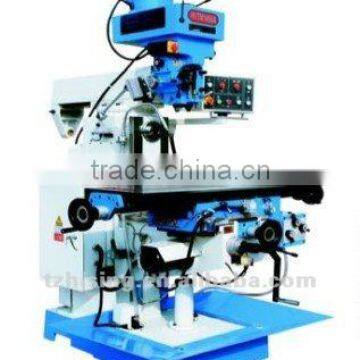

Photo of cheap price Universal Turret Milling Machine:
