Horizontal Vertical Universal Milling Machine for sale

FOB Price

US$ 4,500 - 5,500 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shandong, China
Brand Name	HISING	Model Number	HV32
Type	Universal	CNC or Not	Normal
Voltage	Customer Requirement	Power(W)	3KW
Dimension(LWH)	1.8x2.0x2.0M	Weight	1800KG
Certification	ISO9001:2008	Warranty	12 Months
After-sales Service Provided	Engineers available to service machinery overseas

Horizontal Vertical Universal Milling Machine for sale :

The specification of Horizontal/Vertical Milling Machine:

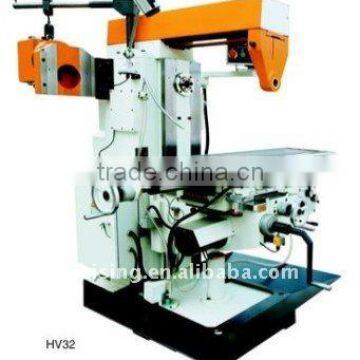

Model	HV32
Worktable size	1370×300mm
Worktable travel	720×300×450mm
Distance from horizontal spindle to table	0-450mm
Distance from horizontal spindle to arm	350mm
T-slot of table (number-width-length)	3-14-70mm
Spindle taper	ISO40
Spindle speed.(range/steps)	Horizontal:40-1300r.p.m(12 steps)
Range of worktable X,Y travel	22-555mm/min
Rapid feed of worktable (X,Y axis)	1080mm/min
Z axis motor feeding	560mm/min
Main motor power	3kw(horizontal)
Motor for rapid device of table(X,Y/Z)	0.75kw
N.W	1800kg

With vertical milling adjustable hanging unit .

Table:X,Y axis auto-feed,Z axis motor feeding.

Rectangle guideways,high stability.

Table and guideways are hardened and ground.
