Home > Products > Milling machine > 4H Vertical Turret Milling Machine Variable Speed Head
4H Vertical Turret Milling Machine Variable Speed Head
- QINGDAO PORT SHANGHAI PORT TIANJIN PORT GUANGZHOU PORT
- T/T Credit Card
You May Like
-
Turret Vertical Milling Machine With Top Quality for Sale
-
South American Markets Hot Selling New Condition Fresadora Vertical Horizontal
-
X6336WS Universal Milling Machine With Table Swivel 45 Degree
-
6VMA Bridgeport Milling Machine With Table Size 1370x305mm
-
New Vertical After Sale Service Provided Bridgeport Milling Machine
-
X Y AXIS SERVO DRIVEN MILLING MACHINE VERTICAL WITH HORIZONTAL MILLING FUNCTION
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | TZHISING | Model Number | 4H with R8 spindle taper | |
| Type | Vertical | CNC or Not | Normal | |
| Voltage | 380V/220V/415V | Power(W) | 3HP | |
| Dimension(L*W*H) | 1600X1700X2250MM | Weight | 1200KG | |
| Certification | CE ISO9001 | Warranty | 12 MONTHS | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
4H Vertical turret milling machine variable speed head
Main Features of 4H Vertical turret milling machine variable speed head:
Table size: 254x1270mm
X/Y/Z axis travel:750(850)x400x400mm
Worktable quenched and fine grinded.
Taiwain turret milling head 3HP,
Spindle taper R8,
Taiwan leadscrew.
OEM services provided
Voltage can be specially ordered.
Color can be specially ordered.
Main Specifications of 4H Vertical turret milling machine variable speed head:
Specification | 4H | 5H | 6VMA |
Table size (mm) | 1270×254 | 1370×305 | 1370×305 |
T slots (N/W/D) | 3/16/65 | 3/16/65 | 3/16/65 |
Longitudinal travel (mm) | 750 (850 manually) | 750(850 manually) | 850 |
Cross travel (mm) | 400 | 400 | 400 |
Vertical travel (mm) | 400 | 400 | 400 |
Quill shaft travel (mm) | 127 | 127 | 127 |
Distance between spindle center and column (mm) | 170-520 | 170-520 | 155-600 |
Distance between spindle nose and table surface (mm) | 0-460 | 0-460 | 0-500 |
Arm travel (mm) | 400 | 400 | 450 |
Milling head tilting | 90° (Left&Right); 45° (Front&Back) | 90° (Left&Right); 45° (Front&Back) | 90° (Left&Right);
|
Spindle taper | R8 | NT40 | NT40 |
Spindle speed (r/min) | 66-4540(16 steps) | 66-4540(16 steps) | 66-4540(16 steps) |
Power of spindle motor (kw) | 2.2 | 3.7 | 3.7 |
Max table safety load (kg) | 350 | 350 | 500 |
Overall size (mm) | 1600×1700×2250 | 1750×1650×2100 | 1800×1800×2100 |
Net weight (kg) | 1200 | 1500 | 1600 |

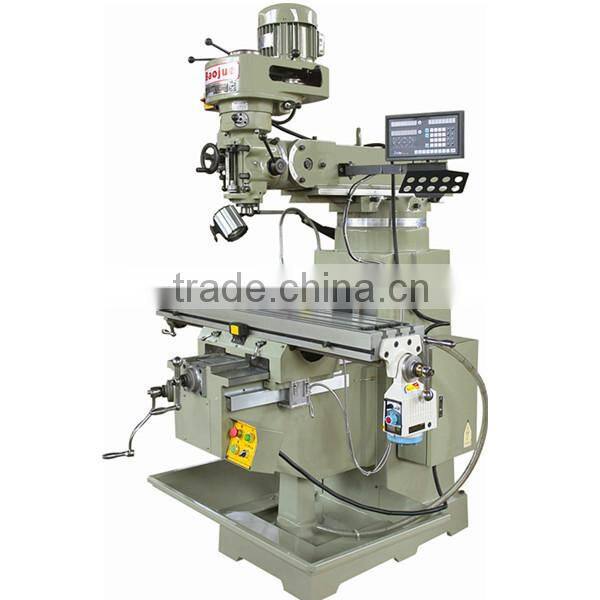

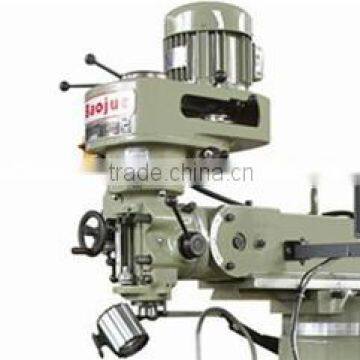

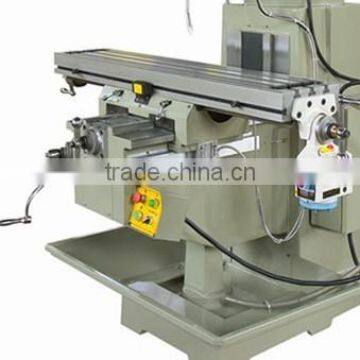

Photos of 4H Vertical turret milling machine variable speed head:
