Turret Milling Machine price list provided
USD $1,500 - $5,500
/ Set
1 Set(Min.Order)
- QINGDAO
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | HISING | Model Number | X6323B/X6325A/X6325C/XU6325/X6330 | |
| Type | Universal | CNC or Not | Normal | |
| Voltage | Customer Requirement | Power(W) | 3KW | |
| Dimension(L*W*H) | 1.6x1.8x2.2m | Weight | 1380kg | |
| Certification | ISO9001:2008 | Warranty | 12 Months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Turret Milling Machine price list provided :
Specification:
| Model | X6323A | X6323B | X6325A | X6325B | X6325 | X6325C | X6325D | XU6325 | X6330 | X6330A | X6333 | X6333A | |
| Table Size | 230×1067 | 254×1270 | 250×1270 | 305×1370 | 330×1370 | ||||||||
| 230×1246 | 54×1370 | 305×1500 | 330×1500 | ||||||||||
| Table Travel | X axis | 650/840 | 850/950 | 770 | 870/1000 | 840/1000 | |||||||
| Y axis | 305 | 400 | 420 | 420 | 380 | 368 | |||||||
| Z axis | 400 | 420 | 420 | 400 | 400 | 430 | 450 | ||||||
| Distance from Horizontal Spindle to Table | 0-415 | 0-405 | 0-350 | 0-450 | |||||||||
| T-slot of table(no./width) | 3×16 | ||||||||||||
| Spindle Taper | R8(standard);ISO 30/ISO40(optional) | ISO40 | R8 | ISO40 | |||||||||
| Spindle Speed(range/steps) | standard | 65-4500 50hz/80-5440 60hz | 65-4500 50hz/80-3750 60hz | 65-4500 50hz/80-5440 60hz | |||||||||
| optional | 65-4500 rpm(variable) | 65-3750(variable) | 65-4500 rpm(variable) | 65-3750(variable) | |||||||||
| Spindle Travel | 127 | ||||||||||||
| Auto-quill feed | 0.04/0.08/0.15mm/r(3steps) | ||||||||||||
| Ram Travel | 312 | 470 | 500 | ||||||||||
| Head Swivel(Left to Right) | 90° | ||||||||||||
| Head Swivel(Front to Rear) | 45° | fix | 45° | 45° | fix | 45° | fix | ||||||
| Main Motor Power | 2.25kw/3hp | 3.75kw/5hp | 2.25kw/3hp | 3.75kw/5hp | |||||||||
Feature of Turret Milling Machine price list provided:
1. Harden and ground table surface
2. Auto feed on two axes, motorized on Z aixs
For detailed specification of turret milling machine X6325d and other models, pls see the table abov

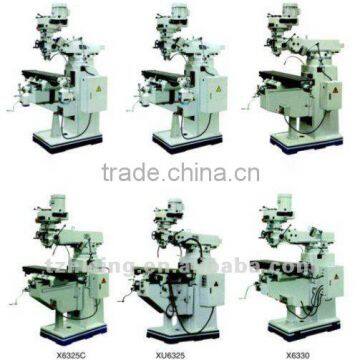

Photos of Turret Milling Machine price list provided :
e
