Product Details

Condition	New	Place of Origin	Guangdong, China
Brand Name	HISING	Model Number	XU32W
Type	Vertical	CNC or Not	Normal
Voltage	Customer Requirement	Power(W)	2.2KW
Dimension(LWH)	1700x1500x2200mm	Weight	1600kg
Certification	ISO9001:2008	Warranty	12 Months
After-sales Service Provided	Engineers available to service machinery overseas

The Specification of XU32W Universal Radial Milling Machine:

MODEL	XU32W
Spindle Taper	ISO 40
Distance from Spindle to Table	90-370mm
Distance from Horizontal Spindle to Table	0-280mm
Spindle Speeds	(16steps)80-5440r.p.m(vertical)/(12steps)40-1300r.p.m(horizontal)
Spindle Travel	120mm
Feeding of Quill	(3 steps)0.01,0.08,0.15
Head Movement	±45°
head movement	±45°
Max.Drilling Capacity of Auto-feeding	10(iron)mm
Table Size	1250×320(1370×320)
Table Travel(Horizontal/Cross/Vertical)	600(700)/300/280mm
Distance from Spindle Axis to Arm	200mm
Feeding Range of Longitudinal,cross travel	(8steps) 22-555(rapid 1080mm/min)
Auto-feeding of Z-axis	560mm/min
T-slot(Number-Width-Distance)	3-14-70
Main Motor	3HP(V) 2.2KW(H)
Motor for Rapid Device of Table(X,Y)	750w
Motor for Vertical Device of Table(Z)	750w
Overall Dimension	1700×1500×2000mm
N.W/G.W	1500/1600kg

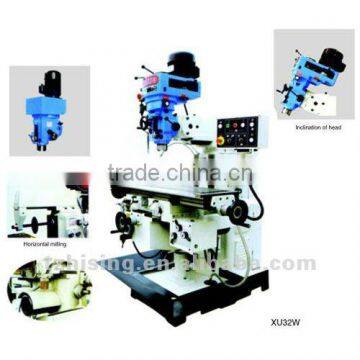

Photo of XU32W Universal Radial Milling Machine:
