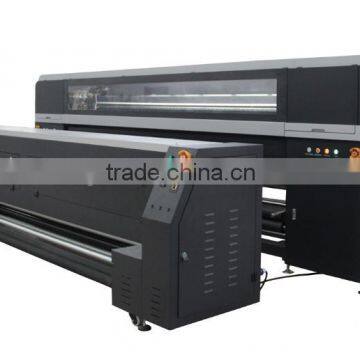

HiTex FH Industrial Textile Printer

Highlight Features:

1.The printer uses KM1024i high speed industrial printhead, favorable to meet industrial batch production.

2. Luxurious fashion design for professional high class customer, available direct print on Polyster textile materials and heat transfer paper printing.

3.Adopt rubber roller and pendulum tension adjustable system, which could meet various polyster materials.

4.Machine structure of Steel plate+ cnc digital processing technology guarantees the stability and parallelism of the transmission system, ensure the media feeding without wrinkle.

5.We use strong aluminum crossbeam, double linear guider, 750W Panasonic servo motor, world famous hard anodizing belt system, plus more than 2month overload ageing test of X-direction transmission system, to ensure the stability and durability of carriage movement.

6.Latest PCIE+ optical fiber data transmission system, amazing fast and stable data transmission.

7.Carriage height adjustable enables different thickness of media.

8.Heat transfer paper assembly parts OPTIONAL, all applications in one design saves costs and maximize your benefit.

9.Heat transfer printing system adopted Frequency adjustable media adsorption system.

10.Applications: Flag, Curtain, seat cushion, elastic fabric, textile wall covering. Fabric banner, heat transfer paper, T-shirt, etc…

BXS Fixation Unit:

1.Cabinet structure plus insulating layer design, energy saving and environmental.

2.Intelligent temperature control system, auto. select two heating tube to keep warm or open all of them to heat up..

3.Adopt PLC control system to achieve One-key-start function, very easy operation.

4.High-quality and high–durability motor, equipped with Feeding Speed Digital adjustable system.

5.With Media Tension Protection function, it can be auto. Restarted after sometime protected. Time is also available to reset.
