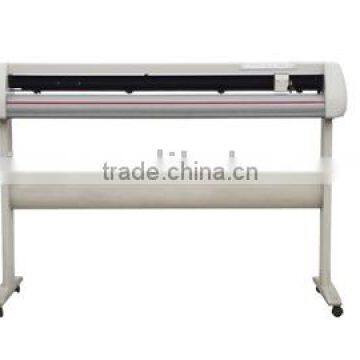

HC Series vinyl cutting plotter with optical eye

FOB Price

Negotiable / Set

5 Sets(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Anhui, China	Brand Name	LIYU
Model Number	HC1201	Voltage	AC220V/110V,50Hz~60Hz
Cache Capacity	8Mb	Paper Feed Width	1350mm
Cutter Pressure	10g-500G	Cutting Width	1250mm
Cutting Speed	600mm/s	Driver	Direct Output from CorelDraw

Professional model, with LCD display, Alumuni body and stand, strong and steady. 14 months warranty!

HC vinyl cutting plotter:

MODEL	HC751	HC901	HC1201
Drive Motor	Sepecial Stepper Motor
Media Size	860mm/2.82ft	1050mm/3.44ft	1350mm/4.43ft
Cutting Size	760mm/2.49ft	950mm/3.11ft	1250mm/4.10ft
Max.Cutting Speed	400mm/s
Cutting Force	10g-400g
LCD	With
Buffer capacity	8Mb
Resolution	0.025mm/step(0.001in./step)
Repeatability	0.1mm/0.0039in
Commands Set	HPGL or DMPL
Interfaces	Serial & USB
Positioning Mode	Origin Setup atr andom available
Copy Function	Up to 999 copies
Power	<100W
Power requirementst	AC220V/110V,50Hz~60Hz
Windows Driver	Direct Output from CorelDraw
Packing Size (WXDXH)	1.07X0.33X0.37m (3.51X1.08X1.21 ft)	1.29X0.33X0.37m (4.23X1.08X1.21 ft)	1.59X0.33X0.37m (5.21X1.08X1.21 ft)
G./Weight	20KG/45lbs	25KG/55lbs	39.0KG/86lbs
Environment	Temperature:035, 5%-95%Non-condensing
