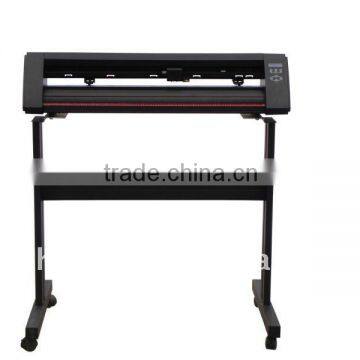

LIYU TC series Vinyl Cutter

FOB Price

Negotiable / Set

10 Sets(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Upgrade model, ContourCut Function optional! 64Mb super-memory, professional black body design as Graphtec! 14 months guarranty.

LIYU TC series Vinyl Cutter:

Technical Specifications

Model	TC631	TC801		TC1261
Cutting Size	630mm/2.07ft	800mm/2.62ft		1260mm/4.13ft
Media Size	710mm/2.33ft	880mm/2.89ft		1340mm/4.40ft
Max. Speed	800mm/s
Cutting Pressure	5-800g Digital Adjustable
LCD & Stand	Yes		Yes		Yes
Buffer Capacity	64Mb
Resolution	0.0125mm/step
Offset	0-1mm/m
Origin Adjustable	Yes
Repeatability	0.1mm
Power	AC220V(110V)±15% ,<160W
Language Format	HP-GL,DM-PL
Interface	Serial&USB2.0
Drive	Step Motor
Princh Roller	3pcs				4pcs

Specifications are subject to change without prior notice.

Highlight Features:

1. USB 2.0 interface, support hot-swappable, and is equipped with serial port to support the long-distance data transmission.

2. 64Mb super-memory achieves a long time Offline cutting, meanwhile, the data storage can be achieved even blackout.

3. New high-speed PIC remote control system, higher speed, lower noise.

4. Digital force & speed adjustable, direct and steady.

5. Humane design, allows to adjust cutting force and speed while working.

6. High-precision "steel barbed" axis, higher accuracy.

7. Auto. memory of blade force & Speed, adjustable at any time, easy to use.

8. Emergency stop & stop to return at any time to monitor the cutting quality, easy to operate.

9. Emergency stop & stop to return at any time to monitor the cutting quality, easy to operate.

10. Unique red cutting slot make it easier to operate.

11. Optional with Optical Eye to acheive the Contour Cut function.
