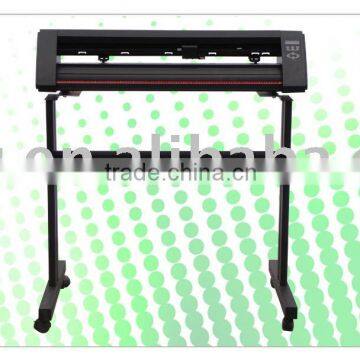

LIYU TC series Cutting Plotter

1. Contour Cut Function to be optional.

2. USB 2.0 interface, support hot-swappable, and is equipped with serial port to support the long-distance data transmission.

3. 64Mb super-memory achieves a long time Offline cutting, meanwhile, the data storage can be achieved even blackout.

4. New high-speed PIC remote control system, higher speed, lower noise.

5. Digital force & speed adjustable, direct and steady.

6. Humane design, allows to adjust cutting force and speed while working.

7. High-precision "steel barbed" axis, higher accuracy.

8. Auto. memory of blade force & Speed, adjustable at any time, easy to use.

9. Emergency stops & stops to return at any time to monitor the cutting quality, easy to operate.

10. Emergency stops & stops to return at any time to monitor the cutting quality, easy to operate.

11. Unique red cutting slot make it easier to operate.

MODEL

TC631

TC801

TC1061

TC1261

Drive Motor

Stepper Motor Control

Media Size

710mm/2.33ft

880mm/2.89ft

1120mm/3.67ft

1340mm/4.40ft

Cutting Size

630mm/2.07ft

800mm/2.62ft

1040mm/3.41ft

1260mm/4.13ft

 Speed

600mm/s

Pinch Roller

2

3

4

4

LCD

With

Buffer Capacity

64Mb

Resolution

0.0125mm/step(0.001in./step)

Repeatability

0.1mm/0.0039in

offset

01mm/00.04in

Interfaces

 USB2.0

Origin Adjustable

Yes

Copy Function

Up to 99 copies

Power

<120W

Commands Set

HPGL, DM--PL

Windows Driver

Direct Output from CorelDraw

Packing Size (WXDXH)

1.04X0.36X0.4m

(3.41X1.18X1.31ft)

1.19X0.36X0.4m      (3.90X1.18X1.31ft)

1.43X0.36X0.4m        (4.69X1.18X1.31ft)

1.64X0.36X0.4m       (5.38X1.18X1.31ft)

G./Weight

20KG/45lbs

25KG/55lbs

32KG/70.4lbs

39.0KG/86lbs

Environment

Temperature:035,  5%-95%Non-condensing
