Hydraulic drilling rig geological core drilling equipment XY-130
- Wuhan
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Diesel engine tralier mounted type XY-130 diamond mining machines for sale
-
XY-200 core drilling machine for mineral exploration
-
Full multipurpose geological survey drilling equipment deep core drilling rig
-
Diesel Power Type and New Condition mobile water well drill machine
-
Core Drilling Rig Type and Water Well Usage Hydraulic Water Well Drilling Machine
-
130M-200M crawler mounted water well drilling for sale
Product Details
| Place of Origin | Hubei, China | Brand Name | Shoukai | |
| Model Number | XY-130 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Feature XY-130 water well drilling rig price:
XY-130adopts oil hyduaulic automatic feeding system, big modulus gear transportation, wide rotary speed range and big torque light core drilling rig. It is suitable for geology survery exploration, road and building survey, jet grouting inspection hole, blast hole, small water well and micropiles hole drilling etc.
Description of XY-130
The characters of XY-130 core drilling rig are listed below:
1, it has oil hydraulic automatic feeding system, improved the drilling efficiency and reduce the labor intensity.
2, adopts ball clamp device rather than chuck and assembled with clamp positioning device to withdraw rods without turn off
3, It has the pressure gauge to monitor the situation inside the hole.
4, integrated hand shanks make operation easy.
5, compact structure, drilling rig and engine are installed on one chassis. small occupying area.
6, light weight, good disassembling, easy to transport, suitable for working on plain and mountain.
7, assembled with safety shield to protect the operator.
Main Technical Parameters of XY-130
1.Overall parameters | |
Drilling depth | 130m |
Maximum open hole diameter | 220mm |
End hole caliber | 75mm |
Diameter of drill rod | 42-60mm |
Drilling angle | 90~75 |
Matching power(Kw) | 13.2 |
Weight(without power) | 600/740 |
Dimension (m) | 2.4*0.8*1.4 |
2. Vertical shaft |
|
Rotating speed | 142, 285, 570 r/min |
Feeding stroke | 450mm |
3.Wintch |
|
Max. single line hoisting capacity | 2000Kg |
Rope diameter | φ9.3 |
Pull speed | 0.41-1.64(m/s) |
Roll capacity | 27m |
4.Mud pump |
|
Rate of flow | 95L/min |
MAX. pressure | 1.2MPa |
Time | 93s/min |
Diameter of water inlet tube | 51mm |
Diameter of water outlet tube | 32mm |

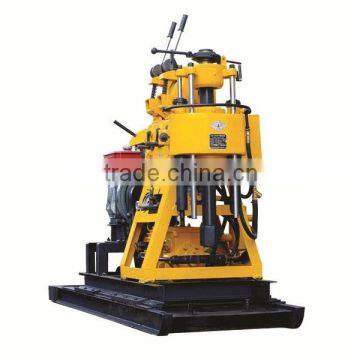

Product Picture of XY-130
Related HQ,NQ,BQ accessories and drill tools:
