Home > Products > core drilling rig > YT28 rock pneumatic drill
YT28 rock pneumatic drill
- Shanghai Wuhan
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
depth400m XY-42A water well drilling rig for sale
-
Depth600m XYX-3 water well core drilling equipment for sale
-
XY-130 water well 200m Electric motor or diesel engine drilling rig
-
YT28 pneumatic air jack leg drill
-
Depth180m small Borehole drilling machine XY-180
-
200m XY-200 water well portable drilling rig for sale
Product Details
Type | Core Drilling Rig | |||
Power Type | Diesel | Place of Origin | Hubei, China | |
Brand Name | Shoukai | Model Number | YT28 | |
Usage | Other, rock drill | Power(W) | 15Kw | |
Dimension(L*W*H) | 661mm (Length) | Weight | 26kg | |
Certification | ISO9001:2008 | Warranty | 12 Months | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
YT28 pneumatic drill

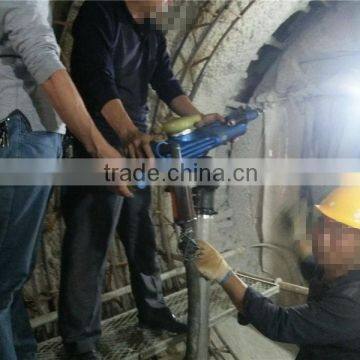

The YT28 rock drill machine is a kind of high efficiency air leg rock drill machinery.It is mainly used for blasting holes and other drilling works in a quarries, railway construction, water conservancy construction and defence project facility. It is suitable for drilling and blasting under various of rocks at any direction angles.Blast hole dia is 3-42mm,drill hole depth is 5 m.
This machine may match with Model FT160BD short air leg or Model FT160BC long air leg.
This machine has transparent surface of FY200B oil reservoir to regulate oil.
Weight :26KG Gross weight: 30kg Length :661mm
Cylinder diameter: 80mm Piston stroke: 60mm
Working pressure: 0.5-0.6Mpa Impact frequency: ≥34≥37HZ
Air consumption ≤55≤81L/s Gas hose diameter :25mm
Water hose diameter :13mm Drill bit diameter: diameter 40- diameter 50mm
Drilling speed : ≥250≥400≥470mm/min Rotation : ≥250≥260≥300L/min
Drilling torque: ≥15≥19≥23 N.m Impact energy : ≥44≥63≥70 J
Size of shanks (size across flats of hexagon length)22×108±1mm
FT160BC long air leg(long air leg)air leg length :1800mm
Propel stroke :1365mm Cylinder inner diameter :65mm
Weight≈16.9KG FY200B-FY200C grease injector
grease injector : 200ml Weight: 1.02KG
FT160BC air leg:
Length: 1800mm, Propulsion strock: 1365mm,
Cylinder inside diameter: 65mm Weight: 16.9kg Gross weight: 19kg
Shoukai drill rigs delivery to Australia, South Africa, the Southeast Asia and other countries all over the world.
We'll take pictures every time before we delivery the machines for you.
Hubei Shoukai Machinery Co., Ltd. is one of the biggest drilling rig manufacturer in China. Established in 2004, located in Huangjinshan Industrial Park, covering an area of over 40,000 square meters, our company specialized in R&D, manufacturing and marketing drilling rigs. We now have more than 300 varieties of six categories, with an annual production capacity of more than 10,000 sets. "Shoukai" brand down-the-hole drilling rigs series, anchoring drilling rig series, crawler DTH drilling carriage series, pneumatic motor series, water well drilling rig series and core drilling rig series are widely applied to water conservancy, mining, quarrying, photovoltaic pile, anti-floating, city foundation piles, transportation, construction, shipbuilding and other projects. Our sales network is all over the country, with more than 400 sales distributors and shops, so as to offer customers best pre-sales and after-sales service. Our product features light weight, fast speed, safe, reliable, simple structure and easy to use, exported to South Africa, North America, the Middle East and Southeast Asia, gain high praise both in China and abroad.
Why to choose us?
1. Our annual output 10000 sets fully meet customers' requirements.
2. We are the member of CCMA (China Construction Machinery Association).
3. We gained the title of National High and New Technology Enterprise by The Government.
4. Our Products has obtained ISO9001:2008 management system certification
5. We focus on development and earn several Utility Model Patent Certificates.
6. We are always try best to answer your pre-sales and after sales questions.
Welcome dear customers choose our Shoukai drilling machinery, we hope to offer you best service and establish a good cooperation with friends all over the world!
Our sales network is all over the country, with more than 400 sales distributors and shops, so as to offer customers best pre-sales and after-sales service.
Any question, please feel free to contact us anytime.
We'll try best to help you well as soon as possible.
Also welcome to visit our factory, we hope to offer you best service.
Please feel free to send us emails for pre-sale and after-sale information. Thank you.
