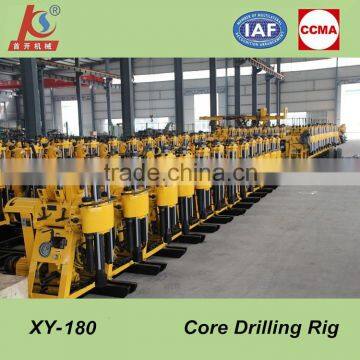

XY-180 hydraulic coring machine
- Shanghai Guangzhou
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
Condition | New | Type | Core Drilling Rig | |
Power Type | Diesel | Place of Origin | Hubei, China | |
Brand Name | Shoukai | Model Number | XY-180 | |
Usage | Ore | Voltage | None | |
Power(W) | 15Kw | Dimension(L*W*H) | 2.4-0.8-1.3m | |
Weight | 600Kg | Certification | ISO9001:2008 | |
Warranty | 6 Months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Feature of coring machine:
XY-180 adopts oil hyduaulic automatic feeding system, big modulus gear transportation, wide rotary speed range and big torque light coring machine. It is suitable for geology survery exploration, road and building survey, jet grouting inspection hole, blast hole, small water well and micropiles hole drilling etc.
The characters of XY-180 coring machine are listed below:
1, it has oil hydraulic automatic feeding system, improved the drilling efficiency and reduce the labor intensity.
2, adopts ball clamp device rather than chuck and assembled with clamp positioning device to withdraw rods without turn off
3, It has the pressure gauge to monitor the situation inside the hole.
4, integrated hand shanks make operation easy.
5, compact structure, drilling rig and engine are installed on one chassis. small occupying area.
6, light weight, good disassembling, easy to transport, suitable for working on plain and mountain.
7, assembled with safety shield to protect the operator.
Main specification
rated bore depth 180m (no more than 220m)
rated open hole diameter 75mm~220mm
spindle rotation speed 130, 300, 480, 730,830,1045 rpm
spindle stroke 450mm
spindle max. lifting force (single wire) 2100kg
drill rod diameter 42- 60mm
hole inclination angle 90~75°
drilling rig dimension 2.4*0.8*1.3
driling rig weight 620kg
diesel power 22KW
Related accessories and drill tools:
Shoukai coring machine delivery to Australia, South Africa, the Southeast Asia and other countries all over the world.
We'll take pictures every time before we delivery the machines for you.
Hubei Shoukai Machinery Co., Ltd. is one of the biggest drilling rig manufacturer in China. Established in 2004, located in Huangjinshan Industrial Park, covering an area of over 40,000 square meters, our company specialized in R&D, manufacturing and marketing drilling rigs. We now have more than 300 varieties of six categories, with an annual production capacity of more than 10,000 sets. "Shoukai" brand down-the-hole drilling rigs series, anchoring drilling rig series, crawler DTH drilling carriage series, pneumatic motor series, water well drilling rig series and core drilling rig series are widely applied to water conservancy, mining, quarrying, photovoltaic pile, anti-floating, city foundation piles, transportation, construction, shipbuilding and other projects. Our sales network is all over the country, with more than 400 sales distributors and shops, so as to offer customers best pre-sales and after-sales service. Our product features light weight, fast speed, safe, reliable, simple structure and easy to use, exported to South Africa, North America, the Middle East and Southeast Asia, gain high praise both in China and abroad.
Why to choose us?
1. Our annual output 10000 sets fully meet customers' requirements.
2. We are the member of CCMA (China Construction Machinery Association).
3. We gained the title of National High and New Technology Enterprise by The Government.
4. Our Products has obtained ISO9001:2008 management system certification
5. We focus on development and earn several Utility Model Patent Certificates.
6. We are always try best to answer your pre-sales and after sales questions.
Welcome dear customers choose our Shoukai drilling machinery, we hope to offer you best service and establish a good cooperation with friends all over the world!
Our sales network is all over the country, with more than 400 sales distributors and shops, so as to offer customers best pre-sales and after-sales service.
Any question, please feel free to contact us anytime.
We'll try best to help you well as soon as possible.
Also welcome to visit our factory, we hope to offer you best service.
We go in for international trade shows several times every year.
So as to meet friends all over the word, and offer you best service face to face.
Please feel free to send us emails for pre-sale and after-sale information. Thank you.
