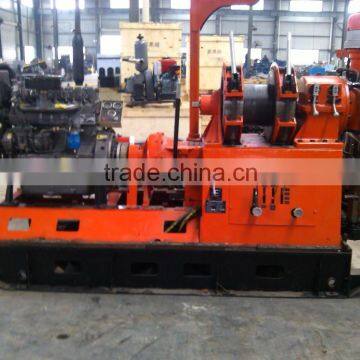

SK XY-4 skid mounted water drilling rig

Specifications

XY-4 is mainly applied to solid mineral deposit exploration, engineering geology and underground water exploration, shallow oil and natural gas exploration, dam grouting, tunnel exhaust, draining drill etc.

It is the first generation spindle diamond core drilling rig in China. It has advanced design, reasonable layout, compact structure, flexible operation. It is robust and reliable, good disassembling, easy to transport and convenient for repairation.

It is produced in accordance with JB/T6501-1992 standard.

Basic Specification

bore depth:                                        1000m with 43mm drill rod

                                                              700m with 50mm drill rod

Spindle

spindel rotation (driven by diesel) speed:

forward                                                135, 250, 355, 517, 415, 765, 1090, 1588 rpm

reverse                                                110, 238 rpm

spindle stroke                                    600mm

spindle ID                                           68mm

max. lifting force                                 72KN

max. pressuring force                       54KN

Hoist

lifting speed                                        1.09, 2.02, 2.89, 4.18 m/s

lifting force (single wire)                   30KN

Moving device

oil cylinder stroke                              400mm

gap between rig and hole                250mm

Power

diesel                                                  37Kw, 2000 rpm

electric motor                                    30Kw, 1470 rpm

Weight                                              1500Kg

Dimension                                        2640 x 1100 x 1750mm
