Home > Products > core drilling rig > SKGXY-1C mini water well drilling rig

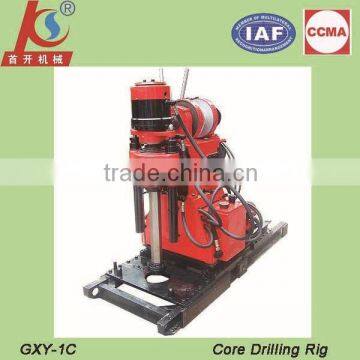

SKGXY-1C mini water well drilling rig
- Shanghai Wuhan
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
Condition | New | Type | Rotary Drilling Rig | |
Power Type | Diesel | Place of Origin | Hubei, China | |
Brand Name | shoukai | Model Number | GXY-1C | |
Usage | Water Well | Power(W) | 11Kw | |
Dimension(L*W*H) | 1800 x 1200 x 1500mm | Weight | 650Kg | |
Certification | ISO | Warranty | 6-month | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Water well drilling
1, It is used in engineering geology exploration, survey and exploration for soild ore deposit, blast hole and inspection hole of various concret structures.
2, It can use cemented carbide or auger diamond drill bit in accordance with different strata.
3, Features large input power, large output torque and strong drilling capacity.
4, With hydraulic feeding structure.
5, Adopts ball chuck or hydraulic clamp chuck.
6, Adopts hydraulic control device to move away from hole, improve working efficiency.
7, High speed rig model is suitable for diamond bit drilling to very hard strata.
8, Can be mounted on trailer or crawler featuring strong mobility.
9, Compact structure, small size, light weight and convenient assembly and dissassembly.
10, Suitable working in hilly land or mountain areas.
bore diameter | 76, 46mm |
bore depth | 160, 200m |
power head output rotation speed | forward: 93~1010 r/min 4 speed |
reverse: 52 r/min | |
stroke | 500mm |
max. pressure force | 15KN |
max. lifting force | 25KN |
drill rod clamping way | hydraulic clamping chuck |
drilling hole exposure way | power head hydraulic control backward |
hoist lifting force | 15KN |
lifting speed | 0.22, 0.95, 1.95, 5.3 m/sec |
diesel model and power | S1100M, 11KW |
electric motor model and power | Y160M-4, 11KW |
overall size | 1800 x 1200 x 1500mm |
weight | 650Kg |
Hubei Shoukai Machinery Co., Ltd. is one of the biggest drilling rig manufacturer in China. Established in 2004, located in Huangjinshan Industrial Park, covering an area of over 40,000 square meters, our company specialized in R&D, manufacturing and marketing drilling rigs. We now have more than 300 varieties of six categories, with an annual production capacity of more than 10,000 sets. "Shoukai" brand down-the-hole drilling rigs series, anchoring drilling rig series, crawler DTH drilling carriage series, pneumatic motor series, water well drilling rig series and core drilling rig series are widely applied to water conservancy, mining, quarrying, photovoltaic pile, anti-floating, city foundation piles, transportation, construction, shipbuilding and other projects. Our sales network is all over the country, with more than 400 sales distributors and shops, so as to offer customers best pre-sales and after-sales service. Our product features light weight, fast speed, safe, reliable, simple structure and easy to use, exported to South Africa, North America, the Middle East and Southeast Asia, gain high praise both in China and abroad.
Why to choose us?
1. Our annual output 10000 sets fully meet customers' requirements.
2. We are the member of CCMA (China Construction Machinery Association).
3. We gained the title of National High and New Technology Enterprise by The Government.
4. Our Products has obtained ISO9001:2008 management system certification
5. We focus on development and earn several Utility Model Patent Certificates.
6. We are always try best to answer your pre-sales and after sales questions.
Welcome dear customers choose our Shoukai drilling machinery, we hope to offer you best service and establish a good cooperation with friends all over the world!
