water well drilling mahcine/core drilling machine/1000m borehole drilling machine
- Shanghai Wuhan
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
used for blasting holes core water well drill rig portable with 180m
-
Chinese Supplier XY-1A elctric and diesel power Core Drilling Rig for Water Well Drilling
-
Core Drilling Rig XY-42A water well drilling machine
-
light weight hydraulic core small grouting hole water well drilling rig XY-200
-
Diamond water well Core Drilling Rig XY-44A
-
XYD-3 Hydraulic system Crawler mounted self propelled core drilling rig
Product Details
Place of Origin | Hubei, China | Brand Name | Shoukai | |
Model Number | XY-4 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Specifications
Core drilling rig XY-4 is mainly adapted to engineering geology exploration, survey and exploration of solid ore deposit, etc.
XY-4 is mainly applied to solid mineral deposit exploration, engineering geology and underground water exploration, shallow oil and natural gas exploration, dam grouting, tunnel exhaust, draining drill etc.
It is the first generation spindle diamond core drilling rig in China. It has advanced design, reasonable layout, compact structure, flexible operation. It is robust and reliable, good disassembling, easy to transport and convenient for repairation.
It is produced in accordance with JB/T6501-1992 standard.
Basic Specification
bore depth: 1000m with 43mm drill rod
700m with 50mm drill rod
Spindle
spindel rotation (driven by diesel) speed:
forward 135, 250, 355, 517, 415, 765, 1090, 1588 rpm
reverse 110, 238 rpm
spindle stroke 600mm
spindle ID 68mm
max. lifting force 72KN
max. pressuring force 54KN
Hoist
lifting speed 1.09, 2.02, 2.89, 4.18 m/s
lifting force (single wire) 30KN
Moving device
oil cylinder stroke 400mm
gap between rig and hole 250mm
Power
diesel 37Kw, 2000 rpm
electric motor 30Kw, 1470 rpm
Weight 1500Kg
Dimension 2640 x 1100 x 1750mm

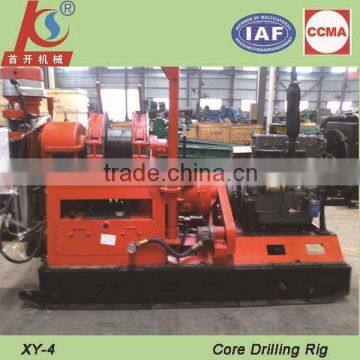

Product Picture
"Shoukai " Brand Drilling Rig exported to Australia, South Africa, Vietnam, Philippines and other countries in the world.
Hubei Shoukai Machinery Co., Ltd. is one of the biggest drilling rig manufacturer in China. Established in 2004, located in Huangjinshan Industrial Park,Huangshi city Hubei province, covering an area of over 40,000 square meters,our company has grown into a set of welding product ,machiningand assembly for the integration of large-scale ,professional drilling equipment manufacturing enterprises .Now we have more than 300 varieties of six categories, with an annual production capacity of more than 10,000 sets. "Shoukai" brand down-the-hole drilling rigs series, anchoring drilling rig series, crawler DTH drilling carriage series, pneumatic motor series, water well drilling rig series and core drilling rig series are widely applied to water conservancy, mining, quarrying, photovoltaic pile, anti-floating, city foundation piles, transportation, construction, shipbuilding and other projects. Our product features light weight, fast speed, safe, reliable, simple structure and easy to use.Our sales network is all over the country, with more than 400 sales distributors and shops, so as to offer customers best pre-sales and after-sales service. exported to South Africa, North America, the Middle East and Southeast Asia, gain high praise both in China and abroad.
Why to choose us?
1. Our annual output 10000 sets fully meet customers' requirements.
2. We are the member of CCMA (China Construction Machinery Association).
3. We gained the title of National High and New Technology Enterprise by The Government.
4. Our Products has obtained ISO9001:2008 management system certification
5. Our company has CNC cutting machine, CNC boring machine, CNC machine tools and various manufacturing equipment, has strong ability of new product development and manufacturing.
6.We focus on development and earn several Utility Model Patent Certificates.
7. We are always try best to answer your pre-sales and after sales questions.
Welcome dear customers choose our Shoukai drilling machinery, we hope to offer you best service and establish a good cooperation with friends all over the world!
