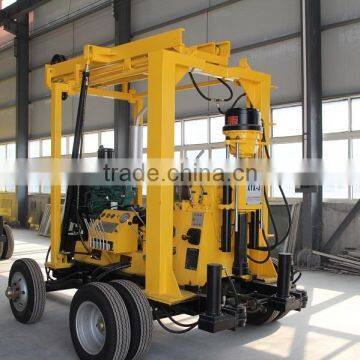

XYX-3 diamond drilling Trailer-mounted drilling machine
- Shanghai Guangzhou
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
Place of Origin | Hubei, China | Brand Name | Shoukai | |
Model Number | XYX-3 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Feature of core drill:
XY-3 series drilling rig is a shallow/medium depth hole spindle type core drill. The machine is mainly used for diamond drilling and able to meet the needs of various drilling technology requests.It adpots electric motor and diesel engine as power unit. The rig owns simple structure and is easy to operate.
The characters of XYX-3 core drill are listed below:
1,The rig is equipped with latest MW525 heavy trucj transmission, which owns 10 forward gears and 2 reverse gears. The transmission ensures enough reasonable speed range, and can satisfy needs of different drilling rig technology.
2, The rig`s spindle inner diameter is 96mm, driven by mechanical system, can output big torque. The winch can lift max.3000kg with single line.
3,Hydraulic system controls the feeding pressure and speed of the spindle. The machine is equipped with pressure meter so that the workers can grasp hole situation.
XYX-3 series core drilling rig main technical parameters
Tech parameter
| Model | XYX-3 |
Drilling depth(m) | 600 | |
Open hole dia(mm) | 325 | |
End hole dia(mm) | 75 | |
Drill angle(°) | 90-75 | |
Matching power(kw) | YN27GBZ/39 | |
Weight without power(kg) | 3600 | |
Dimension(m) | 2.9*2.56*3.3 | |
Spindle | Speed(r/min) | 32-1057 |
Stroke(mm) | 600 | |
Winch | Max pull force(kg) | 3000 |
Pull speed(m/s) | 0.3-1.9 | |
Rope dia(mm) | φ12.5 | |
Roll capacity(m) | 65 | |
Drill Mast | Rated load(ton) | 18 |
Height(m) | 6.5 |
Product Picture
"Shoukai " Brand Drilling Rig exported to Australia, South Africa, Vietnam, Philippines and other countries in the world.
Hubei Shoukai Machinery Co., Ltd. is one of the biggest drilling rig manufacturer in China. Established in 2004, located in Huangjinshan Industrial Park,Huangshi city Hubei province, covering an area of over 40,000 square meters,our company has grown into a set of welding product ,machiningand assembly for the integration of large-scale ,professional drilling equipment manufacturing enterprises .Now we have more than 300 varieties of six categories, with an annual production capacity of more than 10,000 sets. "Shoukai" brand down-the-hole drilling rigs series, anchoring drilling rig series, crawler DTH drilling carriage series, pneumatic motor series, water well drilling rig series and core drilling rig series are widely applied to water conservancy, mining, quarrying, photovoltaic pile, anti-floating, city foundation piles, transportation, construction, shipbuilding and other projects. Our product features light weight, fast speed, safe, reliable, simple structure and easy to use.Our sales network is all over the country, with more than 400 sales distributors and shops, so as to offer customers best pre-sales and after-sales service. exported to South Africa, North America, the Middle East and Southeast Asia, gain high praise both in China and abroad.
Why to choose us?
1. Our annual output 10000 sets fully meet customers' requirements.
2. We are the member of CCMA (China Construction Machinery Association).
3. We gained the title of National High and New Technology Enterprise by The Government.
4. Our Products has obtained ISO9001:2008 management system certification
5. Our company has CNC cutting machine, CNC boring machine, CNC machine tools and various manufacturing equipment, has strong ability of new product development and manufacturing.
6.We focus on development and earn several Utility Model Patent Certificates.
7. We are always try best to answer your pre-sales and after sales questions.
Welcome dear customers choose our Shoukai drilling machinery, we hope to offer you best service and establish a good cooperation with friends all over the world!
