Protector, Temperature protector, Thermostat switch, HC06F
US$ 0.79 - 0.81
/ Piece
100 Pieces(Min. Order)
- Shanghai
- T/T Credit Card
You May Like
-
Protector, Temperature protector, Thermostat switch, Pet pad protector
-
Protector, Thermal protector, 17AM-P
-
6AP, 3MP, 5AP, window lift motor thermal protector, thermal motor protector, Window motor protector
-
Protector, Over temperature protector, 17AM
-
6AP, Motor protector, Window motor protector, skylight motor protector
-
Protector, thermal protector, TB05
Product Details
| Place of Origin | Jiangsu, China | Brand Name | HCET | |
| Model Number | HC06F |
Product Description
Product Description

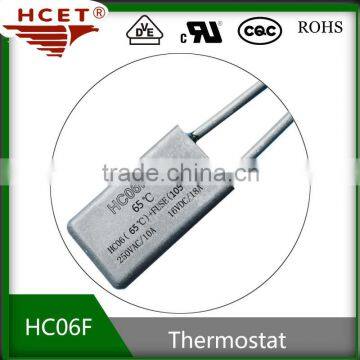

HC06F Thermal Protector
The HC06F Thermal protector is a combination of thermal protector and thermal cut off. It has double protections. Safer and more reliable.
Special Features:
● Small size, long life and high reliability .
● Connected a cut off in series to save process in final applications.
● 100% Snap Action.
● Both temperature and current sensitive.
● Sealed housing, water proof.
●The type of cut off is optional and customized.
Electrical Characteristics:
● 20amps/16 volts DC
● 15amps/250 volts AC
● 20amps/125 volts AC
Technical Parameters:
● Available with nominal calibration temperatures from 50℃ to 180℃.
● Tolerance Code: ±3℃, ±5℃
Main applications are as follows:
● Pet pad
● Heating pad
● Electrical blanket
The HC06F Thermal protector is a combination of thermal protector and thermal cut off. It has double protections. Safer and more reliable.
Special Features:
● Small size, long life and high reliability .
● Connected a cut off in series to save process in final applications.
● 100% Snap Action.
● Both temperature and current sensitive.
● Sealed housing, water proof.
●The type of cut off is optional and customized.
Electrical Characteristics:
● 20amps/16 volts DC
● 15amps/250 volts AC
● 20amps/125 volts AC
Technical Parameters:
● Available with nominal calibration temperatures from 50℃ to 180℃.
● Tolerance Code: ±3℃, ±5℃
Main applications are as follows:
● Pet pad
● Heating pad
● Electrical blanket
Detailed Images
Packing & Delivery
Contact Us
- Nanjing Haichuan Electronic Co., Ltd.
- Contact nameMichael Yong Chat Now
- Phone0086-25-56230008
- AddressNo.4Yangtze River Bridge,Economic Development Zone, Liuhe District, Nanjing, Jiangsu
