3MP, Motor protector, Agitator motor protector
- Shanghai
- T/T Credit Card
You May Like
-
Thermal protector, Temperature protector, overload protector
-
Motor protector, Temperature protector, used in window motor, skylight, aerial motor
-
Motor protector, Temperature protector, Protector, used in skylight, aerial motor
-
3MP, Motor protector, Temperature protector
-
HC02, Motor protector, Temperature protector, used in windshield wipers motor
-
8AM, Motor protector, Protector, Temperature protector, Ballast protection, Split-phase motors protector
Product Details
| Place of Origin | Jiangsu, China | Brand Name | HCET | |
| Model Number | 3MP | Type | Other, Auto parts | |
| Poles Number | 1 |
Product Description

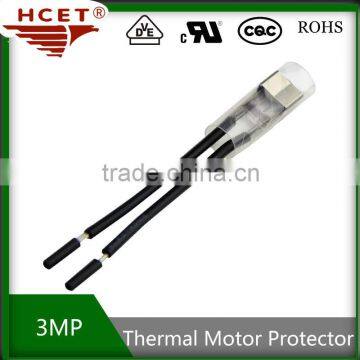

3MP Series Self-hold Motor Protector:
3MP (Self-hold) current and overload protector with thermal protection and control
Current overload time exactly, reset after cut powerSpecial Features:
● Small size,(with hand-reset function)；
● Protected with overload, plugging turn, or short circuit flow well；
● According to the customer request, setting overload trip current, max 45A；
● Accurate trip off time can prevent motor from overheating(4~10s)；
● Fixed in coil or out ,make the process of motor more flexible；
● Each type of parts strictly implemented European ROHS environmental standards；
● Wires are optional and customized；Electrical ratings: ● 30A/15V DC● 15A/30V DC
● 28A/250V AC ● 18A/125V ACTechnical parameters:
● Action temperature range: 30℃-180℃. Temperature is optional and customized.
● Temperature tolerance:±5℃,±8℃,±10℃.● Trip off current range: 1-45A.
● Trip off time: 4-10s.Applications:● Cleaner, Pulverizer , Agitator, Mower.
● Electric power tool, Snow-sweeper
● Washing-machine, Home appliance, Heater element
