Home > Products > Motor Protector > HC02,Overload protector,Window motor protector
HC02,Overload protector,Window motor protector
US$ 0.30 - 0.32
/ Piece
100 Pieces(Min. Order)
- Shanghai
- T/T Credit Card
You May Like
-
3MP, Motor protector, Agitator motor protector
-
Thermal protector, Temperature protector, overload protector
-
Motor protector, Temperature protector, used in window motor, skylight, aerial motor
-
Motor protector, Temperature protector, Protector, used in skylight, aerial motor
-
3MP, Motor protector, Temperature protector
-
HC02, Motor protector, Temperature protector, used in windshield wipers motor
Product Details
| Place of Origin | Jiangsu, China | Brand Name | HCET | |
| Model Number | HC02-A | Type | Other, Auto parts | |
| Poles Number | 1 |
Product Description
Product Description

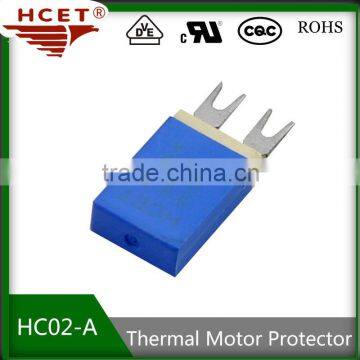

HC02 Series Over-current Protector
HC02 series is a precise protector with plastic housing. It is sensitive to both temperature and current and can protect motor or transformer from over-heating or loading effectively
Special Features:● Small size, long life and high reliability;
● Protected with overload, plugging turn, or short circuit flow well；
● According to the customer request, setting overload trip current, max 30A；
● Accurate trip off time can prevent motor from overheating(4~10s)；
● Each type of parts strictly implemented European ROHS environmental standards；
● Terminals are optional and customized.Electrical Characteristics:
● 1~30amps/15volts DC● 1~15amps/30volts DC● 1~30amps/250volts AC
● 1~30amps/125volts ACTechnical Parameters:
● Action temperature from 60℃~180℃, Every 5 ℃ a specification. Temperature is optional and customized.
● Temperature tolerance:±8℃,±10℃.● Trip off current range: 1~30A.
● Trip off time: 4~10s.Main Applications are as follows:
● Window motor , Skylight and aerial motor.
● Engine of the front and rear windshield wipers, slide door start and regulator engine.
Special Features:● Small size, long life and high reliability;
● Protected with overload, plugging turn, or short circuit flow well；
● According to the customer request, setting overload trip current, max 30A；
● Accurate trip off time can prevent motor from overheating(4~10s)；
● Each type of parts strictly implemented European ROHS environmental standards；
● Terminals are optional and customized.Electrical Characteristics:
● 1~30amps/15volts DC● 1~15amps/30volts DC● 1~30amps/250volts AC
● 1~30amps/125volts ACTechnical Parameters:
● Action temperature from 60℃~180℃, Every 5 ℃ a specification. Temperature is optional and customized.
● Temperature tolerance:±8℃,±10℃.● Trip off current range: 1~30A.
● Trip off time: 4~10s.Main Applications are as follows:
● Window motor , Skylight and aerial motor.
● Engine of the front and rear windshield wipers, slide door start and regulator engine.
