50*350mm High Temperature AC Cross Flow Fan 220v/240v

FOB Price

US$ 8 - 18 / Piece

1000 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Electric Current Type	AC	Blade Material	Other, Stainless Steel, Cast Iron
Mounting	Other, cooling fan	Place of Origin	Guangdong, China
Brand Name	OEM/ODM	Model Number	MX50350CPM22
Power	21W	Voltage	220/240V
Air Volume	2.7/2.9m³ /mim	Speed	2550/2800RPM
Certification	CE, ROHS	After-sales Service Provided	No overseas service provided

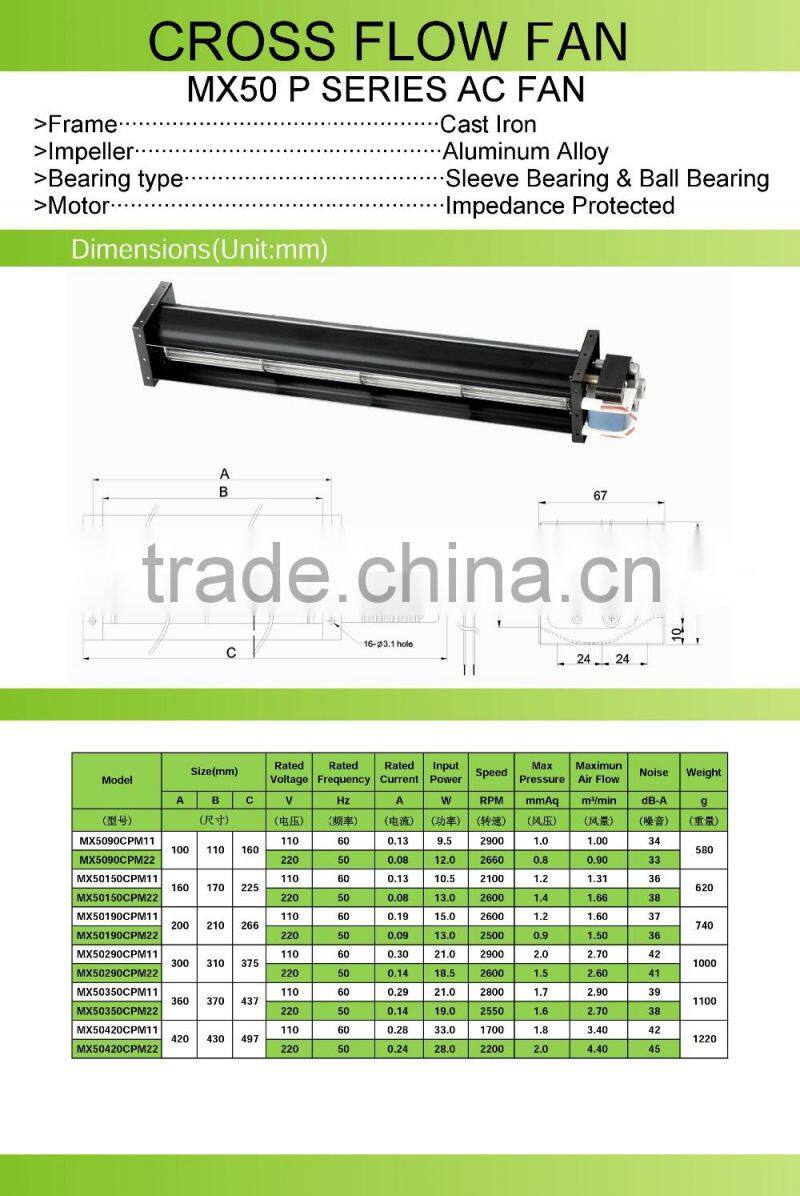

50*350mm High Temperature AC Cross Flow Fan 220v/240v

Product Description

1. Purpose:

It is applied in air cleaner,elevator,humidifier , laboratory,workshop,dehumidifier,projector and copy machine, etc..

2. Expeceed Life:
Ball Bearing 50,000 hours
Sleeve Bearing 30,000hours

3. ELECTRICAL CHARACTERISTICS:

ALL MEASUREMENTS PERFORMED AT25~30℃ ROOM TEMPERATURE

& 50~80%R.H.UNLESS OTHERWISE SECIFIED.

1	RATED VOLTAGE	VOLTS	V	220 VAC
2	OPERATION VOLTAGE	VOLTS	V	160-242
3	FREQUENCY	Hz	Hz	50
4	NPUT CURRENT	AMP	A	0.14A±10%	AT RATED VOLTAGE
5	INPUT POWER	WATTS	W	19W ±10%	AT RATED VOLTAGE
6	ROTATION SPEED	RPM	RPM	2550±10%
7	ACOUSTICAL NOISE(AVG)	dB(A)	dB(A)	≤38	DETAILS SEE ATTACHED PAGE.
8	MAX .AIR-FLOW	m³ /mim	Q	2.7	TWO-CHAMBER METHODS DEAILS SEE ATTACHED PAGE.
9	MAX . AIR-PRESSURE	mmAq	P	1.6	TWO-CHAMBER METHODS DEAILS SEE ATTACHED PAGE.
10	INSULATION RESISTANCE	MEG. OHM	MΩ	>20 MΩ	BETWEEN FRAME AND TERMINAL
11	DIELECTRIC STRENGTH			1800V,3S,1MA	BETWEEN FRAME AND TERMINAL.
12	ROTARY DIRECTION			CC W
13	INSULATION CLASS			CLASS E
14	LIFE EXPECTANC			15000 Hours at 25℃/65%RH

4. ENVIRONMENTAL:

4-1.OPERATING TEMPERATURE----------------------- -20 TO+50℃(CLASS E)

4-2.STORAGE TEMPERATURE ------------------------- -30 TO+75℃

4-3.OPERATING HOMIDITY-----------------------------------RH20%-80%

Packaging & Shipping

Our Services

Shenzhen Topfan Technology Development Co., Ltd.: Contact nametopfan- xiangzhi du
Chat Now; Phone86-0755-26070926; Address23A2, Suhao Building, Nanxin Road, Nanshan District, Shenzhen, China, Shenzhen, Guangdong
