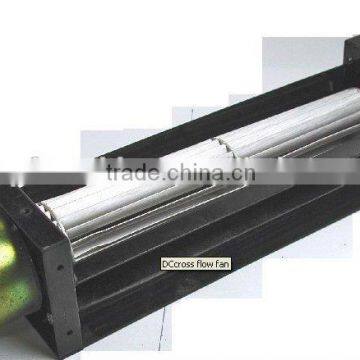

Elevator Cross Flow Fan / 120V AC Tangential Fan 90MM 190MM 290MM

FOB Price

US$ 8 - 15 / Piece

500 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Electric Current Type	AC	Blade Material	Stainless Steel
Mounting	Other, cooling fan	Place of Origin	Guangdong, China
Brand Name	OEM/ODM	Model Number	LRE30190A22
Power	13W	Voltage	110-120V , 220-240V
Air Volume	28CFM	Speed	2700RPM
Certification	CCC, CE, ROHS, UL, Other, UL, CE, CCC, CE, ROHS, UL, ISO9000, UL ,CE, RoHS, TUV	After-sales Service Provided	Overseas third-party support available

Elevator Cross Flow Fan / 120V AC Tangential Fan 90MM 190MM 290MM

1. Purpose:

It is applied in air cleaner,elevator,humidifier , laboratory,workshop,dehumidifier,projector and copy machine, etc..

2. Expeceed Life:

Ball Bearing 50,000 hours
Sleeve Bearing 30,000hours

3. ELECTRICAL CHARACTERISTICS:

ALL MEASUREMENTS PERFORMED AT25~30℃ ROOM TEMPERATURE

& 50~80%R.H.UNLESS OTHERWISE SECIFIED.

1	RATED VOLTAGE	VOLTS	V	220 VAC
2	OPERATION VOLTAGE	VOLTS	V	160-242
3	FREQUENCY	Hz	Hz	50
4	NPUT CURRENT	AMP	A	0.13A±10%	AT RATED VOLTAGE
5	INPUT POWER	WATTS	W	13W ±10%	AT RATED VOLTAGE
6	ROTATION SPEED	RPM	RPM	2700±10%
7	ACOUSTICAL NOISE(AVG)	dB(A)	dB(A)	≤32	DETAILS SEE ATTACHED PAGE.
8	MAX .AIR-FLOW	CFM	Q	28	TWO-CHAMBER METHODS DEAILS SEE ATTACHED PAGE.
9	MAX . AIR-PRESSURE	mmH₂O	P	1.0	TWO-CHAMBER METHODS DEAILS SEE ATTACHED PAGE.
10	INSULATION RESISTANCE	MEG. OHM	MΩ	>20 MΩ	BETWEEN FRAME AND TERMINAL
11	DIELECTRIC STRENGTH			1800V,3S,1MA	BETWEEN FRAME AND TERMINAL.
12	ROTARY DIRECTION			CC W
13	INSULATION CLASS			CLASS E
14	LIFE EXPECTANC			15000 Hours at 25℃/65%RH

4. ENVIRONMENTAL:

4-1.OPERATING TEMPERATURE----------------------- -20 TO+50℃(CLASS E)

4-2.STORAGE TEMPERATURE ------------------------- -30 TO+75℃

4-3.OPERATING HOMIDITY-----------------------------------RH20%-80%

5. Specifications:

6: Dimensions (Unit:mm)
