Home > Products > Cross flow fan > 230v industrial equpiment cross flow fan / fridge cooling fan 30*90mm

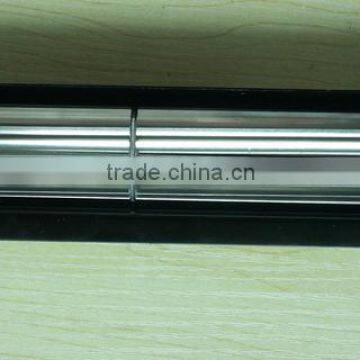

230v industrial equpiment cross flow fan / fridge cooling fan 30*90mm
USD $8 - $15
/ Piece
500 Pieces(Min.Order)
- 20000 Piece / Pieces per Month
- shenzhen
You May Like
-
190MM Gnenral Industrial Equipment Ventilation Fan for Fridge
-
110VAC Equipment cross flow fan 30*290MM/AC industrial cross cooler fan
-
7.5 Inch Air Cleaner Cross Flow Fan 120V AC / 190MM Tangential Air Flow Fan
-
360mm 220v ac cross flow fan 60*360mm
-
190MM Gnenral Industrial Equipment Ventilation Fan /Cross Flow Fan
-
190MM Air Cleaner Cross Flow Fan 120V AC / Tangential Air Flow Fan
Product Details
| Electric Current Type | AC | Blade Material | Stainless Steel | |
| Mounting | Other, cooling fan | Place of Origin | Guangdong, China | |
| Brand Name | OEM/ODM | Model Number | LRE30090A11 | |
| Power | 7/8w | Voltage | 110/120v | |
| Air Volume | 14.2CFM | Speed | 3200RPM | |
| Certification | CCC, CE, ROHS, UL, Other, UL, CE, CCC, CE, ROHS, UL, ISO9000, UL ,CE, RoHS, TUV | After-sales Service Provided | Overseas third-party support available |
Product Description
230v industrial equpiment cross flow fan / fridge cooling fan 30*90mm
General Specifications:
Expected Life:
Ball Bearing 50,000 hours(40°c)
Specifications:
| Model | Size(mm) | Beaing system | Rated voltage (v) | Freq (HZ) | Current (Amp) | Rated Input Power Watt | Speed (rpm) | Air Flow (m3/mim) | Max Static Pressure (Inch-H2o) | Noise Leve (dB-A) | Weight (g) | |||
| A | B | C | ||||||||||||
| LRE30090A11 | 98 | 108 | 154 | Ball | 110/120 | 50/60 | 0.08 | 7 | 3200 | 0.4 | 1.1 | 32 | 390 | |
| LRE30090A22 | Ball | 220/240 | 50/60 | 0.06 | 8.5 | 2700 | 0.3 | 0.8 | 30 | |||||
| LRE30150A11 | 160 | 170 | 222 | Ball | 110/120 | 50/60 | 0.11 | 8.5 | 3200 | 0.8 | 1.2 | 35 | 520 | |
| LRE30150A22 | Ball | 220/240 | 50/60 | 0.07 | 10.5 | 2700 | 0.6 | 0.9 | 32 | |||||
| LRE30190A11 | 198 | 208 | 260 | Ball | 110/120 | 50/60 | 0.11 | 9 | 3150 | 0.9 | 1.4 | 36 | 540 | |
| LRE30190A22 | Ball | 220/240 | 50/60 | 0.07 | 11 | 2700 | 0.8 | 1 | 32 | |||||
| LRE30290A11 | 300 | 310 | 366 | Ball | 110/120 | 50/60 | 0.17 | 13.5 | 3150 | 1.6 | 1.6 | 37 | 670 | |
| LRE30290A22 | Ball | 220/240 | 50/60 | 0.08 | 12.5 | 2700 | 1.4 | 1.1 | 34 | |||||
