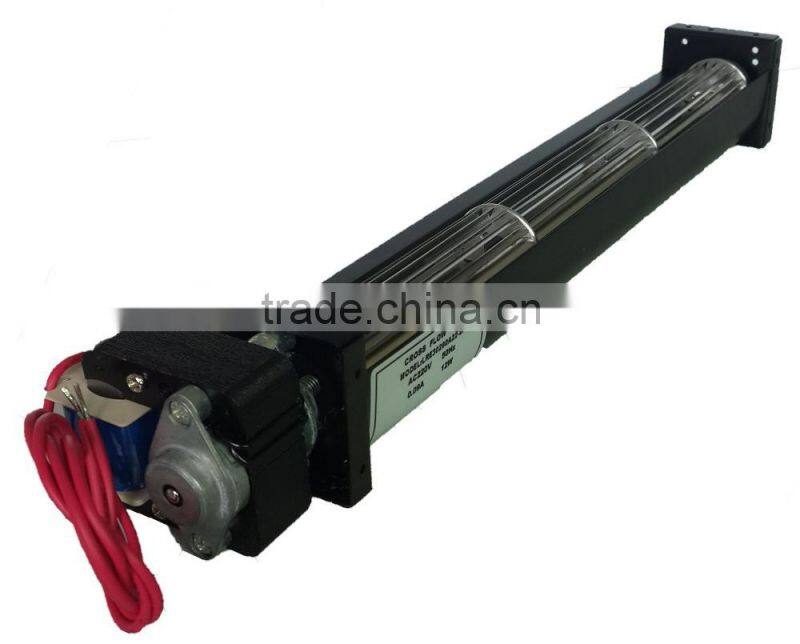

360mm 220v AC Cross Flow Fan for Industrial Equipment
US$ 8 - 18
/ Piece
1000 Pieces(Min. Order)
- shenzhen
You May Like
-
Temperature Controlled Fan for Industrial Equipment 120mm - 420MM 220/240v
-
DC High Temperature Fridge Fan 30*150mm
-
120mm Cross Flow Ventilation Fan / High Temperature
-
High Temperature 120mm 220/240v Industrial Fan
-
230V AC Tangential Cooling Fan/Cross Flow Cooling Fan 220/240v 50*420mm
-
New AC Double Cross Cooling Fans 760*99*98mm
Product Details
| Electric Current Type | AC | Blade Material | Stainless Steel | |
| Mounting | Other, cross flow fan | Place of Origin | Guangdong, China | |
| Brand Name | OEM/ODM | Model Number | LRE60360A22 | |
| Power | 35W | Voltage | 220/240V | |
| Air Volume | 166CFM | Speed | 2000RPM | |
| Certification | CCC, CE, ROHS, UL, Other, UL, CE, CCC, CE, ROHS, UL, ISO9000, UL ,CE, RoHS, TUV | After-sales Service Provided | No overseas service provided |
Product Description
360mm 220v AC Cross Flow Fan for Industrial Equipment
Specification:

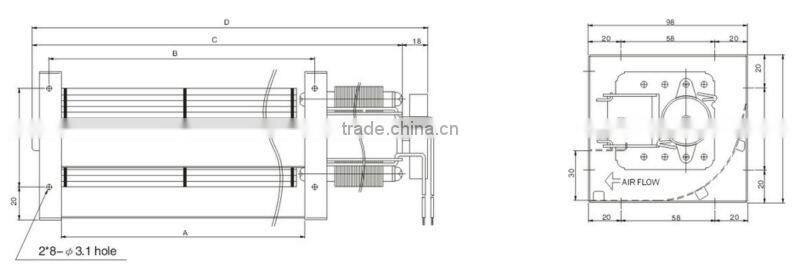

| Model | Size(mm) | Beaing system | Rated voltage (v) | Freq (HZ) | Current (Amp) | Rated Input Power Watt | Speed (rpm) | Static Pressure mmAq | Max Static Pressure (m3/mim) | Noise Leve (dB-A) | Weight (g) | |||
| A | B | C | ||||||||||||
| LRE60120A11 | 123 | 138 | 191 | Ball | 110/120 | 50/60 | 0.23 | 18 | 2350 | 2.7 | 1.7 | 43 | 1200 | |
| LRE60120A22 | Ball | 220/240 | 50/60 | 0.12 | 18 | 2350 | 2.5 | 1.7 | 43 | |||||
| LRE60180A11 | 184 | 199 | 262 | Ball | 110/120 | 50/60 | 0.58 | 41 | 2500 | 4.8 | 2.9 | 47 | 1350 | |
| LRE60180A22 | Ball | 220/240 | 50/60 | 0.26 | 32 | 2500 | 4 | 2.9 | 47 | |||||
| LRE60240A11 | 245 | 260 | 323 | Ball | 110/120 | 50/60 | 0.59 | 40 | 2100 | 3.7 | 2.9 | 44 | 1400 | |
| LRE60240A22 | Ball | 220/240 | 50/60 | 0.27 | 35 | 2200 | 4 | 3.5 | 46 | |||||
| LRE60300A11 | 306 | 321 | 384 | Ball | 110/120 | 50/60 | 0.60 | 41 | 2000 | 3.4 | 3.7 | 44 | 1500 | |
| LRE60300A22 | Ball | 220/240 | 50/60 | 0.30 | 41 | 2100 | 3.6 | 4 | 46 | |||||
| LRE60360A11 | 368 | 383 | 446 | Ball | 110/120 | 50/60 | 0.61 | 42 | 1700 | 2.8 | 3.9 | 40 | 1600 | |
| LRE60360A22 | Ball | 220/240 | 50/60 | 0.31 | 42 | 2000 | 3.5 | 4.7 | 46 | |||||
| LRE60420A11 | 429 | 444 | 507 | Ball | 110/120 | 50/60 | 0.62 | 42 | 1600 | 2.5 | 4.8 | 40 | 1650 | |
| LRE60420A22 | Ball | 220/240 | 50/60 | 0.31 | 42 | 1800 | 2.9 | 5.3 | 45 | |||||
