Home > Products > Cross flow fan > High Temperature Resistant 30mm Diameter Cross Flow Fan 220v AC

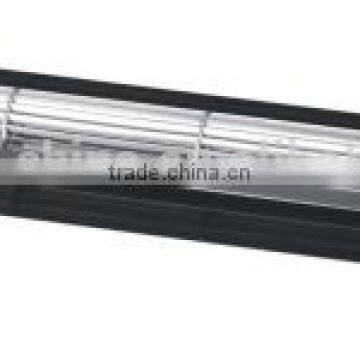

High Temperature Resistant 30mm Diameter Cross Flow Fan 220v AC
- 500 Piece / Pieces per Month
- SHENZHEN/HK
- Credit Card
You May Like
-
DC Cross Flow Fan 30*290mm For Elevator cooling systerm
-
360mm 220v AC Cross Flow Fan for Industrial Equipment
-
Temperature Controlled Fan for Industrial Equipment 120mm - 420MM 220/240v
-
DC High temperature Fridge Fan 30*150mm
-
120mm cross flow ventilation fan / High temperature
-
High temperature 120mm 220/240v industrial fan
Product Details
| Electric Current Type | AC | Blade Material | Stainless Steel | |
| Mounting | Other, According to your needs | Place of Origin | Guangdong, China | |
| Brand Name | Topfan/OEM/ODM | Model Number | MX3090CFM22 | |
| Power | 7w | Voltage | 220V | |
| Air Volume | 0.4CBM | Speed | 3200RPM | |
| Certification | CE, ROHS, UL | After-sales Service Provided | No overseas service provided |
Product Description
Temperature Resistant 30mm Diameter Cross Flow Fan 220v AC
Gerenal Specification
Specification
| Model 30F | Size(mm) | Rated voltage (v) | Rated Frequency Hz | Rated Current (A) | Input Power (w) | Speed (rpm) | Max Static Pressure (mmAq) | Air Flow (m3/mim) | Noise Leve (dB-A) | Weight (g) | ||
| A | B | C | ||||||||||
| MX3090CFM11 | 98 | 108 | 154 | 110 | 60 | 0.8 | 7 | 3200 | 1.1 | 0.4 | 32 | 390 |
| MX3090CFM22 | 220 | 50 | 0.45 | 8.5 | 2700 | 0.8 | 0.3 | 30 | ||||
| MX30150CFM11 | 160 | 170 | 222 | 110 | 60 | 0.55 | 8.5 | 3200 | 1.2 | 0.8 | 35 | 520 |
| MX30150CFM22 | 220 | 50 | 0.25 | 10.5 | 2700 | 0.9 | 0.6 | 32 | ||||
| MX30190CFM11 | 198 | 208 | 260 | 110 | 60 | 0.7 | 9 | 3150 | 1.4 | 0.9 | 36 | 540 |
| MX30190CFM22 | 220 | 50 | 0.3 | 11 | 2700 | 1 | 0.8 | 32 | ||||
| MX30290CFM11 | 300 | 310 | 366 | 110 | 60 | 0.75 | 13.5 | 3150 | 1.6 | 1.6 | 37 | 670 |
| MX30290CFM22 | 220 | 50 | 0.35 | 12.5 | 2700 | 1.1 | 1.4 | 34 | ||||
Dimensions(mm)
Fan Performance Curve
,,Shipment
1. FOB Shenzhen or Hong Kong (mass production)
2. DHL, UPS, FEDEX, TNT or any other international express (sample or small quantity)
<<<More details can be discussed>>>
,,Payment
T/T and Western Union
1. The payment for the high value sample will be charged.
2. The payment for the low value sample is free, but the freight should be paid by you.
,,Delivery Time
Generally, 500~1000pics 10 days after confirming the PI
,,Our Company
Alibaba: http://topfan-china.en.china.cn
Shenzhen Topfan-China Development Technology Co., Ltd, founded in 1996 in Shenzhen China, is professional manufacturer on dc brushless fans and ac fans. Products are ISO9000, UL, CE, RoHS and TUV certificated and good sellers both at home and abroad, including Europe, North America, Asia(Korea and India) etc. The products, including brushless fans, cross flow fans, blower fans, centrifugal fans, dc brushless motor, shades pole and RC ac fans etc, are being widely used in the information technology, network communications as well as industrial production equipment, medical equipment, and others.
Based on mutual benefit and development, we'll make our biggest efforts to do everything better for our customers.
