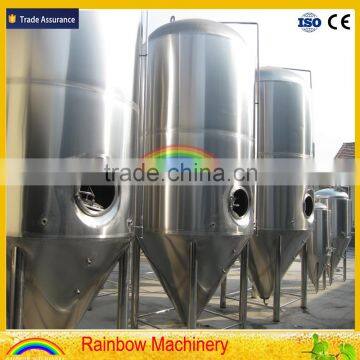

50L-6000L Stainless Steel Conical Beer Fermenter
- Qingdao
- T/T Credit Card
You May Like
-
Stainless steel fermenter, beer fermentation tanks 1000L 2000L 2500L 3000L 4000L 5000L per batch
-
Complete 100-1000L Pub beer Brewing Equipment with brewhouse and fermenters
-
Stainless steel commercial beer brewing equipment 1000L,2000L,3000L,5000L,10000L per batch
-
commercial beer brewery brewing equipment for sale1000L, 2000L, 3000L, 5000L per batch
-
glycol water tank and ice water tank for beer brewing/brewery system 2000L 2500L 3000L 4000L 5000L per batch
-
Stainless steel brewing tank steam heating brewhouse 1000L-10000L
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | RAINBOW | Model Number | RM-6000L | |
| Processing Types | Alcohol | Voltage | Request | |
| Power(W) | 0-80KW | Dimension(L*W*H) | Depends | |
| Weight | 200KG-2000KG | Certification | CE ISO | |
| Warranty | 3 Years, 36 months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Production Description
50L-6000L Stainless Steel Conical Beer Fermenter
Specifications
Different combinations of brewhouse:mash tun/lautering tun, brew kettle/whirlpool, hot liquid tank
Optional: 1-mash/brew kettle, lauter tun/whirlpool
2-mash tun, lauter tun, brew kettle/whirlpool
3-mash tun, lauter tun, brew kettle, whirlpool
Main features of brewhouse and fermentation:
Brewhouse system:
1)-Inner wall stainless steel 304, 3mm; - surface wall stainless steel 304 2 mm or copper, 1.5mm
Insulation:Polyurethane-thickness:100mm
2)-Dome top, top manway with glass, Side manway, cone bottom 160 degree
3)-Mash tun, Lauter tun, Boiling Kettle, Whirlpool tun in various combination
4)-Agitator motor with VFD, DANFOSS
5)-insulation: polyurethane/rockwool 100mm;
-with inside CIP washing ball
-raking agitator
-removable false bottom
-sparging arm, sight glass
-Tangential inlet for whirlpool
-Thermowell for temperature sensor and thermometer....
Fermentation system:
1)-Inner wall stainless steel 304, 3mm; -surface wall stainless steel 304, 2mm
2)-Dome top, conical bottom,Top manway, or side manway
3)-Insulation: polyurethane 100mm, dimple plate jacket, thickness 1.5mm
4)-Glycol cooling jackets on both cylinder and cone
5)-Inside 360 degree rotating CIP washing ball;
-CIP arm
-Pressure gauge
-safety&vacuum valve on top
-sample valve
-rotating racking arm
-Carbonation port and stone
-thermometer, PT100
-dry hops port
6) Testing pressure: 3 bar, working pressure: 1.5-2 bar
Cooling Unit
1.Insulated glycol water tank with copper coil
2.High efficiency chillers or refrigerators with fryon to supply cooling energy
3.Sanitary centrifugal pump for glycol water recycle among tanks and heat exchanger
4.All pipes, fitting, insulation materials are included
Control Unit
1. Mashing Pump on/off excluded VFD
2. Temperature display and Auto/Manu heating Control for brewhouse tanks
3. Auto/Manu Glycol Water Pump control
4. Auto/Manu Chiller control
5. Temperature display and Auto/Manu Control for FVs and BBTs
6. Temperature display and Control for GWT and CLT
7. Temperature controller, thermocouple, solenoid valves etc are included
8. PLC with touch screen panel for special request
Pipe line for brewhouse | SUS304 |
Measuring cylinder | SUS304 |
Butterfly valve | Ø32 |
Butterfly valve | Ø38 |
Sight glass | Ø32 |
Saccharimeter | 0-10; 10-20 |
Spent grains harrow | SUS 304 |
Fermenter’s safety valve | ø32 |
Fermenter’s Sample valve | ø32 |
Pressure gauge | 0-0.6Mpa |
Pipe line for cooling unit | SUS 304 |
Cooling water solenoid valve | ø32 |
Cooling pipe insulation |
|
Expansion valve for cooling compressor |
|
Control box cable |
|
Signal wire |
|
SIEMENS frequency convertor | V20 |
Electric relay | Omron |
Temperature sensor | PT100 |
1.Professional Beer Equipment manufacturer
2.Professional technical engineers & dedicated service teams.
3.Complete quality control and management systems
4.3Years After-sales services for our machines.
5.Complete beer line to meet different capacities and all kinds of beer
6.Customize machine can be offered(voltage,material,dimension,heating source and so on)
1.LCL/FCL(20GP/40GP/40HQ)
2.Beer brewing equipment main tanks packed with soft material or packed in fumigation wooden case and fixed onto iron frame
3.standard exporting packing, suitable for long time marine shipping
4.According to customer's requirements
Features&Applications:
1- Using siemens PLC control system(or digital display control system) can get the required standards of free switch from automatic to manual.
2. The brewer can also brew draft beer, pale beer, brown beer, stout beer etc,
to meet different taste of customers.
3. We also have the capacity of 100L, 200L, 300L, 500L, 1000L, 2000L, 3000L, 5000L, 8000L, etc per patch for your reference.
OPTION: We can also supply these machines together with our brewery equipments;
beer filling line,
bottle washing machine,
filling machine,
capping machine,
pasteurization tank,
labelling machine.
And beer kegs(10L,20L,30L,50L...), beer tower.
Kegs washer and filler.
Steam boiler.
It can be customized, such as the capacity, material, voltage, heating source, etc.
4. Provide beer production technology and brewing formula, installation and personal training.
