brewing equipment mainly includes;

milling system,

brewhouse system,

fermentation system,

cooling system,

washing system,

filter system,

controlling system, etc.

And all the necessary spare parts.

The brewhouse system had different combinations accroding to customers' demands:

 mash tun/lautering tun, brew kettle/whirlpool, hot liquid tank), please check the details in the following chart.

Optional: 1-mash/brew kettle, lauter tun/whirlpool
2-mash tun, lauter tun, brew kettle/whirlpool
3-mash tun, lauter tun, brew kettle, whirlpool

Main features of brewhouse and fermentation:

Brewhouse system:
1)-Inner wall stainless steel 304, 3mm; - surface wall stainless steel 304 2 mm or copper, 1.5mm
Insulation:Polyurethane-thickness:100mm
2)-Dome top, top manway with glass, Side manway, cone bottom 160 degree
3)-Mash tun, Lauter tun, Boiling Kettle, Whirlpool tun in various combination
4)-Agitator motor with VFD, DANFOSS
5)-insulation: polyurethane/rockwool 100mm;
-with inside CIP washing ball
-raking agitator
-removable false bottom
-sparging arm, sight glass
-Tangential inlet for whirlpool
-Thermowell for temperature sensor and thermometer....

Fermentation system:
1)-Inner wall stainless steel 304, 3mm; -surface wall stainless steel 304, 2mm
2)-Dome top, conical bottom,Top manway, or side manway
3)-Insulation: polyurethane 100mm, dimple plate jacket, thickness 1.5mm
4)-Glycol cooling jackets on both cylinder and cone
5)-Inside 360 degree rotating CIP washing ball;
-CIP arm
-Pressure gauge
-safety&vacuum valve on top
-sample valve
-rotating racking arm
-Carbonation port and stone
-thermometer, PT100
-dry hops port
6) Testing pressure: 3 bar, working pressure: 1.5-2 bar

Cooling Unit
1.Insulated glycol water tank with copper coil
2.High efficiency chillers or refrigerators with fryon to supply cooling energy
3.Sanitary centrifugal pump for glycol water recycle among tanks and heat exchanger
4.All pipes, fitting, insulation materials are included

Control Unit
1. Mashing Pump on/off excluded VFD
2. Temperature display and Auto/Manu heating Control for brewhouse tanks
3. Auto/Manu Glycol Water Pump control
4. Auto/Manu Chiller control
5. Temperature display and Auto/Manu Control for FVs and BBTs
6. Temperature display and Control for GWT and CLT
7. Temperature controller, thermocouple, solenoid valves etc are included
8. PLC with touch screen panel for special request

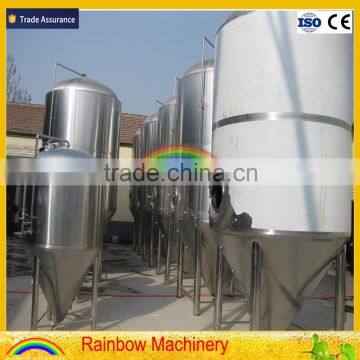

Reference photos

Dear customers, if you had any further question regarding the beer brewing equipment or any requirements, please feel free to contact us. We will provide you the best solutions as your demands.
