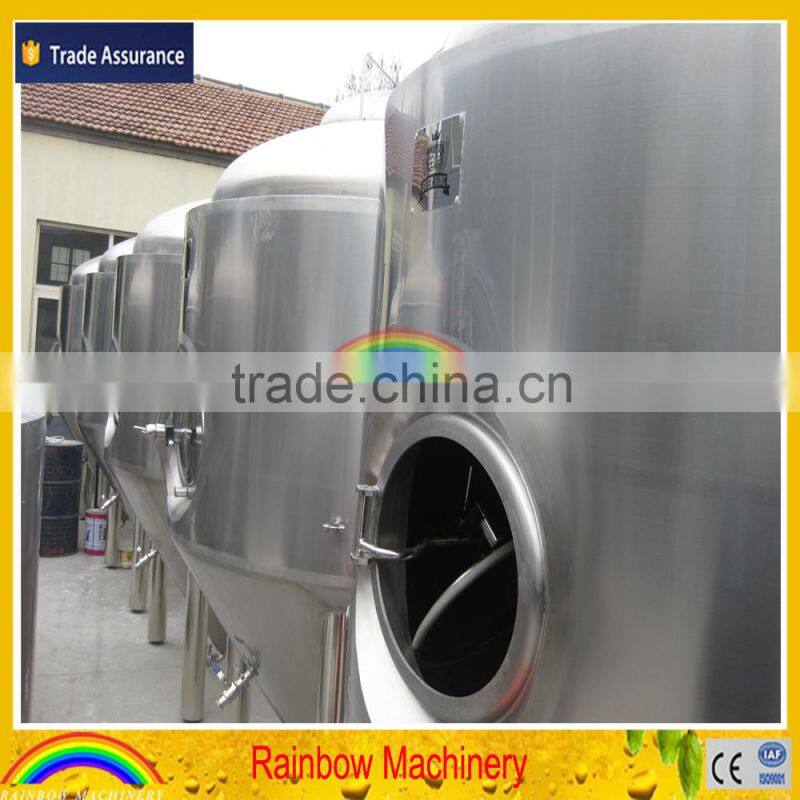

7bbl beer brewing equipment, beer brewery equipment, beer fermentation tank with cooling jacket

Main features of brewhouse and fermentation:

Brewhouse system:
1) - inner wall stainless steel 304, 3mm;
- surface wall stainless steel 304 or copper, 1.5mm
2) Dome top, top manway with glass
Side manway, cone bottom 160 degree
3) -insulation: polyurethane/rockwool 100mm;
-with inside CIP washing ball
-raking agitator
-removable false bottom
-sparging arm, sight glass
-Tangential inlet for whirlpool
-Thermowell for temperature sensor and thermometer....

Fermentation system:
1) -Inner wall stainless steel 304, 3mm; -surface wall stainless steel 304, 2mm
2) Dome top, conical bottom,
Top manway, or side manway
3) Insulation: polyurethane 100mm
4) Glycol cooling jackets on both cylinder and cone
5) -Inside 360 degree rotating CIP washing ball;
-CIP Sparging arm
-Pressure gauge
-safety&vacuum valve on top
-sample valve
-rotating racking arm
-thermometer
-carbonation stone (optional)
-dry hops port
6) Testing pressure: 3 bar
Working pressure: 1.5-2 bar

Features&Applications:

1.Adopting siemens PLC control system(or digital display control system) can get the required standards of free switch from automatic to manual.

2.The brewery equipment can also brew draft beer, pale beer, brown beer, stout beer etc,

 to meet different taste of customers.

3.We also have the capacity of 100L, 200L, 300L, 500L, 1000L, 2000L, 3000L, 5000L, 8000L, etc per patch for your reference.

OPTION:  We can also supply these machines together with our brewery equipments;

beer filling line,

bottle washing machine,

filling machine,

capping machine,

pasteurization tank,

labelling machine.

And beer kegs(10L,20L,30L,50L...), beer tower.

Kegs washer and filler.

Steam boiler.

The brewery equipment  can be customized, such as the capacity, material, voltage,

heating source, etc.

4. Provide beer production technology and brewing formula, installation and personal training.
