10bbl Beer Brewing Equipment, Beer Brewery Equipment, Stainless Steel Beer Fermentation Tank With Cool Jacket

10 bbl beer brewing equipment, beer brewery equipment, stainless steel beer fermentation tank with cooling jacket

Specifications

The beer brewing equipment mainly includes

1.milling system,

2.brewhouse system,

3.fermentation system,

oling system,

5.CIP washing system,

6.filter system,

7. PLC/semi-auto controlling system

--And all the necessary spare parts.

The brewhouse system includes 3 tanks

(mash tun/lautering tun, brew kettle/whirlpool, hot liquid tank),

please check the details in the following chart.

Optional:

1-mash/brew kettle, lauter tun/whirlpool

2-mash tun, lauter tun, brew kettle/whirlpool

3-mash tun, lauter tun, brew kettle, whirlpool

Here follows is the parameter of 10bbl about 1200l beer brewing system,please check for reference.

Material: stainless steel 304 or copper

Heating source: electricity, gas fired heating or steam

Warranty period: 36 months for main equipment

Main features of the brewhouse and fermentation system

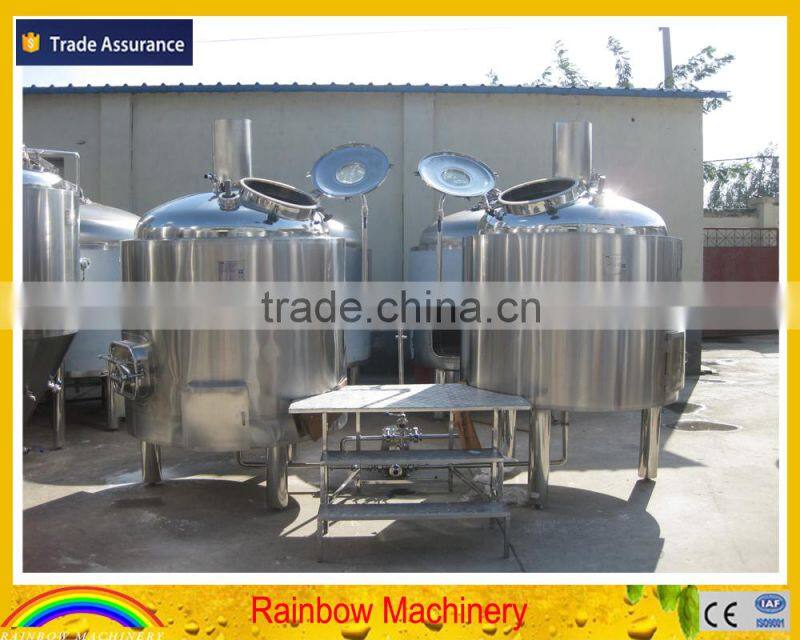

Brewhouse system

1-Heating method: electricity/steam/gas direct fire

2-Inside wall, SUS 304, 3mm; outside wall, SUS 304, 1.5mm;Insulation: PU100mm

3-Dome top; cone bottom, 160 degree

4-Top manway with glass

5-Side manway for spent grains

6-Removable false bottom for lauter tun

7-Sparging arm for lauter tun

8-Sight glass after lauter tun

9-Tangential inlet for whirlpool

10-CIP ball and arm

11-Frequency convertor for wort pump and agitator/rake

12-SUS 304 sanitary pump

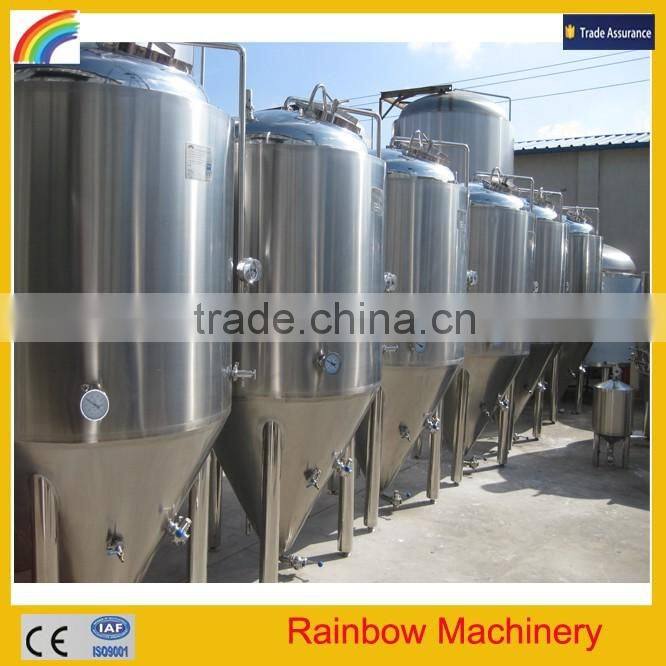

Fermentation system

-Usage: fermentation, maturation and storage

1) -Inner wall stainless steel 304, 3mm;
-surface wall stainless steel 304, 2mm
2) Dome top, conical bottom,
Top manway, or side manway
3) Insulation: polyurethane 100mm
4) Glycol cooling jackets on both cylinder and cone
5) -Inside 360 degree rotating CIP washing ball;
     -CIP arm
     -Pressure gauge
     -safety&vacuum valve on top
     -sample valve
     -rotating racking arm
     -thermometer
     -carbonation stone (optional)
     -dry hops port
6) Testing pressure: 3 bar, working pressure: 1.5-2 bar

Features&Applications:

1.Adopting siemens PLC control system(or digital display control system) can get the required standards of free switch from automatic to manual.

2.The brewery equipment can also brew draft beer, pale beer, brown beer, stout beer etc,

 to meet different taste of customers.

3.We also have the capacity of 100L, 200L, 300L, 500L, 1000L, 2000L, 3000L, 5000L, 8000L, etc per patch for your reference.

OPTION:  We can also supply these machines together with our brewery equipments;

beer filling line,

bottle washing machine,

filling machine,

capping machine,

pasteurization tank,

labelling machine.

And beer kegs(10L,20L,30L,50L...), beer tower.

Kegs washer and filler.

Steam boiler.

It can be customized, such as the capacity, material, voltage, heating source, etc.

4. Provide beer production technology and brewing formula, installation and personal training.

Package

1.LCL/FCL(20GP/40GP/40HQ)

2.Beer brewing equipment main tanks packed with soft material or packed in fumigation wooden case and fixed onto iron frame

3.standard exporting packing, suitable for long time marine shipping

4.According to customer's requirements

Clients

Germany, Czech Republic, USA, Canada, Russia, Sweden,

Paraguay, Singapore, Australia, Finland. etc

Functions

1-Brew all kinds of beer: pale beer, brown beer, stout beer....

2-Customize: a. capacity(100L, 200L, 300L, 500L, 1000L, 10BBL, 2000L, 3000L...)

                        b. voltage(220v or 380v or other electricity voltage )

                       c. material thickness(our standard is inner wall 3mm sus 304, outer wall 1.5mm sus304,

                         insulation 100mmPU or rock wool)

                     d. dimension of all the tanks(length, height, width)

                    e. heating source(electric, steam, direct gas fire heating)

3-Water and Pressure Test is made before shipment.

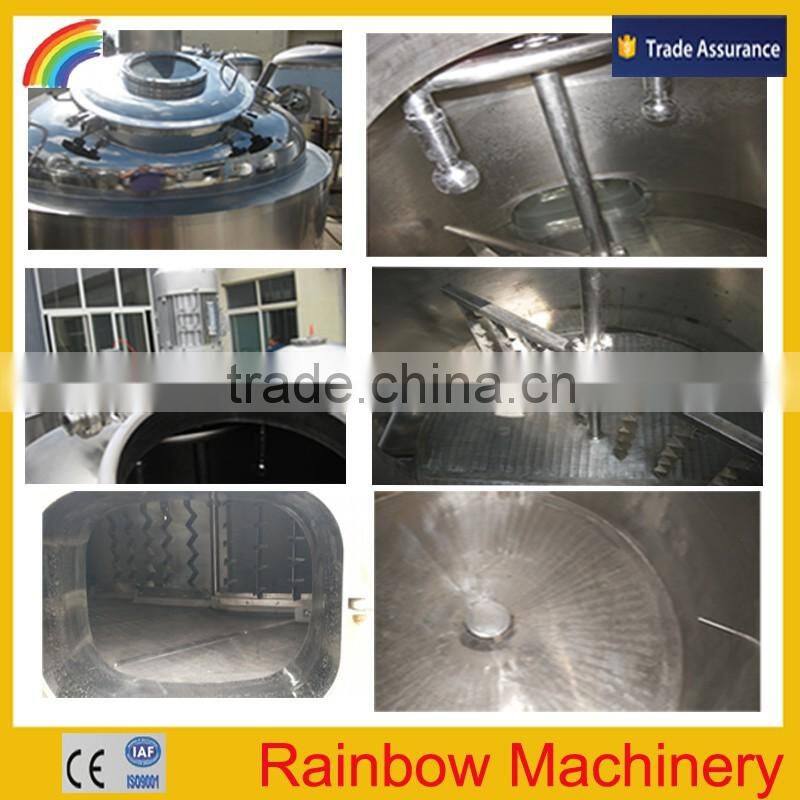

Reference Photos

If you wanna know more about our products, pls do not hesitate to contact with us. We would be online to answer your questions. Thank you!
