1000 Liter Large Beer Brewery Equipment

1000l large beer brewery equipment

Complete beer brewing system, include malt miller, brewhouse system, fermenting system, cooling system, CIP system, controlling system, filter system.

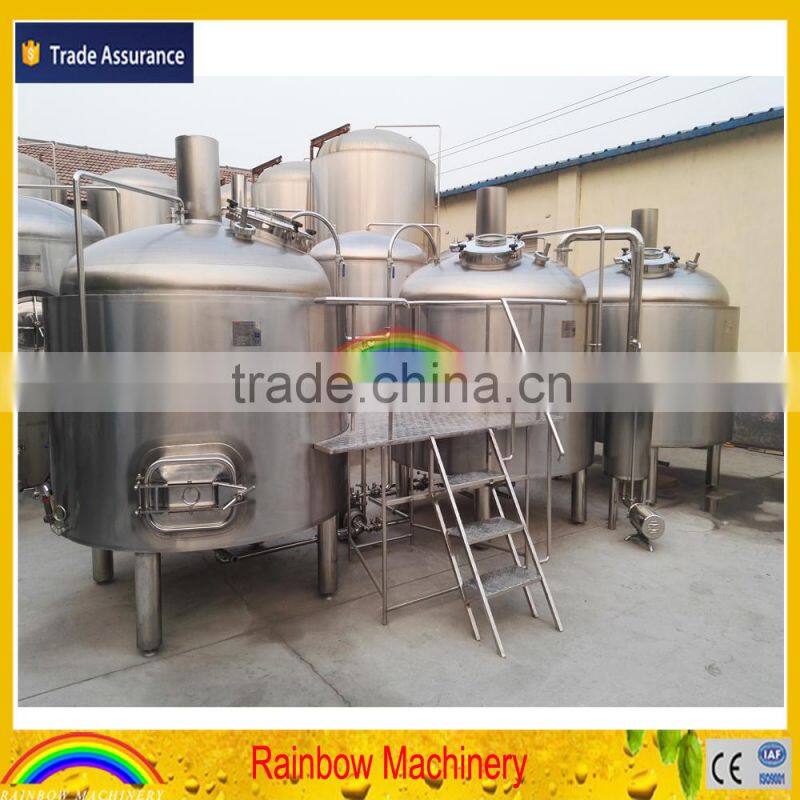

The brewhouse system  Mash tun, Lauter tun, Boiling Kettle, Whirlpool tun in various combination

1-mash/lauter tun+ brew kettle/whirlpool
1-mash/brew kettle, lauter tun/whirlpool
2-mash tun, lauter tun, brew kettle/whirlpool
3-mash tun, lauter tun, brew kettle, whirlpool

Brewhouse system:

1)-Inner wall stainless steel 304, 3mm; - surface wall stainless steel 304 2 mm or
     copper, 1.5mm, Insulation:Polyurethane-thickness:100mm
2)-Dome top, top manway with glass, Side manway, cone bottom 160 degree
3)-Mash tun, Lauter tun, Boiling Kettle, Whirlpool tun in various combination
4)-Agitator motor with VFD, DANFOSS
5)-insulation: polyurethane/rockwool 100mm;
    -with inside CIP washing ball
    -raking agitator
    -removable false bottom
    -sparging arm, sight glass
    -Tangential inlet for whirlpool
    -Thermowell for temperature sensor and thermometer

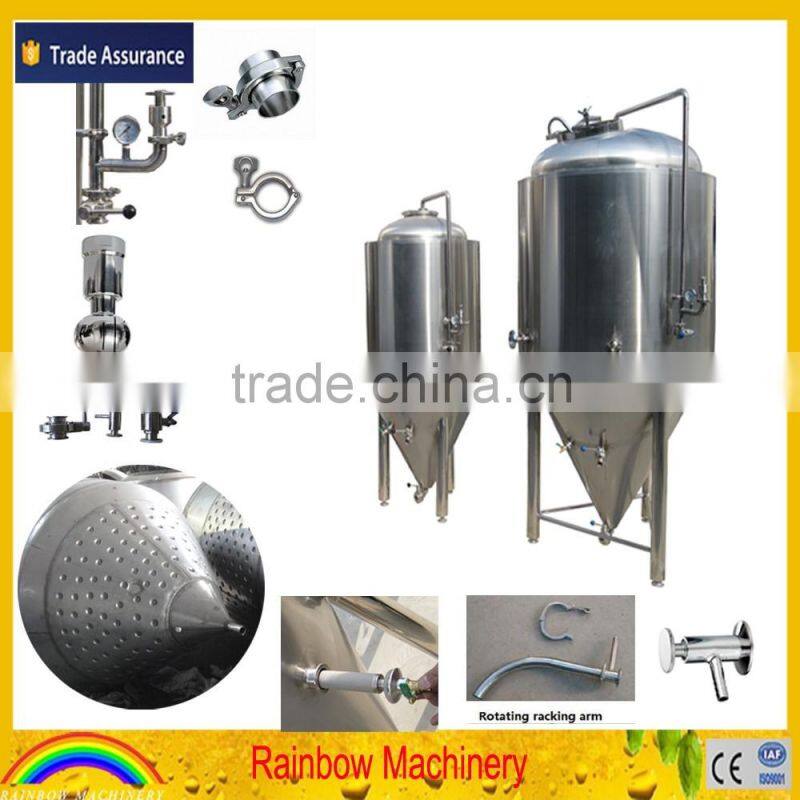

Fermentation system:dimple plate jacketed beer fermenter

Capacity ranging from 100L to 10,000L per patch
1) -Inner wall stainless steel 304, 3mm; -surface wall stainless steel 304, 2mm
2) Dome top, conical bottom, Top manway, or side manway
3) Insulation: polyurethane 100mm
4) Glycol cooling jackets on both cylinder and cone
5) -Inside 360 degree rotating CIP washing ball;
    -CIP arm
    -Pressure gauge
    -safety&vacuum valve on top
    -sample valve
    -rotating racking arm
    -thermometer
    -carbonation stone (optional)
    -dry hops port
6) Testing pressure: 3 bar, Working pressure: 1.5-2 bar

1.LCL/FCL(20GP/40GP/40HQ)

2.The beer brewing equipment main tanks packed with soft material or packed in fumigation wooden case and fixed onto iron frame

3.standard exporting packing, suitable for long time marine shipping

4.According to customer's requirements

Features&Applications:

1.Adopting siemens PLC control system(or digital display control system) can get the required standards of free switch from automatic to manual.

2.The brewery equipment can also brew draft beer, pale beer, brown beer, stout beer etc,

 to meet different taste of customers.

3.We also have the capacity of 100L, 200L, 300L, 500L, 1000L, 2000L, 3000L, 5000L, 8000L, etc per patch for your reference.

OPTION:  We can also supply these machines together with our brewery equipments;

beer filling line,

bottle washing machine,

filling machine,

capping machine,

pasteurization tank,

labelling machine.

And beer kegs(10L,20L,30L,50L...), beer tower.

Kegs washer and filler.

Steam boiler.

It can be customized, such as the capacity, material, voltage, heating source, etc.

4. Provide beer production technology and brewing formula, installation and personal training.

Germany, Czech Republic, USA, Canada, Russia, Sweden,

Paraguay, Singapore, Australia, Finland. etc

Functions

1-Brew all kinds of beer: pale beer, brown beer, stout beer....

2-Customize: a. capacity(100L, 200L, 300L, 500L, 1000L, 10BBL, 2000L, 3000L...)

                        b. voltage(220v or 380v or other electricity voltage )

                       c. material thickness(our standard is inner wall 3mm sus 304, outer wall 1.5mm sus304,

                         insulation 100mmPU or rock wool)

                     d. dimension of all the tanks(length, height, width)

                    e. heating source(electric, steam, direct gas fire heating)

3-Water and Pressure Test is made before shipment.

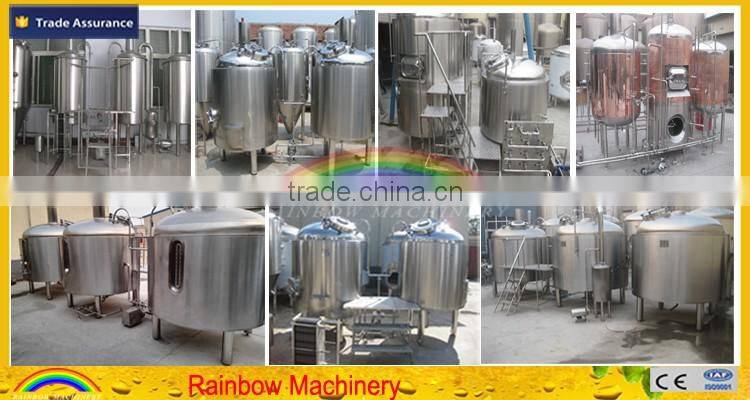

Reference Photos

Dear customers, if you had any further question regarding the beer brewing equipment or any requirements, please feel free to contact us. We will provide you the best solutions as your demands.
