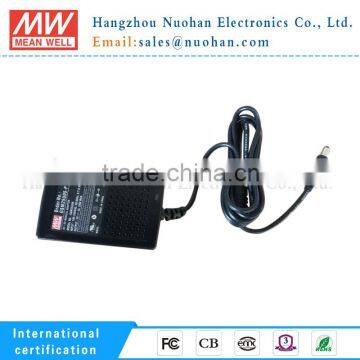

Meanwell 20W 5V dc Adaptor Ac/dc High Reliability Medical Adaptor With NRCan UL

ORDER NO.

GSM25U05-P1J

OUTPUT

SAFETY MODEL NO.

GSM 25U05

DC VOLTAGE         Note.2

5V

RATED CURRENT

4A

CURRENT RANGE

0 ~ 4A

RATED POWER

20W

RIPPLE & NOISE (max.)   Note.3

60mVp-p

VOLTAGE TOLERANCE       Note.4

±6.0%

LINE REGULATION     Note.5

±1.0%

LOAD REGULATION      Note.6

±6.0%

SETUP, RISE, HOLD UP TIME

500ms, 30ms / 230VAC 1000ms, 30ms / 115VAC at full load

INPUT

VOLTAGE RANGE

80 ~ 264VAC     113 ~ 370VDC

FREQUENCY RANGE

47 ~ 63Hz

EFFICIENCY (Typ.)

80%

AC CURRENT

0.7A / 115VAC 0.35A / 230VAC

INRUSH CURRENT (max.)

55A / 230VAC 30A / 115VAC

LEAKAGE CURRENT(max.)

Touch current < 50μA/264VAC

PROTECTION

OVERLOAD

105 ~ 170% rated output power

Protection type : Hiccup mode, recovers automatically after fault condition is removed

OVER VOLTAGE

5.25~7.5V

Protection type : Clamp by zener diode, output short

ENVIRONMENT

WORKING TEMP.

-25 ~ +60℃(Refer to "Derating Curve")

WORKING HUMIDITY

20~90% RH non-condensing

STORAGE TEMP., HUMIDITY

-40 ~ +85℃, 10 ~ 95% RH

TEMP. COEFFICIENT

±0.03%/°C( 0~ 50°C)

VIBRATION

10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY&EMC

(Note. 7)

SAFETY STANDARDS

UL60950-1, CSA22.2, BSMI CNS14336 approved

WITHSTAND VOLTAGE

I/P-O/P:4242VDC

ISOLATION RESISTANCE

I/P-O/P:100M Ohms /500VDC/25°C/70% RH

EMC EMISSION

Compliance to FCC PART 15 / CISPR22 class B, CNS13438 class B

OTHERS

MTBF

796.7Khrs min.    MIL-HDBK-217F(25°C)

DIMENSION

79*54*33mm (L*W*H)

PACKING

215g ; 60pcs / 13.9kg / CARTON

CONNECTOR

PLUG

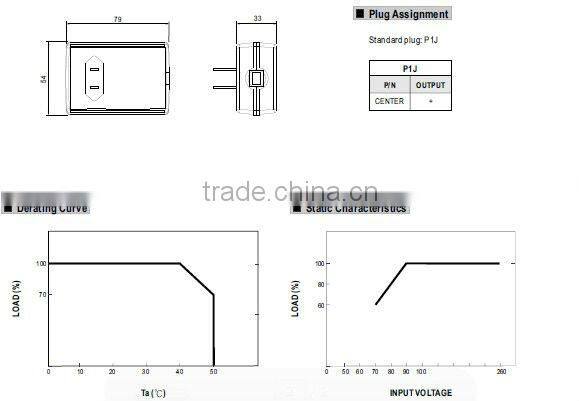

See page3; Other type available by customer requested

CABLE

See page3; Other type available by customer requested

NOTE

1.All parameters are specified at 115VAC input, rated load, 25°C 70% RH ambient.

2.DC voltage: The output voltage set at point measure by plug terminal & 50% load.

3.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.

4.Tolerance: includes set up tolerance, line regulation, load regulation.

5.Line regulation is measured from low line to high line at rated load.

6.Load regulation is measured from 20% to 100% rated load

7.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the

EMC directives.
