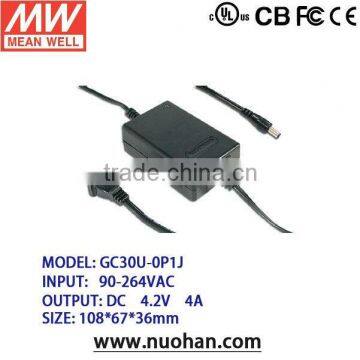

Mean well Adaptor with Charger 16.8 ~ 30W AC-DC Power ac dc switch mode power supplies

ORDER NO.

GC30U-0P1J

OUTPUT

SAFETY MODEL NO.

GC30U-0

DC VOLTAGE SET AT   Note.2

4.2V

RATED CURRENT

4V

CURRENT RANGE

0 ~ 4V

RATED POWER

16.8W

RIPPLE & NOISE (max.)    Note.3

50mVp-p

CHARGING VOLTAGE RANGE Note.4

3.6 ~ 4.4V

LINE REGULATION     Note.5

±1.0%

LED INDICATOR

Green LED ON <150 ~ 200mA < Red LED ON

SETUP, RISE, HOLD UP TIME

200ms, 50ms, 16ms  at full load

INPUT

VOLTAGE RANGE

90 ~ 264VAC     127 ~ 370VDC

FREQUENCY RANGE

47 ~ 63Hz

EFFICIENCY (Typ.)       Note.7

55%

AC CURRENT

1A / 100VAC

INRUSH CURRENT (max.)

40A / 230VAC

LEAKAGE CURRENT(max.)

0.25mA / 240VAC

PROTECTION

OVERLOAD

90 ~ 110% Constant current mode and over 300% pulsing mode

Protection type : Constant current limiting, recovers automatically after fault condition is removed

OVER VOLTAGE

110 ~ 135% rated output voltage

Protection type : Clamp by zener diode

OVER TEMPERATURE

IC1Tj130

Protection type : Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.

0 ~ +50°C(Refer to output load derating curve)

WORKING HUMIDITY

20~90% RH non-condensing

STORAGE TEMP., HUMIDITY

-20~+85°C, 10~95%RH

TEMP. COEFFICIENT

±0.03%/°C(0~50°C)

VIBRATION

10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY&EMC

SAFETY STANDARDS

UL60950-1, CSA22.2 approved

WITHSTAND VOLTAGE

I/P-O/P:3KVAC

ISOLATION RESISTANCE

I/P-O/P:100M Ohms /500VDC/25°C/70% RH

EMI CONDUCTION & RADIATION

Compliance to EN55014-1 class B, FCC part 15 Class B

HARMONIC CURRENT

Compliance to EN61000-3-2,3

EMS IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,11, light industry level, criteria A

DIMENSION

108*67*36mm (L*W*H)

PACKING

405g; 36pcs / 16.5kg / CARTON

CONNECTOR

PLUG

Standard type P1J: 2.1 * 5.5* 11mm, tuning fork type center positive for stock ; Other type available by customer requested

CABLE

Standard type 18Awg UL1185 6ft and 4ft for 4.2V~8.4V output only for stock ; Other type available by customer requested

NOTE

1.All parameters are specified at 230VAC input, rated load, 25°C 70% RH ambient.

2.DC voltage: The output voltage set at point measure by plug terminal & 0% load.

3.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.

4.Output charging voltage range is measured from 0% to 100% rated load.

5.Line regulation is measured from low line to high line at rated load.
