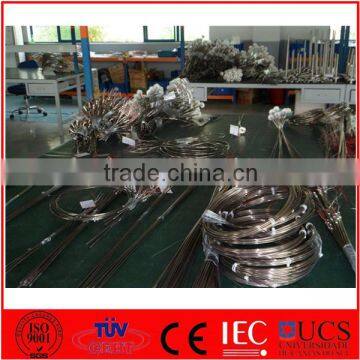

Mineral Insulated Thermocouple Type K

FOB Price

USD $1 - $25 / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Specification:

1.Diameter and length:Can be customized as customer's requirements(6mm--20mm)

2.Terminal box:water-proof type,splash-proof type,anti-explosion type,connector type,import type.

3Fixed device : flange/none/screw

4.Temperature Range: 0~800℃

Different sensor of different type: Mineral Insulated Metal Sheathed Thermocouple

Category	Code of Graduation	Class of Tolerance
		Class I		Class II
		Temperature Measurement Range	Tolerance Value	Temperature Measurement Range	Tolerance Value
Ni Cr Si- Ni Si Mg	N	40~1000º C	± 1.5º C or ± 0.4%t	40~1200º C	± 2.5º C or ± 0.75%t
Ni Cr - Ni Si	K	40~1000º C	± 1.5º C or ± 0.4%t	40~1200º C	± 2.5º C or ± 0.75%t
Ni Cr - Cu Ni	E	40~800º C	± 1.5º C or ± 0.4%t	40~900º C	± 2.5º C or ± 0.75%t
Fe - Cu Ni	J	40~750º C	± 1.5º C or ± 0.4%t	40~750º C	± 2.5º C or ± 0.75%t
Cu - Cu Ni	T	40~350º C	± 1.5º C or ± 0.4%t	40~350º C	± 1º C or ± 0.75%t
Pt Rh13 - Pt	R	0~1000º C	± 1.5º C or ± 0.4%t	0~600º C	± 1.5º C
Pt Rh10 - Pt	S	1000~1600º C	± [1+0.003 or t - 1100)]º C	600~1600º C	0.25%t
Pt Rh30 - Pt Rh6	B	-		600~1700º C	± 0.5º C or ± 0.25%t
