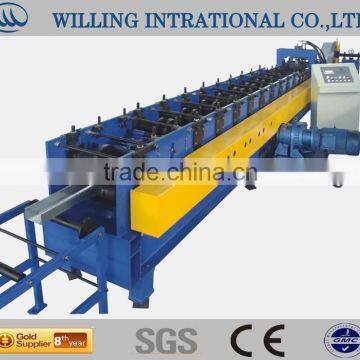

Steel C Purlins Steel Roll Forming Machine
- shanghai/ningbo
- T/T
You May Like
-
Made in China Cold Rolled C/z Shape Changable Roll Forming Machine
-
C/Z c Purlin Roll Forming Machine for Steel
-
High Precision C Channel Roll Forming Machine U Profile Roll Forming Machine
-
Automatic Quick-change C Purlin Roll Forming Machine With PLC Control System
-
Assured Quality Customized C/Z Shape Changeable Purlin Production Line
-
Best Quality Favorable Price Purlin Roll Forming Machine
Product Details
| Condition | New | Type | Other, Tile Forming Machine, steel C purlins steel roll forming machine | |
| Tile Type | Other, Glazed Steel, purlin | Use | Wall | |
| Production Capacity | 10~20m/min | Place of Origin | Zhejiang, China | |
| Brand Name | WILLING | Model Number | WLFM80-350&120-350 | |
| Power(W) | 18.5+5.5kw | Voltage | as your requirement | |
| Dimension(L*W*H) | 10000mm*1200mm*1500mm | Weight | about 9tons | |
| Certification | CE | Warranty | 12month | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

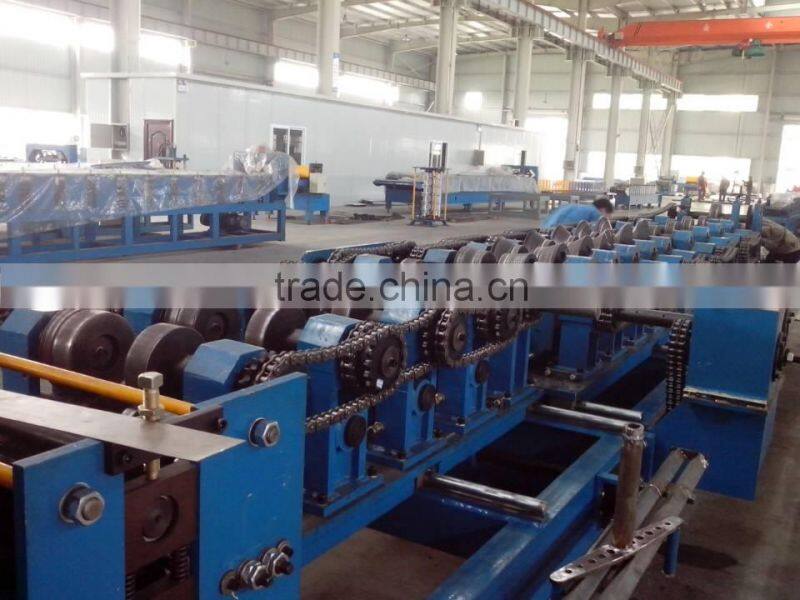

steel C purlins steel roll forming machine
WE CAN DESIGN THE MACHINE AS YOUR SAMPLE OR PROFILE

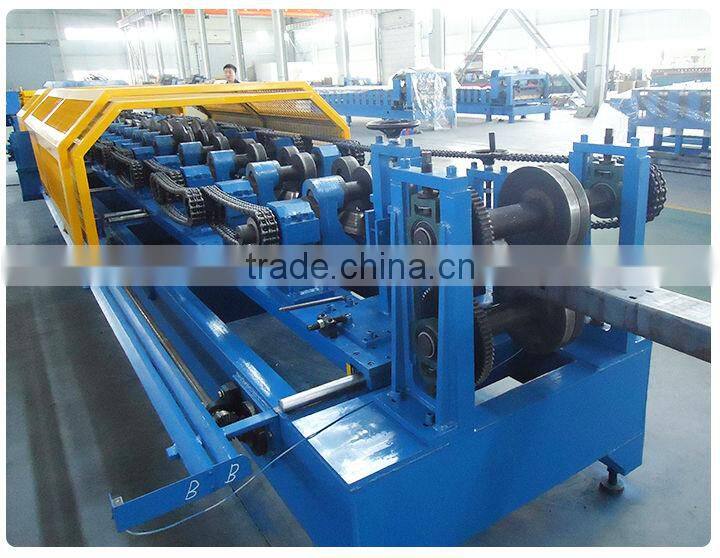

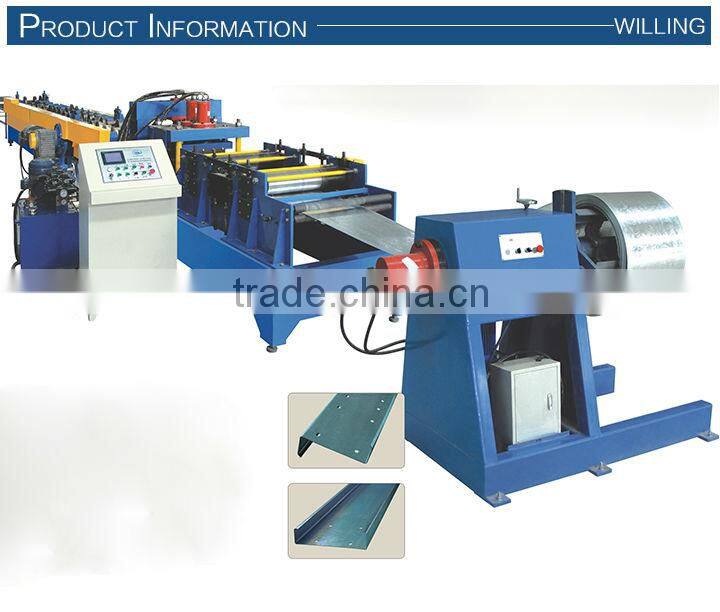

The roll forming machine includes manual uncoiler unit, sheet guiding equipment, straightening device, pre-punching device, roll forming system, cutting equipment, hydraulic station, electric controlling system(PLC) and run out supporting table.
Main Parameters
Material Spec | Galvanized or Carbon steel sheet (Q235) |
| Coil thickness | 1.5~3.0mm |
| Working speed | 10~12m/(cutting time is not included) |
| Cutting tolerance | ≤±2.5mm ( length ≤5000mm ) |
| ≤±3.0mm (5000mm <length ≤10000mm) | |
| Power requirement | Main motor power: 15Kw(Confimed by final design) |
| Hydraulic station power: 5.5Kw (Confimed by final design) | |
| 3 tons manual un-coiler | Max. capacity: 3000kgs; Inner Dia.: 508mm |
| Main roller quantity | Around 14 stands (Confimed by final design) |
| Type of cutting | Roll-formed and length-set cutting |
| Voltage | 380V 3phase 50HZ or as customers' requirements |
Material of main equipments

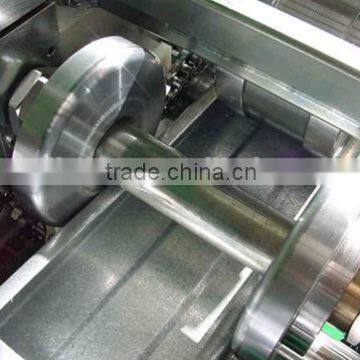

Roller Die Material | G G Cr15 bearing steel with quenched treatment |
| Active Shaft Material | High grade No.45 carbon wrought steel,which can improve the integrated mechanic feature of the shaft, shaft diameter 90mm |
Electric elements:
| Control system PLC panel, transducer and touch screen originally imported from Mitsubishi of Japan. Other elements from famous suppliers in China |
| Cutter blade: | Cr12 mould steel with quenched treatment |
Process sketch
Uncoiling the sheet --- Infeed guiding --- Straightening --- Pre-punching --- Roll forming --- Measure length --- Cutting the panel --- Panels to the supporter (option: automatic stacker).

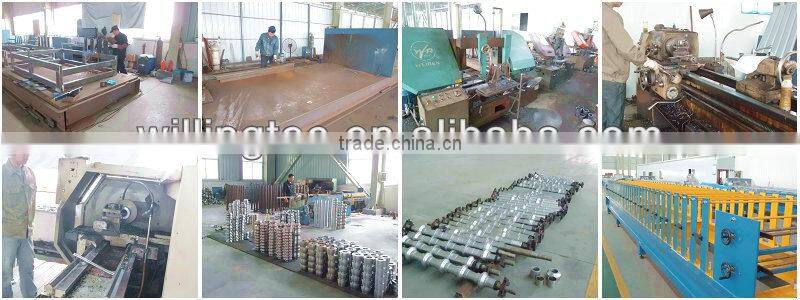

machine processing factory
One year warranty
After-sales Service Provided Engineers available to servicemachinery overseas
We are willing to service you!
If u have any question,pls feel free to ask me.
Skype:jenny.ma45
Mobile:+86-177-5730-8006
