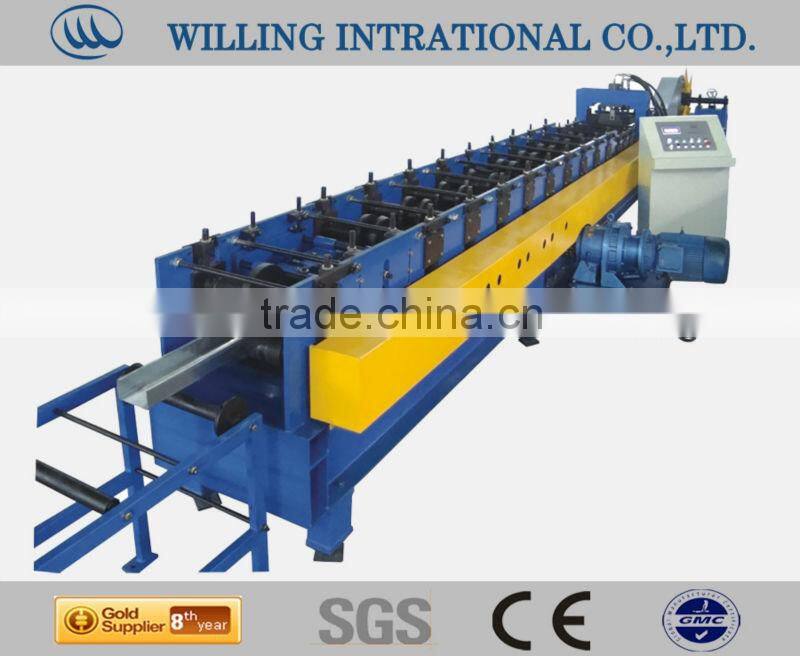

C Purlin Roll Forming Machine
- ShangHai/Ningbo
- T/T
You May Like
Product Details
| Condition | New | Work Pressure | 230-300MPA | |
| Production Capacity | 10-16m/min | Place of Origin | Zhejiang, China | |
| Brand Name | Willing | Model Number | WILPF | |
| Voltage | 380V/50HZ 3Phase(as Customer's Request) | Power(W) | 24kw | |
| Dimension(L*W*H) | 8.6*1.6*1.5m | Weight | About 10 Tons | |
| Certification | CE ISO SGS | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

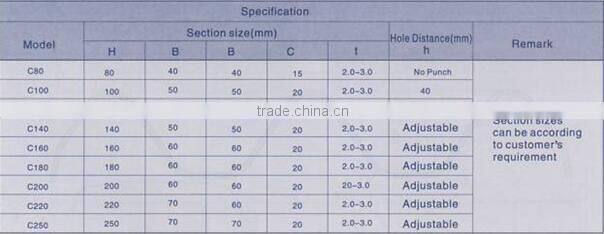

Product and Parameters | |
Model Number | WLPF series |
Profile | C Purline |
Thickness | 1.5-3.0mm |
Yield Stress | 230-300mm |
Purlin Speciafication | 100-250m |
Max.Forming Speed | 10-16m/min |
Roller material | Bearing Steel |
Roller Driven Type | Chain transmission |
Control system | PLC |
Total power | 24~27.5kw |
Details | |

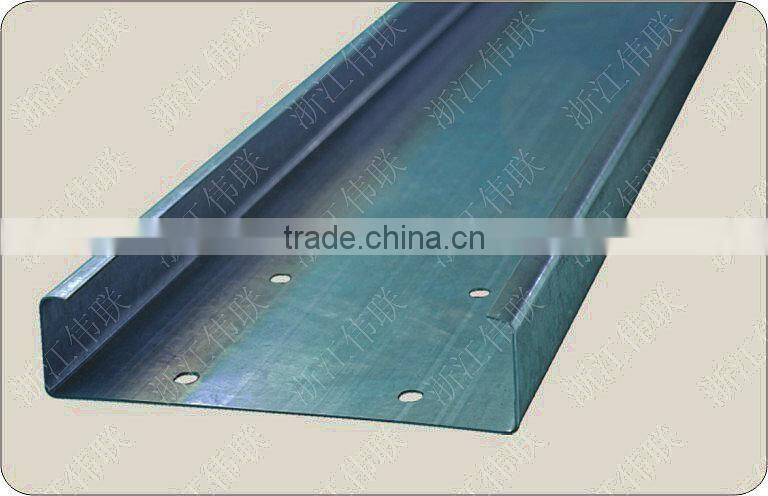

Finished Purlin | C shape Purlin is an important part of steel frame construstion,widely used in factories,warehouse etc.
|

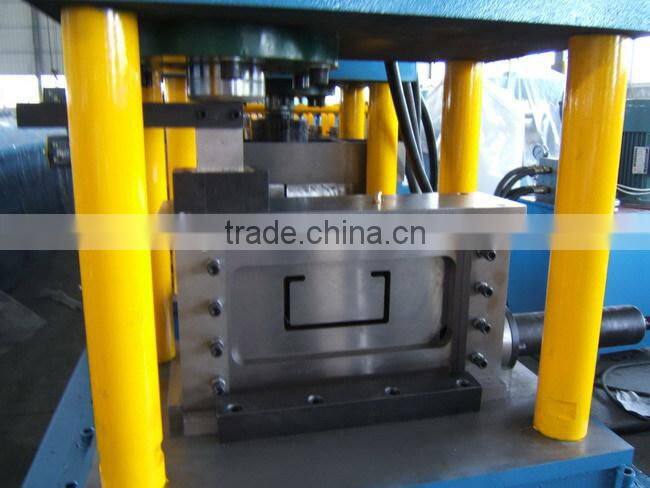

Cutter | Post-cut ensure the accurancy of the finished purlin. Pre-cut is also available |

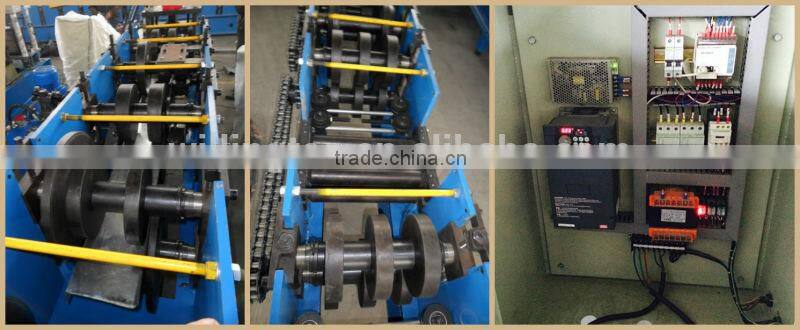

Internal structure | |


We are a professional manufacturer and exporter of roll forming machineries and products. The main items: steel roll forming machines, folding & bending machines as well as its auxiliary equipment, roofing tile sheets, corrugated steel sheets, decking sheets, sandwich panels, purlins, H beams, galvanized steel coils, pre-painted steel coils, construction ... View detail
View this Supplier's Website
Main Markets | Main Product(s) | Total Revenue (%) |
South America | Roofing Wall Machine, Purlin Machine, Decoiler, Floor Decking Machine | 11.98 |
Eastern Europe | Roofing Wall Machine, Purlin Machine, Decoiler, Floor Decking Machine, Stud and Truck Machine | 11.27 |
Southeast Asia | Roofing Wall Machine, Purlin Machine, Decoiler, Stud and Truck Machine | 19.12 |
Africa | Roofing Wall Machine, Purlin Machine, Decoiler, Floor Decking Machine, Stud and Truck Machine | 15.12 |
Oceania | Roofing Wall Machine, Purlin Machine, Decoiler, Floor Decking Machine, Stud and Truck Machine | 5.99 |
Mid East | Roofing Wall Machine, Purlin Machine, Decoiler, Floor Decking Machine, Stud and Truck Machine | 13.12 |
Central America | Roofing Wall Machine, Purlin Machine, Decoiler, Floor Decking Machine, Stud and Truck Machine | 10.27 |
Southern Europe | Roofing Wall Machine, Decoiler | 1.00 |
South Asia | Roofing Wall Machine, Purlin Machine, Decoiler, Floor Decking Machine, Stud and Truck Machine | 12.13 |

1. Professional | We have specialized in roll forming machine since 2004. 10 years' rich experience, keep improving our quality. |
2. Low price | A.The low labor cost. B. Complete supporting industries, we can save your money from every part. C. Convenient transportation. |
3. Fully automatic, easy operation | Our roll forming machine is equipped with PLC control to ensure high accuracy and easy operation. You just input the length of sheets, and how many piece you need, then the machine will start production according to your requirement. Easy operation, steady performance. |
4. OEM / ODM | OEM / ODM, customers’ design, logo are accepted. Our outstanding experts and skilled workers are devoting their hard working, to ensure the machine with high quality. |
