C, Z &M Shape Purlin Machine
- Shanghai or Ningbo
- T/T
You May Like
-
C Shape Purlin Machine
-
C/U/Z Changeable Section Steel Purlin Roll Forming Machine,
-
European Quality Steel C/U/Z CHANNEL Purlin Roll Forming Machine,
-
C100-300/Z100-300 Interchangeable Steel Frame & Purlin Machines
-
Forward Automatic c z Purlin Roll Forming Machine
-
Fully Automatic Cold Steel C&z Strip Purlin Machine
Product Details
| Condition | New | Type | Punching Machine | |
| Tile Type | Glazed Steel | Use | Other, purlin | |
| Production Capacity | 10-12m/min | Place of Origin | Zhejiang, China | |
| Brand Name | WILLING | Model Number | 100-250 | |
| Power(W) | 24~27.5kw | Voltage | 380V 3 phase 60Hz or at buyer's requirement | |
| Weight | About 1000Kg | Certification | CE, ISO | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

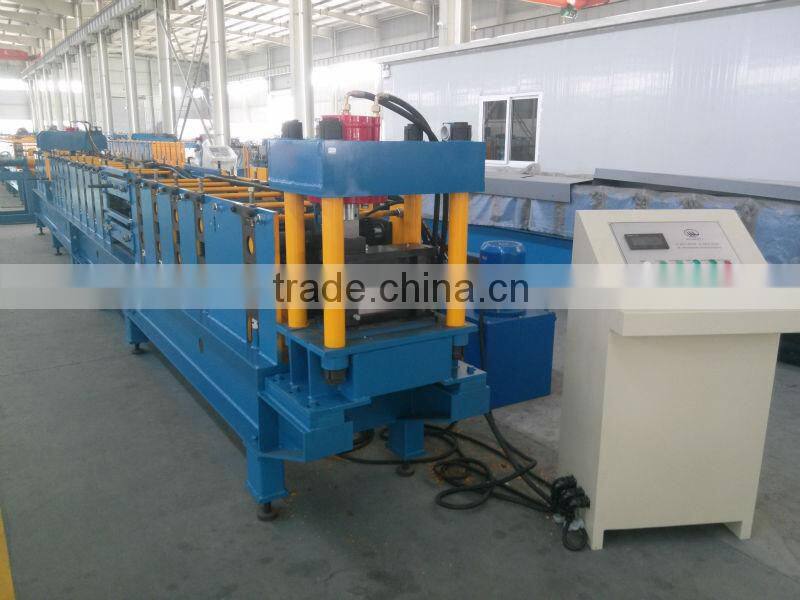

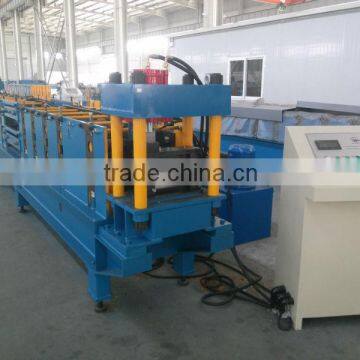

C, Z &M shape Purlin Machine
Introduction

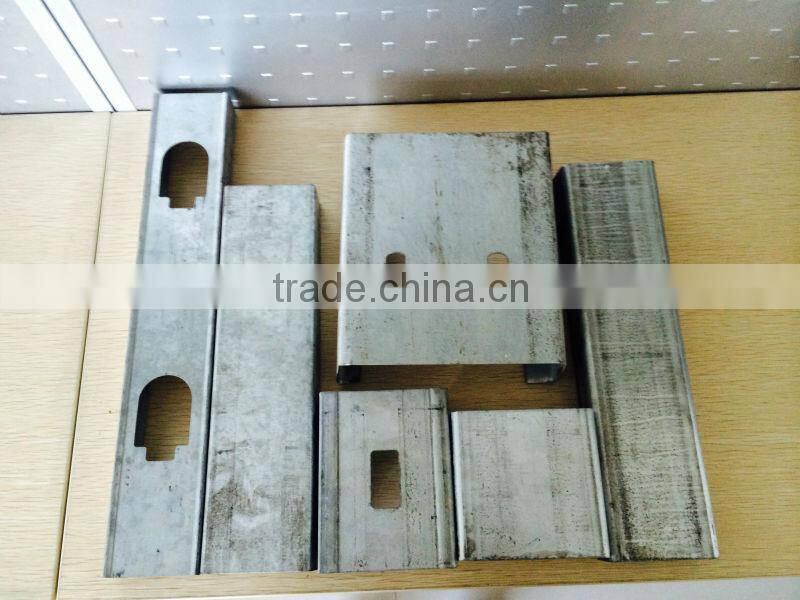

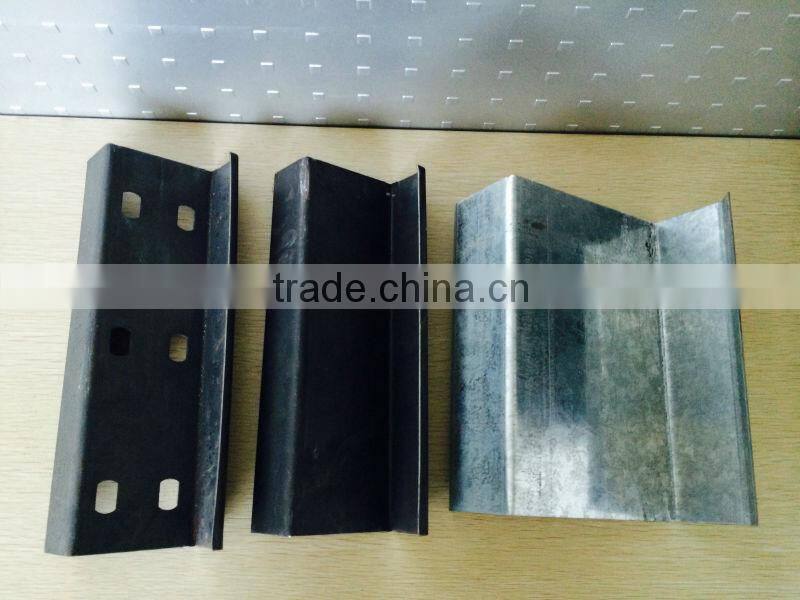

C, Z &M shape purlins are made from hot/ cold rolled steel strips, and straightened, hole punched, cut to length,
and roll formed by WLFM series steel purlin roll forming machine. Through changing spacing sleeves,
the machine can change different types/sizes of purlin.
Working Flow
Uncoiling→Sheet Guiding→Straightening &Levelling→(Hole Punching)→Measuring Length &Shearing→Roll Forming→Sheet to support table.
Parameters of the machine
Product Name | C Type Steel Purline Forming Machine/competitive price fast delivery | |
Material
| Type | 100-250 |
Thickness(mm) | 1.5-3.0 | |
Yield stress(Mpa) | 230-300 | |
Controller | PLC | |
Operation | Touch screen and button | |
Hydraulic system pressure (Mpa) | 20 | |
Hydraulic station motor power | 5.5 | |
Main motor power (KW) | 18.5-22 | |
Total power (KW) | 24-27.5 | |
Total weight (Kg) | 10000 | |
Roller material | Steel with chrome treatment | |
Roller driven type | Chain transmission | |
Active shaft material | High grade No.45 carbon wrought steel | |
Diameter of shaft | 80mm | |
Material of Main Equipment
1) Roller material: high grade no.45 forged steel, plated hard chrome on the surface
of roller with thickness 0.05mm
2) Active shaft material: high grade No.45 carbon wrought steel at diameter 75mm
3) Cutter blade: Cr12 mould steel with quenched treatmen
4) Electric elements: control system with PLC model S7-200, Siemens transducer with
ABB control panel with TP170, Siemens. It can input 10 sets of spec at one time
5) Oil tank model of hydraulic system: CB-E310
Packaging
Company Information
Our company,Zhejiang Willing International Co.,Ltd is a professional supplier in the field of steel structure construction, especially good at making Forming Machine.
