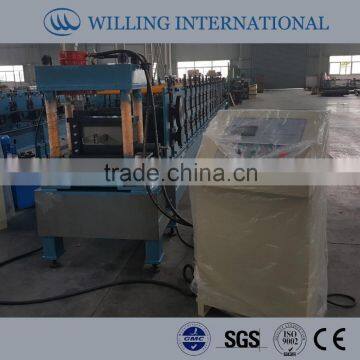

C purlin roll forming machine

FOB Price

USD $30,000 - $40,000 / Set

1 Set(Min.Order)

Supply Ability 20 Set / Sets per Month
Port Shanghai or Ningbo
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Punching Machine
Tile Type	Glazed Steel	Use	Other, purlin
Production Capacity	10-12m/min	Place of Origin	Zhejiang, China
Brand Name	WILLING	Model Number	100-250
Power(W)	24~27.5kw	Voltage	380V 3 phase 60Hz or at buyer's requirement
Dimension(LWH)	7m1m1.5m	Weight	About 1000Kg
Certification	CE, ISO	Warranty	1 year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

C, Z &M channel steel roll forming machine

Introduction

C, Z &M shape purlins are made from hot/ cold rolled steel strips, and straightened, hole punched, cut to length,

and roll formed by WLFM series steel purlin roll forming machine. Through changing spacing sleeves,

the machine can change different types/sizes of purlin.

Working Flow

Uncoiling→Sheet Guiding→Straightening &Levelling→(Hole Punching)→Measuring Length &Shearing→Roll Forming→Sheet to support table.

Parameters of the machine

Product Name		C Type Steel Purline Forming Machine/competitive price fast delivery
Material	Type	100-250
	Thickness(mm)	1.5-3.0
	Yield stress(Mpa)	230-300
Controller		PLC
Operation		Touch screen and button
Hydraulic system pressure (Mpa)		20
Hydraulic station motor power		5.5
Main motor power (KW)		18.5-22
Total power (KW)		24-27.5
Total weight (Kg)		10000
Roller material		Steel with chrome treatment
Roller driven type		Chain transmission
Active shaft material		High grade No.45 carbon wrought steel
Diameter of shaft		80mm

Material of Main Equipment

1) Roller material: high grade no.45 forged steel, plated hard chrome on the surface
of roller with thickness 0.05mm
2) Active shaft material: high grade No.45 carbon wrought steel at diameter 75mm
3) Cutter blade: Cr12 mould steel with quenched treatmen
4) Electric elements: control system with PLC model S7-200, Siemens transducer with
ABB control panel with TP170, Siemens. It can input 10 sets of spec at one time
5) Oil tank model of hydraulic system: CB-E310

Packaging

Company Information

Our company,Zhejiang Willing International Co.,Ltd is a professional supplier in the field of steel structure construction, especially good at making Forming Machine.
