c steel purlin and purlin roll forming machine

production introduction:

C or Z shape purlins are made from hot/ cold rolled steel strips, and straightened, hole punched, cut to length, and roll formed by WLPM series C/Z changeable shape purlin roll forming machine. Through changing, this product line can make the change of the shape C or Z purlin, besides change different sizes of C or Z shape purlin. This change for shape and sizes of C/Z purlin can be realized by automatic mode, or manual adjusting mode.

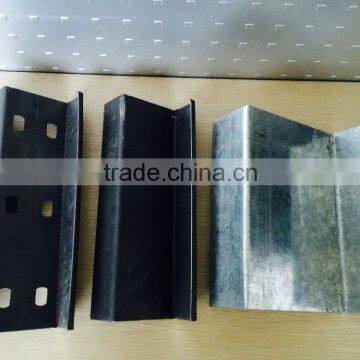

Details of the machine and purlin:

 Components of machine:

1.Roller Material: high grade No.45 forged steel, Coating with hard chrome.

2.Active Shaft Material: high grade No.45 carbon wrought steel, improved the integrated mechanic feature of the shaft.

3.Electric Elements: PLC control panel, transducer imported from Mitsubishi of Japan.

4.Other Elements: from famous suppliers in China.

5.Cutter Blade: Cr12 mould steel with quenched treatment.

main equipment:

1.5T Hydraulic uncoiler

-- Single head to put the coil

2.sheet guiding

make sure the material is flat

3..Roll forming main machine

-- working speed: 10m—15m/min (not include cutting & punching time)

-- Roll forming: about 10 stations

-- Transmission: by chain

-- Machine adopt wall structure, thickness: 20mm

4.Cutting:

-- Machine adopt hydraulic after cutting

-- Cutting after forming: Cut the sheet after roll forming to required length

-- Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.

-- Length measuring: Automatic length measuring

-- Tolerance of length: 3m +/- 1.5mm

5.manual out table:

-- One out table with two support roller

6.PLC Control panel

-- Automatic length measurement:

-- Automatic quantity measurement

-- Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved

-- Length inaccuracy can be amended easily.

-- Control panel: Button-type switch and touch screen:

7.Hydraulic station

 Supplies the initial power to the cuter through a closed oil tank. It is off without cutting, which can save the power.

Process flow:

Uncoiling -- Sheet Guiding -- Roll Forming -- Pressing --Measuring Length&cutting --Sheet to Support Table
