Quick Change Automatic C And Z Steel Purlin Roll Forming Machine
- Shanghai Nningbo
- T/T
You May Like
Product Details
| Condition | New | Type | Other, purlin machine | |
| Tile Type | Steel | Use | Roof | |
| Production Capacity | 100set/per yeasr | Place of Origin | Zhejiang, China | |
| Brand Name | WILLING | Model Number | any size as buyer request | |
| Power(W) | 30kw | Voltage | 25Mpa | |
| Dimension(L*W*H) | 5000mm*1500mm*1400mm | Weight | 10000kg | |
| Certification | CE, ISO9001:2008,GMC,Soncap, AAA credit | Warranty | 1year | |
| After-sales Service Provided | No overseas service provided |
Product Description
c z purlin roll forming machine
used roll forming machine
z purlin cold roll forming machine
C Z purlin roll forming machine are made from hot/ cold rolled steel strips, and straightened, hole punched,
cut to length, and roll formed by WLFM series steel purlin roll forming machine. Through changing spacing sleeves, the machine can change different types/sizes of purlin.
Technical parameters:
Suitable material | steel strip |
| Main motor power | 30KW |
| Hydraulic station power | 25KW |
| Thickness of material | 1.0-3.2mm |
| Electric tension | at buyer's requirement |
| Material of roller die | GCr15 bearing steel with quenched treatment |
| Material of cutting die | Cr12 mould steel with quenched treatment |
| Working speed | 10,000 - 16,000mm/min |
| Quantity of stands | about 16 groups |
| Fixing dimensions | 8,500 x 1,100 x 1,450mm |
| Weight | about 12,000kg |
| Hydraulic pressure | 18 - 20MPa |
| Controlling system | PLC |
Machine Components:
1. Main machine
2. Manual/hydraulic decoiler (3-5 tons)
3. Hydraulic pre-cutting for easy operation(for post-punching&cutting type)
4. Hydraulic system
5. PLC computer controlling system
6. Forming cutter
7. Run out table (2 units)
8. User's manual in English
Whoking Flow
Uncoiling→Sheet Guiding→Straightening &Levelling→(Hole Punching)→Measuring Length &Shearing→Roll Forming→Sheet to support table.

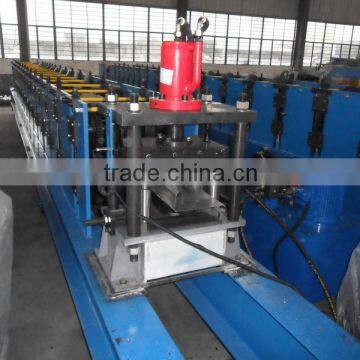

Detailed Picture
1) Coil Feeding Equipment: Consists of one uncoiler with capacity of 3000kgs and its base. The steel sheet is
manually fed to the guiding equipment under the function of friction and traction.
2) Guiding Equipment : Adopting guiding bar and sliding block to control the width and position of the steel sheet. The coil is guided in the correct position and passed to the roll forming equipment
3) Mainframe Transmission :Transfer the main motor power to the rollers through chains and sprockets, and also transfer the coil sheet.
4) Roll forming system: The main frame of machine is welded separately and the outside wall is connected by screw after being rotoblasted on the surface.The rollers are surface-chromeplated after being machined by the exact machine tool.
5)Pressing equipment: After formed the shape of the tile panel, pressing the tile panel with pressing equipment which ensures the shape lasting and more beautiful.
6) Post Cut Equipment: The length and blocks can be set by the buyer through the control panel, when reach the set length, the machine will cut the panel automatically. The cutting is finished under the power of hydraulic station which guarantees the precision of cutting. The cutting blade shall be change when the size of purlin is changed. The machine is shipped with cutting blades with all sizes of C purlin.
7) Hydraulic Station: Supplies the initial power to the cuter through a closed oil tank. It is off without cutting, which can save the power.
8) PLC Control Panel: The electric controlling system of this machine consists of five parts: operating system, screen, PLC, transducer and strong electricity part. The controlling system of this machine are imported from Mitsubishi company of Japan. The system uses modularized structure and has convenient, reasonable, canonical wiring arrangement, and its maintenance is quite easy. The independent operating console facilitates the mutual dialogue between the operator and the machine. The operation is easy and steady and can be choosed operation by manual or automatically.
Packaging
1. Main machine body is loaded naked (tighten to container with steel wire rope). But the rollers will be packed by bubble plastic sheet 2. Sea-worth export package
you will fall in love with it with first glimpse!
Terms of Payment: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller’s factory while before delivery.
Delivery: 60 days after receipt of advance payment
Service: we sent technician to your country to fix the machine.
The buyer should bear all the cost including: visa , Roundtrip ticket and suitable accommodation, also buyer should pay the salary 60USD/day.
Warranty: 12 months limited warranty
During warranty: parts are free but buyer pay for the shipping fee.
Welcome you to connect me!
About WILLIN
To be best partner in your great business,WILLIN will supply with the best quality product, best favourable price and best service for all world market. We have many kinds of machines,such as trapezoidal roll forming machine, corrugated roll forming machine, ceiling roll forming machine,glazed tile roll forming machine,C Z purlin roll forming machine etc.
Why choose perfect roll forming machine?
Good experience of 7 years to make roll forming machine.
Good experience for export more then 60 countries.
Provide best price,good quality and fast delivery.
With the policy of client-oriented business at WILLIN Factory,We put highly emphasis on not only outstanding quality but also excellent and efficient after sales service with specialfocus on a wide range of roofing roll forming machines.In addition to installation,operation training, regular maintenance and spear parts provided, we will keep offering our best service even overdue the period of guarantee.
Always we sincerely welcome suggestions and feedbacks from our customers regardless of good or even negative on comments so as to keep on improving and innovating our production line.Sticking to the principle to provide all clients with an excellent after sales service, we satisfy customers' needs in compliance their requirements at all costs. Over the past 9 years, therefore, we have grown our business on rollformers gradually, which we believe firmly it's just the proven of our good performance on QC, after sales service and machines manufacturing.The more you learn about us, the more you will understand that we are reliable and trustworthy. Just give a try to send your inquiry to us and you'll see
