Standard quality deck flooring roll forming machine price made in china
- 10 Set / Sets per Month
- Shanghai or Ningbo
- T/T
You May Like
-
Standard quality steel cold deck flooring roll forming machine price
-
metal floor deck plate roll forming machine
-
floor deck plate roll forming machine,floor deck profiling machine
-
quality floor deck plate roll forming machine in china mainland
-
low price concrete floor polishing machine
-
Steel floor tile forming machine made
Product Details
Condition | New | Type | Tile Forming Machine | |
Tile Type | Other, Galvanized steel | Use | Floor | |
Production Capacity | 8-12m/min | Place of Origin | Zhejiang, China | |
Brand Name | WILLING | Model Number | steel floor decking roll forming machine | |
Power(W) | 27500~35500 | Voltage | at buyer's requirement | |
Dimension(L*W*H) | 12000*1350*1250mm | Weight | About 18000KG | |
Certification | CE and ISO9001:2008 | Warranty | 1 years | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
deck flooring roll forming machine1.high efficiency but low price
2.easy operate, easy maintain
3.speed:10-12m/min
deck flooring roll forming machine

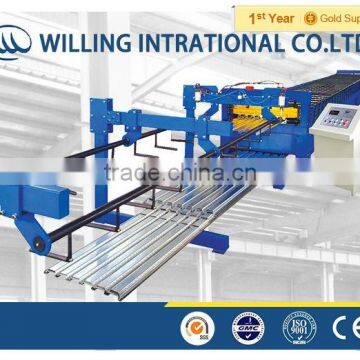

Steel floor deck sheet is rolled by WLFD series steel floor decking roll forming machine, the finished products
are of many features, such as simple shape, large wave height, high intensity and good adhesiveness when
pouring the concrete together with the welded steel wire net on-site. In the high-storey building, it not only can save steel mould board, but also reduce the bearing of the floor; on basis of
equal capacity, it reduces the steel amount of engineering useage, so that it saves cost of investment.
Technical parameters: |
|
Material type | galvanized steel sheet |
Material thickness (mm) | 0.8 - 1.2 mm |
Material yield stress (Mpa) | 230~300 |
Max. forming speed (m/min) | 8-12 |
Roll material | Steel with chrome treatment |
Roller driven type | Chain transmission |
Controller & operation | PLC& touch screen and button |
Hydraulic system pressure (Mpa) | 12 |
Hydraulic station motor power (KW) | 5.5 |
Main motor power (KW) | 22~30 |
Total power (KW) | 27.5-35.5 |
Total weight (Kg) | About 18000 |
Quantity of stands | about: 24 groups |
Index error of length | 10m±2mm |
Voltage | 380V 3 phase 60Hz or at buyer's requirement |
Working Flow
Uncoiling the sheet Sheet guiding Straightening Pre-punching
Pre-cutting Roll forming Rectifying Panels to the supporter
CE and ISO certification
1.We provide the technical support for whole life.
2.When need the technician to go abroad, we will arrange the technician.
We do our utmost, Why WILLING
1). Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We
need your machines running in order to keep your business running.
2). Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
3). Q: How does your factory do regarding quality control?
A: Quality is priority. WILLING People always attach great importance to quality control from the very
beginning to the end of the production. Every product will be fully assembled and carefully tested before
it's packed for shipment.
4). Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name
components.
5). Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. If you check with WILLING, you will see that we have never got any complaint from our customers.
