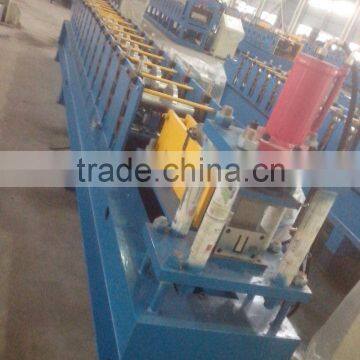

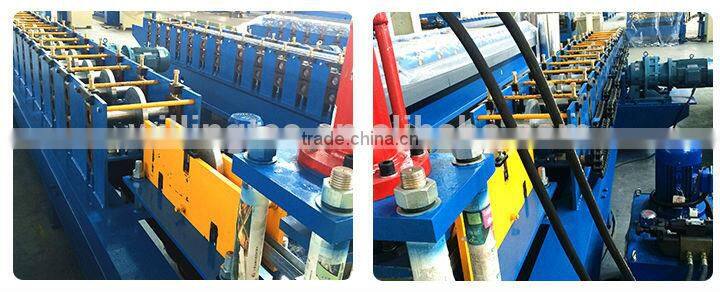

roller shutter door cold rolling forming machine the latest machine
- 20 Set / Sets per Month
- Shanghai or Ningbo
- T/T
You May Like
-
Standard quality deck flooring roll forming machine price made in china
-
Standard quality steel cold deck flooring roll forming machine price
-
metal floor deck plate roll forming machine
-
floor deck plate roll forming machine,floor deck profiling machine
-
quality floor deck plate roll forming machine in china mainland
-
low price concrete floor polishing machine
Product Details
| Condition | New | Type | Other, steel roofing tile making machines | |
| Tile Type | Other, PPGI/GI/GL/ALUMINUM COIL | Use | Roof | |
| Production Capacity | 7.5kw | Place of Origin | Zhejiang, China | |
| Brand Name | WILLING25-183-1100 | Model Number | as the coustomer requirement | |
| Power(W) | 7.5kw | Voltage | 4kw | |
| Dimension(L*W*H) | 8500*1500*1400mm | Weight | 6000-8000kg | |
| Certification | CE, ISO9001 | Warranty | 1year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
shutter door roll forming machine1. make as your requirement.
petitive price
3.good after-sale ser
shutter door cold forming machine
a. Main technical parameter:
1. Suitable plate: 0.2-0.7mm Alum or steel
2. Working speed: 10-12m/min

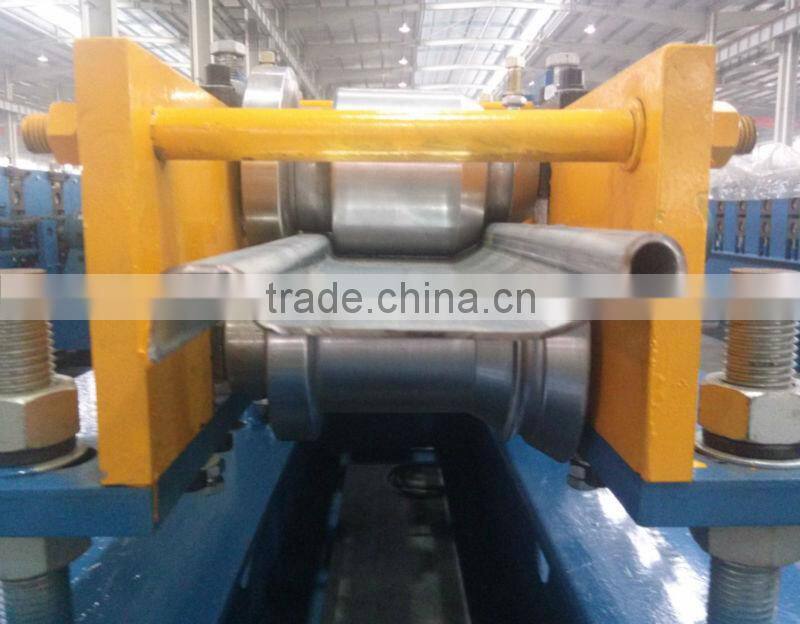

3. Stations: 16sets of rollers
4. Material of roller: 45# advanced steel, plated hard chrome
5. Material of shaft: 45# advanced steel(Diameter: Ø40)
6. Driven: Gear box
7. Main power: 7.5kw

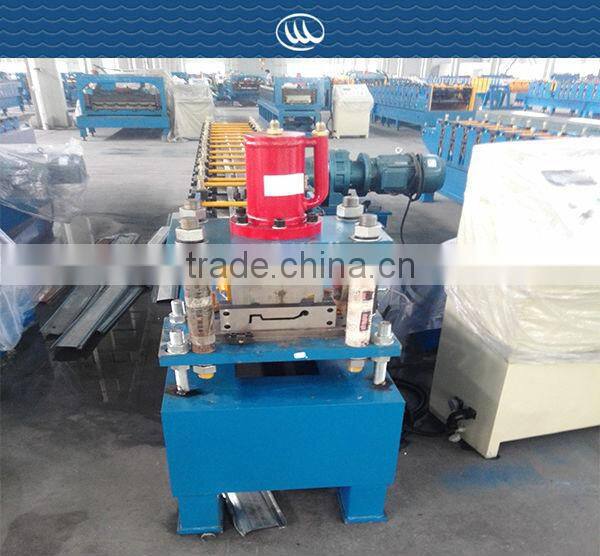

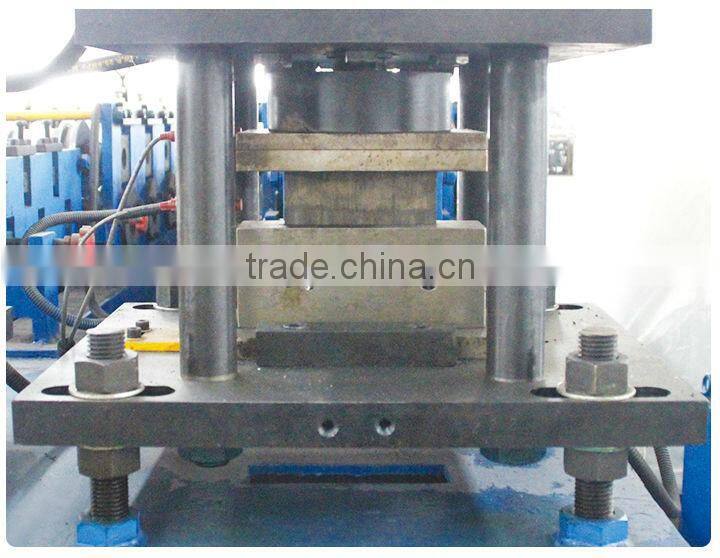

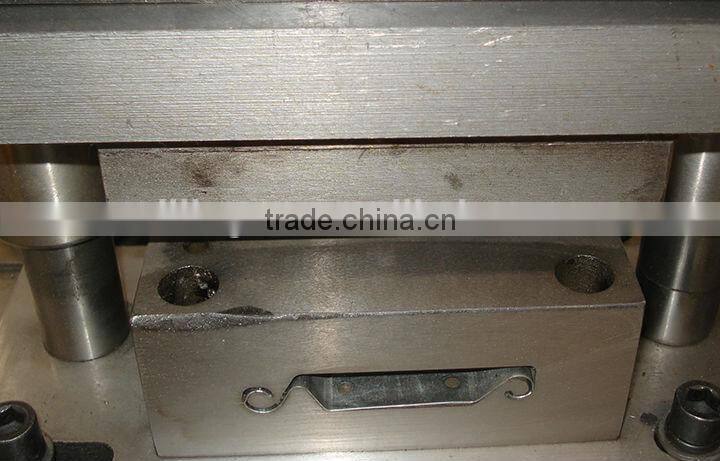

8. Cutting: pneumatic following cutting
9. Material of cutting knife: Cr12,Quench HRC 58-62
10. Cutting blade: 3kw

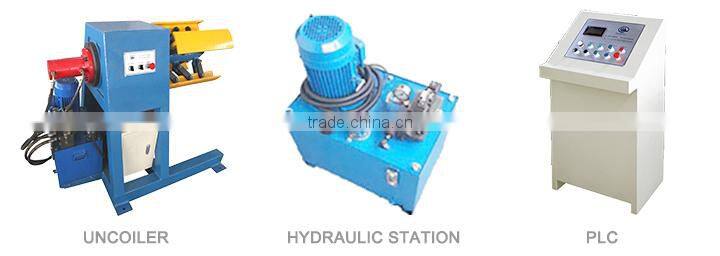

11. The whole machine is controlled by PLC
| Roller Material | High grade No.45 forged steel, coated with hard chrome. |
| Active Shaft Material | High grade No.45 carbon wrought steel, |
| Electric Elements | PLC control panel, transducer imported from Mitsubishi of Japan. |
| Cutter blades | Cr12 mould steel with quenched treatment. |
| other elements | from famous supplier in china |
Roller Material | High grade No.45 forged steel, coated with hard chrome. |
Active Shaft Material | High grade No.45 carbon wrought steel, which can improve the integrated mechanic feature of the shaft. |
Electric Elements | PLC control panel, transducer imported from Mitsubishi of Japan. Other elements are from famous suppliers of China. |
Cutter blades | Cr12 mould steel with quenched treatment. |

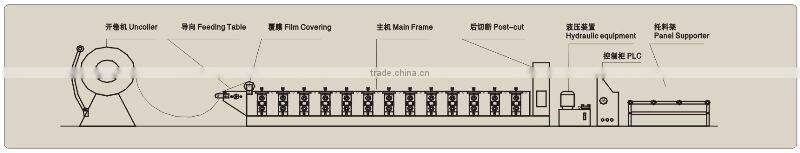

c. Process sketch
Uncoiling the sheet --- Infeed guiding --- Roll forming --- Rectifying the straightness ---
--- Measure length --- Cutting the panel --- panels to the supporter (option: automatic stacker).
1. Our machines can uses galvanized steel sheet, colored armor plate or aluminum plate as the material plate.
2. Controlling by computer, PLC display, operation is easy, running is steady and reliable, endurable, maintenance-free.
3. We can make and design all kinds of tile forming machine according to customer's request.
