JIS F7304 16K DN15-65mm Marine Bronze Angle Valve
- Qingdao China
 - T/T

You May Like
-


JIS F7410 16K DN15-65MM Marine Bronze Screw Down Check Angle Valve
 -


JIS F7367 5K DN15-200mm Marine Bronze Rising Stem Type Gate Valve
 -


JIS F7334 5K 10K DN15-100 mm Marine Bronze Hose Globe Angle Valve
 -


JIS F7356 5K DN15-125mm Marine Bronze Lift Check Valve
 -


JIS F7368 10K DN15-200mm Marine Bronze Rising Stem Type Gate Valve
 -


JIS F7305 5K Marine Cast Iron Globe Valve

Product Details
| Standard or Nonstandard | Standard | Structure | Other, Angle, angle valve | |
| Pressure | Other, Medium Pressure, 16K | Power | Other, Manual, Manual | |
| Material | Other, bronze, Brozne | Temperature of Media | Normal Temperature | |
| Media | Other, Water, Water, Oil | Port Size | JIS DIN15-65 MM | |
| Place of Origin | Shandong, China | Model Number | JIS F7304 | |
| Brand Name | OEM | Application | General |
Product Description
WELCOME TO QINGDAO HAOWEI SHIP ACCESSORIES CO.,LTD.
Good quality & good price & one-stop service FOR YOU!

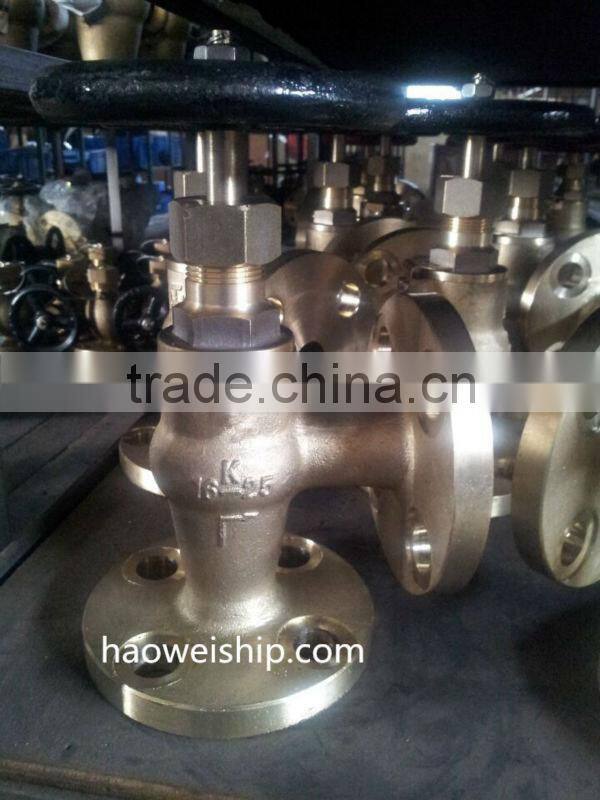

Marine Bronze Angle Valves JIS F7304 16K
MAIN DATA FOR JOINING(mm)
| SIZE | IMPA | FACE TO FACE (MM)  | FLANGE DIAM (MM)  | PITCH | HOLE | WEIGHT (KG)  |
| 15MM | 750151 | 70 | 95 | 70 | 4×15 | 2.73 |
| 20MM | 750152 | 75 | 100 | 75 | 4×15 | 3.65 |
| 25MM | 750153 | 85 | 125 | 90 | 4×15 | 5.16 |
| 32MM | 750154 | 95 | 135 | 100 | 4×15 | 6.72 |
| 40MM | 750155 | 100 | 140 | 105 | 4×19 | 8.13 |

MATERIALS OF MAJOR PARTS
| Part Name | Material | |
| Name | Mark | |
| Body,Bonnet | Tin-bronze | ZQSn10-21 |
| Disc,Seat | Albronze | QAL9-21 |
| Packing | PTFE | SFT-2 |
APPLICABLE SCOPE
The products are used for preventing refluence in fuel oil piping, lubricating oil piping and water piping at temperatures 120℃ or less. Dimensions of flange are according to JIS B2220 flange dimensions of steel pipe.
