JIS F7415 5K Marine Bronze Globe Lift Check Valve
US$ 20 - 80
/ Piece
1 Piece(Min. Order)
- Qingdao China
- T/T
You May Like
Product Details
| Place of Origin | China | Brand Name | oem | |
| Model Number | jis f7415 | Part | Other |
Product Description
WELCOME TO QINGDAO HAOWEI SHIP ACCESSORIES CO.,LTD.
Good quality & good price & one-stop service FOR YOU!
Product Description

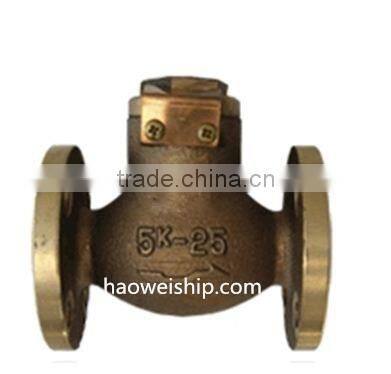

JIS F7415 5K DN15-40mm Marine Bronze Globe Lift Check Valve

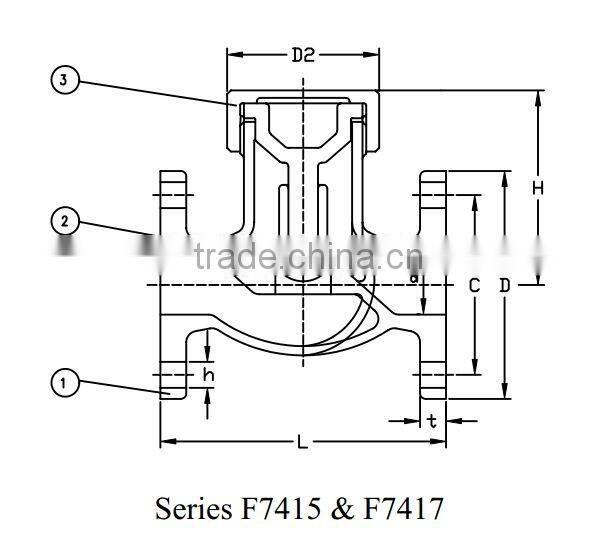

MAIN DATA FOR JOINING(mm)
| SIZE | IMPA | FACE TO FACE (MM) | FLANGE DIAM (MM) | PITCH | HOLE | WEIGHT (KG) |
| 25MM | 751301 | 120 | 95 | 75 | 4×12 | 2.39 |
| 32MM | 751302 | 140 | 115 | 90 | 4×15 | 3.80 |
| 40MM | 751303 | 160 | 120 | 95 | 4×15 | 4.95 |
MATERIALS OF MAJOR PARTS
| Part Name | Material | |
| Name | Mark | |
| Body,Bonnet | Tin-bronze | ZQSn10-21 |
| Disc,Seat | Albronze | QAL9-21 |
| Packing | PTFE | SFT-2 |
