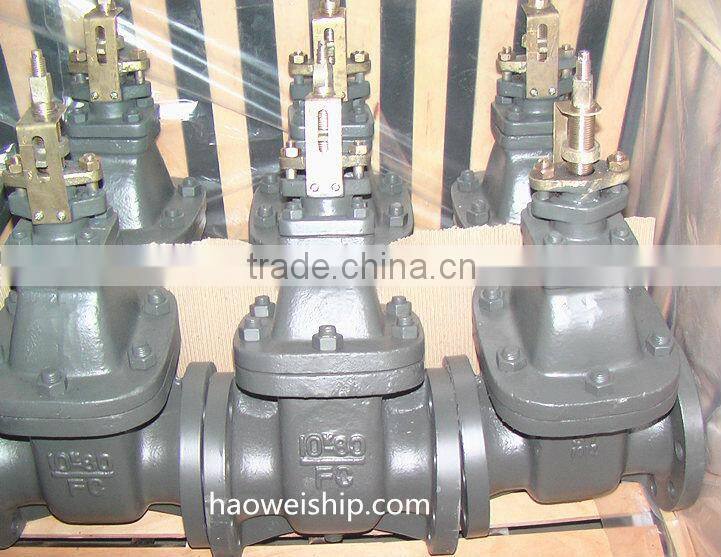

JIS F7369 16K Marine Cast Iron Gate Valve
US$ 30 - 1,300
/ Piece
1 Piece(Min. Order)
- Qingdao China
- T/T
You May Like
-
JIS F7363C 5K Marine Cast Steel Gate Valve
-
JIS F7366 10K Marine Cast Steel Gate Valve
-
JIS F7333 5K 10K Marine Cast Iron Hose Globe Angle Valve
-
JIS F7358 5K Marine Cast Iron Lift Check Globe Valve
-
JIS F7373 10K Marine Cast Iron Swing Check Globe Valve
-
JIS F7359 5K Marine Cast Iron Lift Check Angle Valve
Product Details
| Standard or Nonstandard | Standard | Structure | Other, Gate, Gate valve | |
| Pressure | Other, Medium Pressure, 5K/10K/16K | Power | Other, Manual, Manual | |
| Material | Other, Casting, cast iron | Temperature of Media | Medium Temperature | |
| Media | Other, Water, Water, Oil | Port Size | DN50-450 | |
| Place of Origin | China | Model Number | Gate Valve | |
| Brand Name | OEM | Application | General |
Product Description
WELCOME TO QINGDAO HAOWEI SHIP ACCESSORIES CO.,LTD.
Good quality & good price & one-stop service FOR YOU!
Product Description
F7369 16K Marine Cast Iron Gate Valve
MAIN DATA FOR JOINING(mm)
| SIZE | IMPA | FACE TO FACE (MM) | FLANGE DIAM (MM) | PITCH | HOLE | WEIGHT (KG) | |
| F7363 5K | 50MM | 750801 | 180 | 130 | 105 | 4×15 | 13.50 |
| 65MM | 750802 | 190 | 155 | 130 | 4×15 | 19.00 | |
| 80MM | 750803 | 200 | 180 | 145 | 4×19 | 24.20 | |
| 100MM | 750804 | 230 | 200 | 165 | 8×19 | 35.30 | |
| 125MM | 750805 | 250 | 235 | 200 | 8×19 | 48.10 | |
| 150MM | 750806 | 270 | 265 | 230 | 8×19 | 65.30 | |
| 200MM | 750807 | 290 | 320 | 280 | 8×23 | 103.00 | |
| 250MM | 750808 | 330 | 385 | 345 | 12×23 | 164.00 | |
| 300MM | 750809 | 370 | 430 | 390 | 12×23 | 236.00 | |
| 350MM | 750810 | 410 | 480 | 435 | 12×25 | 307.00 | |
| F7364 10K | 50MM | 750821 | 200 | 155 | 120 | 4×19 | 19.40 |
| 65MM | 750822 | 220 | 175 | 140 | 4×19 | 27.60 | |
| 80MM | 750823 | 230 | 185 | 150 | 8×19 | 33.00 | |
| 100MM | 750824 | 250 | 210 | 175 | 8×19 | 45.80 | |
| 125MM | 750825 | 270 | 250 | 210 | 8×23 | 65.90 | |
| 150MM | 750826 | 290 | 280 | 240 | 8×23 | 86.00 | |
| 200MM | 750827 | 320 | 330 | 290 | 12×23 | 136.00 | |
| 250MM | 750828 | 380 | 400 | 355 | 12×25 | 230.00 | |
| 300MM | 750829 | 440 | 445 | 400 | 16×25 | 331.00 | |
| F7369 16K | 50MM | * | 200 | 155 | 120 | 8×19 | 20.40 |
| 65MM | * | 220 | 175 | 140 | 8×19 | 30.40 | |
| 80MM | * | 234 | 200 | 160 | 8×23 | 36.30 | |
| 100MM | * | 254 | 225 | 185 | 8×23 | 54.40 | |
| 125MM | * | 274 | 270 | 225 | 8×25 | 72.50 | |
| 150MM | * | 294 | 305 | 260 | 12×25 | 94.60 | |
| 200MM | * | 328 | 350 | 305 | 12×25 | 149.60 | |
| 250MM | * | 388 | 430 | 380 | 12×27 | 243.50 | |
| 300MM | 750841 | 490 | 480 | 430 | 16×27 | 430.00 |
MATERIALS OF MAJOR PARTS
| Part Name | Material | |||||
| Name | Mark(B) | Name | Mark(S) | |||
| Body,Bonnet | CI | DI | HT200.QT400-15 | CI | DI | HT200.QT400-15 |
| Disc,Seat | Cast bronze | ZCuSn5Pb5Zn5 | Stainless Steel | 2cr13 | ||
| Stem | Bronze | QAI 9-2 | Stainless Steel | 2cr13 | ||
| Packing | Flexible graphite | Flexible graphite | ||||
APPLICABLE SCOPE
The products are used for controlling the medium to open and close, preventing refluence in fuel oil piping, lubricating oil piping and water piping at temperatures 205℃ or less. Dimensions of flange are according to JIS B2220 flange dimensions of steel pipe.
PACKAGING
