Home > Products > Marine Valve > JIS F7319 10K Marine Cast Steel Glove Valve
JIS F7319 10K Marine Cast Steel Glove Valve
US$ 30 - 1,078
/ Piece
1 Piece(Min. Order)
- Qingdao China
- T/T
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Other, globe, globe valve | |
| Pressure | Other, Medium Pressure, 10K | Power | Other, Manual, Manual | |
| Material | Other, Casting, cast iron | Temperature of Media | Normal Temperature | |
| Media | Other, Water, Water, Oil | Port Size | jis dn50-350 mm | |
| Place of Origin | China | Model Number | jis f7319 | |
| Brand Name | oem | Application | General |
Product Description
WELCOME TO QINGDAO HAOWEI SHIP ACCESSORIES CO.,LTD.
Good quality & good price & one-stop service FOR YOU!
Product Description
JIS F7319 10K Marine Cast Steel Glove Valve

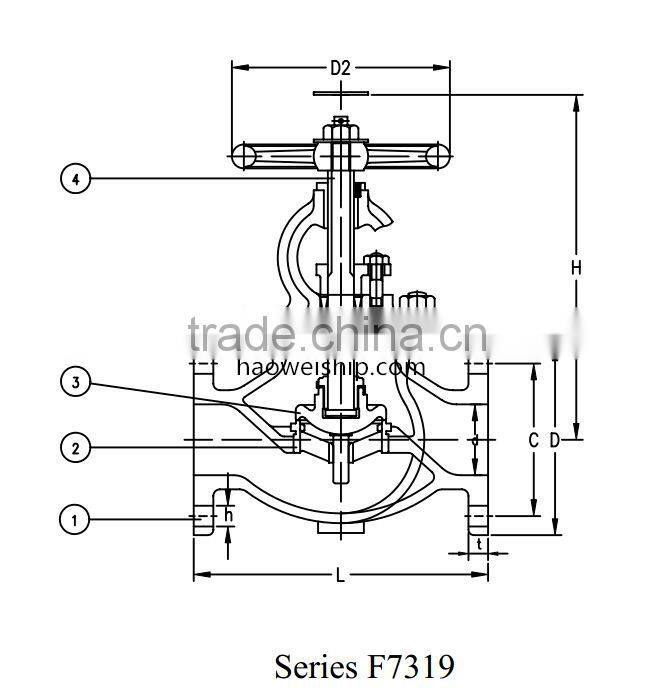

MAIN DATA FOR JOINING(mm)
| SIZE | IMPA | FACE TO FACE | FLANGE DIAM | PITCH | HOLE | WEIGHT |
| (MM) | (MM) | (KG) | ||||
| 50MM | 750411 | 220 | 155 | 120 | 4×19 | 17.90 |
| 65MM | 750412 | 270 | 175 | 140 | 4×19 | 26.00 |
| 80MM | 750413 | 300 | 185 | 150 | 8×19 | 29.80 |
| 100MM | 750414 | 350 | 210 | 175 | 8×19 | 44.70 |
| 125MM | 750415 | 420 | 250 | 210 | 8×23 | 70.30 |
| 150MM | 750416 | 490 | 280 | 240 | 8×23 | 96.40 |
| 200MM | 750417 | 570 | 330 | 290 | 12×23 | 159.00 |
MATERIALS OF MAJOR PARTS
| Part Name | Material | |
| Name | Mark | |
| Body,Bonnet | Cast Steel | 2Cr13 |
| Disc,Seat | Stainless Steel | 2Cr13 |
APPLICABLE SCOPE
The products are used for controlling the medium to open and close, preventing refluence in fuel oil piping, lubricating oil piping and water piping at temperatures 205℃ or less. Dimensions of flange are according to JIS B2220 flange dimensions of steel pipe.

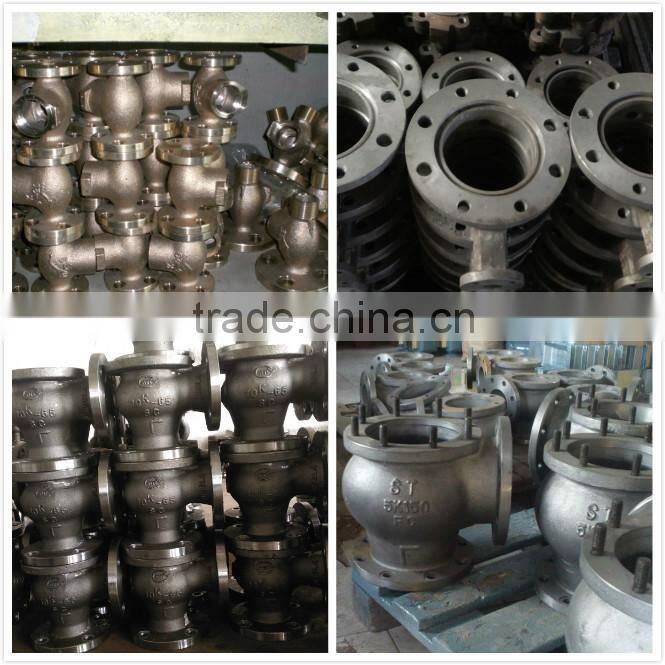

SEMI-FINISHED PRODUCTS

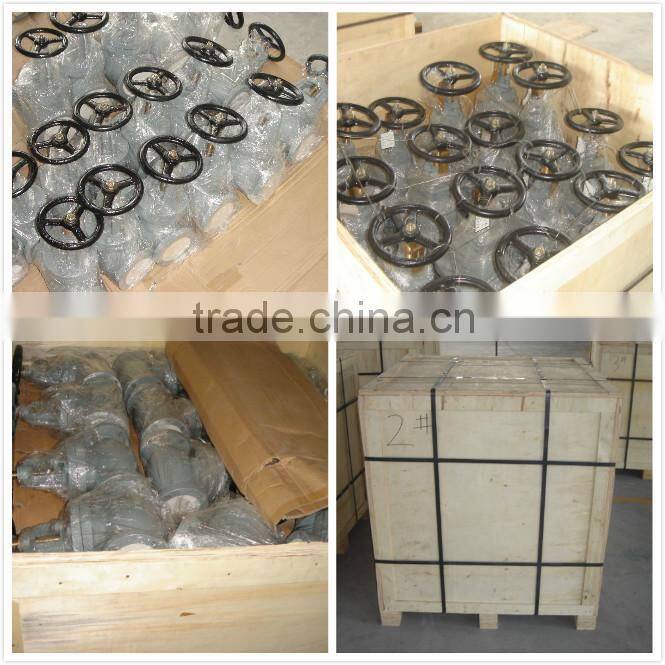

PACKAGING
