JIS F7373 10K Marine Cast Iron Swing Check Globe Valve
US$ 20 - 200
/ Piece
1 Piece(Min. Order)
- Qingdao China
- T/T
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Other, CHECK valve, Check valve | |
| Pressure | Other, Medium Pressure, 10K | Power | Other, Manual, Manual | |
| Material | Other, Casting, cast iron | Temperature of Media | Medium Temperature | |
| Media | Other, Water, Water, Oil | Port Size | DN50-200 | |
| Place of Origin | China | Model Number | JIS F7373 | |
| Brand Name | OEM | Application | General |
Product Description
WELCOME TO QINGDAO HAOWEI SHIP ACCESSORIES CO.,LTD.
Good quality & good price & one-stop service FOR YOU!
Product Description
JIS F7373 10K Marine Cast Iron Swing Check Globe Valve

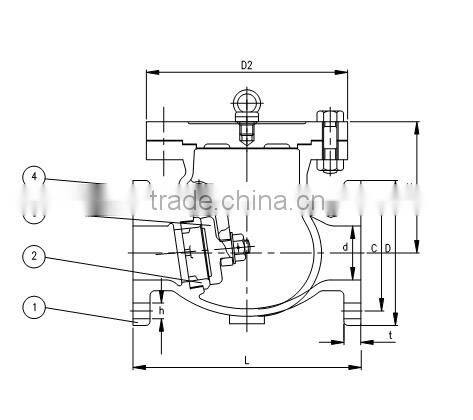

MAIN DATA FOR JOINING(mm)
| JIS F7373 | PRESSURE | SIZE | IMPA | FACE TO | FLANGE DIAM | PITCH | HOLE | WEIGHT |
| (MM) | (MM) | (KG) | ||||||
| 10KGF/CM2 | 50MM | 751431 | 210 | 155 | 120 | 4×19 | 13.60 | |
| 10KGF/CM2 | 65MM | 751432 | 240 | 175 | 140 | 4×19 | 19.60 | |
| 10KGF/CM2 | 80MM | 751433 | 270 | 185 | 150 | 8×19 | 22.60 | |
| 10KGF/CM2 | 100MM | 751434 | 300 | 210 | 175 | 8×19 | 30.90 | |
| 10KGF/CM2 | 125MM | 751435 | 350 | 250 | 210 | 8×23 | 49.20 | |
| 10KGF/CM2 | 150MM | 751436 | 400 | 280 | 240 | 8×23 | 64.90 | |
| 10KGF/CM2 | 200MM | 751437 | 480 | 330 | 290 | 12×23 | 103.00 |
APPLICABLE SCOPE
The products are used for preventing refluence in fuel oil piping, lubricating oil piping and water piping at temperatures 120℃ or less. Dimensions of flange are according to JIS B2220 flange dimensions of steel pipe.
