DDK PCB DIP Type Male Plug Centronic Connector 36 Pin
US$ 1 - 2
/ Piece
1000 Pieces(Min. Order)
- Shenzhen / Guangzhou
- T/T Credit Card PayPal
You May Like
-
DDK PCB Straight DIP 36 Pin Female Receptacle Type Header Connector 2.16mm
-
36 Way Champ PCB Straight DDK Ribbon Female Receptacle Connector With Board Loard
-
36 Pin DDK Ribbon Female Receptacle Type PCB Straight DIP Connector With Spring Latches
-
36 Pin DDK DIP Male Plug Type Champ Centronix Straight PCB Parallel Port Connector
-
2.16mm Champ 36 Pin Female Receptacle DDK PCB Straight DIP Termination Parallel Port Connector for Dot Matrix Printer
-
36Pin 2.16mm Pitch Solder Cup Contacts Header Socket Female Type Receptacle Connector With Spring Latches
Product Details
| Brand Name | FUYCONN | Model Number | FUY57022-36P | |
| Place of Origin | Guangdong, China |
Product Description
Specifications
Item No.: FUY57022-36P1,ROHS compliant, UL-approved
2,High quality, Competitive price
3,Quick delivery time
4,Free sample
Specifications
1) Product features
1. Product Type: Connector
2. Product Line:CENTRONIC
3. Connector Style: Male
4. Certerline :2.16mm(0.85 in)
5. Number of Position:14,24, 36,50,64 pin
6. Contact Material: Copper Alloy
7. Contact Plating: Gold (A:5u" ,B:10u",C:15u"A:30u'')
8. Comb Material:Thermoplastic
9. UL Flammability Rating: UL-94-V0
10. Shell: Stainless steel,Zinc plated,Tin ploted or Nickel plated steel
11. Orientation:Standard
12. Special Function:(Pan Holes)
A: Screw Lock B:Rivet Insert
C: 4.8mm Hex Screw Lock
D: IEEE488 Hex Screw Lock
2) Electrical Specifications
1. Current Rating: 5Amp
2. Voltage rating: DC 1000v per minute
3. Insulator Resistance: 1000Mn MIN.(at 500V DC)
4. Operation Temperature: -55°C to +105°C

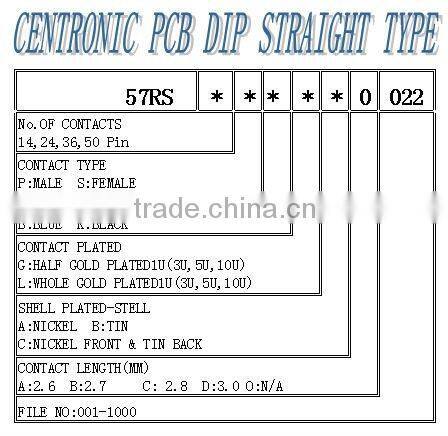

3) Order Information
4)Application

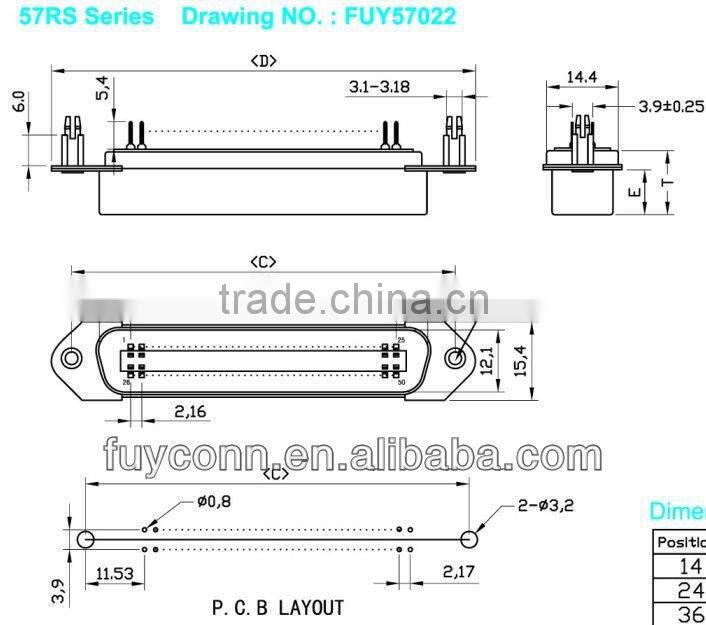

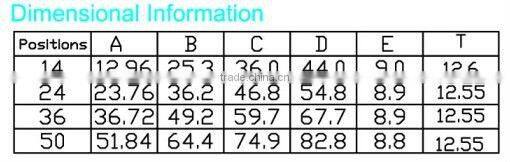

5) Technical Parameters
