57 Series DDK 36 Pin 2.16mm Champ Solder pin header Female Receptacle socket connector with 180 Degree Matel Cover
- SHENZHEN / GUANGZHOU / HK
- T/T Credit Card PayPal
You May Like
-
2.16mm Pitch 36 pin Centronic Connector Female type Receptacle socket Solder Cup Contacts with Hex Head Nuts
-
36P 2.16mm Champ Solder Pin Type Female Header Receptacle Socket Connector with Spring Latch
-
36 Pin Receptacle Header Connector 2.16mm Pitch Solder Type
-
DDK 36 pin Champ Solder Cup Male Plug pin Header Brass contact Ribbon Connector Certificated UL
-
36 Way Male Plug Header Solder Cup Contact 2.16mm Easy Type Connector Certified UL
-
36P DDK Ribbon Plug Male Solder wire Connector with Solder cup contact PBT Insulator
Product Details
| Place of Origin | Guangdong, China | Brand Name | FUYCONN | |
| Model Number | FUY57033-36P | Type | Other, Centronic Solder Connector | |
| Application | Other, Communication Equipment | Gender | Female |
Product Description
Specifications
Item No.: FUY57033-36P1,ROHS compliant, UL-approved
2,High quality, Competitive price
3,Quick delivery time
4,Free sample
Specifications
1) Product features
1. Product Type: Connector
2. Product Line:CENTRONIC
3. Connector Style: Male
4. Certerline :2.16mm(0.85 in)
5. Number of Position:14,24, 36,50,64 pin
6. Contact Material: Copper Alloy
7. Contact Plating: Gold (A:5u" ,B:10u",C:15u"A:30u'')
8. Comb Material:Thermoplastic
9. UL Flammability Rating: UL-94-V0
10. Shell: Stainless steel,Zinc plated,Tin ploted or Nickel plated steel
11. Orientation:Standard
12. Special Function:(Pan Holes)
A: Screw Lock B:Rear Rivet Nut(Through holes3.0mm)
C: 4.8mm Hex Screw Lock
D: IEEE488 Hex Screw Lock
2) Electrical Specifications
1. Current Rating: 5Amp
2. Voltage rating: DC 1000v per minute
3. Insulator Resistance: 1000Mn MIN.(at 500V DC)
4. Operation Temperature: -55°C to +105°C
3) Order Information
Remark : 1. This is general information for each of order.
2. Plz reference to filling out this form before inquiry.
3. We will feedback the latest information to you on time.
4. We are look forwar to long term business cooperation with you.

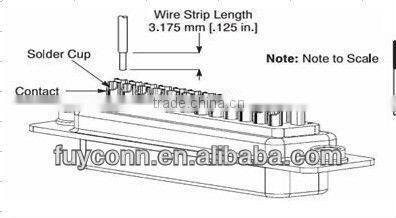

4)Solder Cup Type Connector

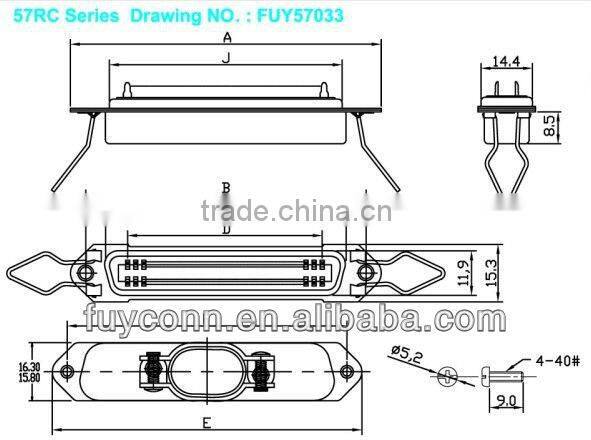

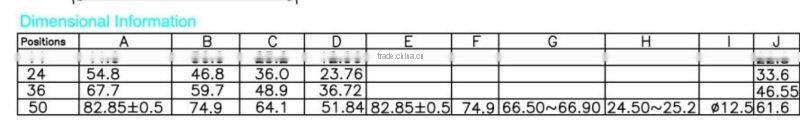

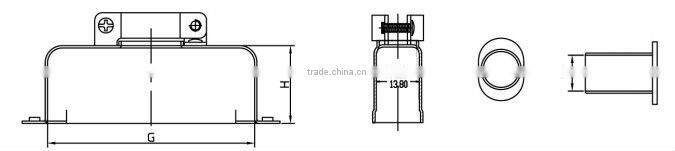

5) Technical Parameters
