57 Series Righat Angle PCB Mount 25 Pairs Centronix Connector 50 Pin Female Receptacle
US$ 1 - 2
/ Piece
1000 Pieces(Min. Order)
- Shenzhen
- T/T Credit Card
You May Like
-
Female PCB Mounting Right Angle 50 Pin Centronix Connector 25 Pairs 2.16mm Pitch
-
57 Series 25 Pairs Female Receptacle Centronic Connector 50 Way PCB Right Angle
-
Plug 50 Way Male Centronic Connector 25 Pairs PCB Mounting Right Angle
-
0.085in Pitch 25 Pairs Champ Right Angle PCB Mount Plug Centronics 25 Pairs Male Connector
-
Male Plug 50 Pin Telecom Connector 25 Pair PCB Mount Right Angle
-
57 Series 50 Pin Connector 25 Pairs PCB Mount DIP Right Angle 2.16mm Pitch Header Connector Male Plug Type
Product Details
| Place of Origin | Guangdong, China | Brand Name | FUYCONN | |
| Model Number | FUY57058-50P |
Product Description
Specifications
Item No.: FUY57058-50P1,ROHS compliant, UL-approved
2,High quality, Competitive price
3,Quick delivery time
4,Free sample
Specifications
Product features
Product Type: Connector
Product Line:CENTRONIC/CHAMP
Product Model: FUY57058
Connector Style: Female
Orientation:Standard Orientation
Shell: Stainless steel,Zinc plated,Tin ploted or Nickel plated steel
PCB Mount Style: Right Angle
Mechanical Attachment
Panel Attachment Style: Square Rivet Insert
Insulator Material:Thermoplastic
Terminal Related Features
Certerline :2.16mm(0.85 in)
Number of Position: 14,24,36,50 pins
PCB Mount Retention Type: Right Angel
Contact Plating: Gold (A:5u" ,B15u",C:15u",D:30u")
Contact Material: Copper Alloy
Housing Features
Connector Style: Receptacle
Housing Material: Thermoplastic
UL Flammability Rating: UL 94-V0
Special Function
A:90°C DIP Square Holes ,Round Head (4*7)
B:Screw Lock
C:3.9mm"Z" Fork Board Lock (Both #4-40 UNC Thread)
Finish
Electrical Specifications:
Current Rating: 5Amp
Voltage rating: DC 1000v per minute
Insulator Resistance: 1000Mn MIN.(at 500V DC)
Operation Temperature: -55°C to +105°C
Application
| 1, VDSL Telecom Equipment | |
| 2, Computer Peripherals | |
| 3, Communication Equipment | |
| 4, PCB Board | |
| 5, Cable to Panel | |
| 6, Cable to cable | |
| 7,Computer terminal | |
| 8,Telemetering | |
| 9,Test Equipment | |
| 10, Printer |

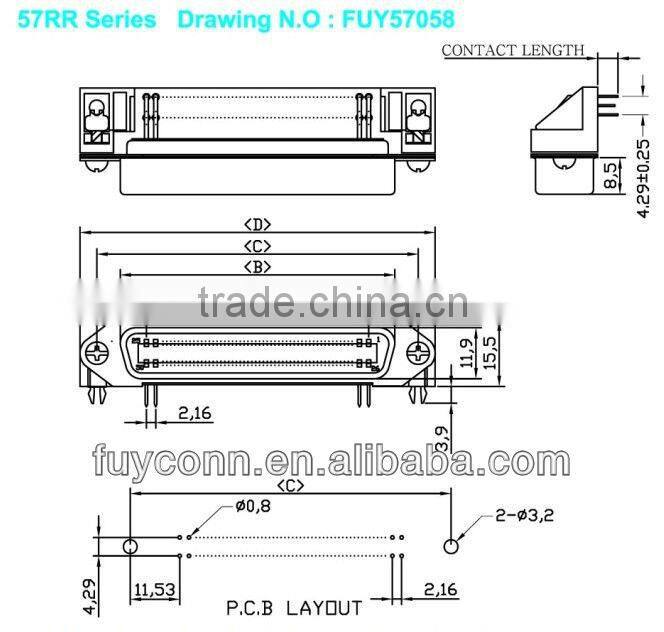

Technology Parameters
