Home > Products > 50 Pin Connector > 2.16mm Champ 25 Pair 50 Pin DDK Ribbon PCB Straight DIP Male Plug Type Connector
2.16mm Champ 25 Pair 50 Pin DDK Ribbon PCB Straight DIP Male Plug Type Connector
US$ 1 - 2
/ Piece
1000 Pieces(Min. Order)
- SHENZHEN / GUANGZHOU
- T/T Credit Card PayPal
You May Like
-
Straight Cable Entry TYCO 50P 25 Pair Champ Female Solder Type Connector Receptacle Header Socket
-
2.16mm Pitch 25pair Solder Pin Header Connector Female Type Receptacle DDK Socket for Ribbon Cable
-
57 Series 25 Pair 2.16mm Pitch Connector 50P Champ Solder Type Receptacle Header Socket With Spring Latches
-
50 Pin Female Header Connector Solder Type 25 Pair Socket 2.16mm Pitch With 180 Degree Matel Cover
-
90 Degree Solder Type 50 Pin 2.16mm Champ 25 Pair Female Receptacle Socket Header Connector With Matel Cover
-
50P 25 Pair Female Socket Connector 2.16mm Solder Type Header With Hex Head Nuts
Product Details
| Brand Name | FUYCONN | Model Number | FUY57021-50P | |
| Place of Origin | Guangdong, China |
Product Description
Specifications
Item No.: FUY57021-50P1,ROHS compliant, UL-approved
2,High quality, Competitive price
3,Quick delivery time
4,Free sample
Specifications
1) Product features
1. Product Type: Connector
2. Product Line:CENTRONIC
3. Connector Style: Male
4. Certerline :2.16mm(0.85 in)
5. Number of Position:14,24, 36,50,64 pin
6. Contact Material: Copper Alloy
7. Contact Plating: Gold (A:5u" ,B:10u",C:15u"A:30u'')
8. Comb Material:Thermoplastic
9. UL Flammability Rating: UL-94-V0
10. Shell: Stainless steel,Zinc plated,Tin ploted or Nickel plated steel
11. Orientation:Standard
12. Special Function:
A: Screw Lock B:Rivet Insert
C: 4.8mm Hex Screw Lock
D: IEEE488 Hex Screw Lock
2) Electrical Specifications
1. Current Rating: 5Amp
2. Voltage rating: DC 1000v per minute
3. Insulator Resistance: 1000Mn MIN.(at 500V DC)
4. Operation Temperature: -55°C to +105°C

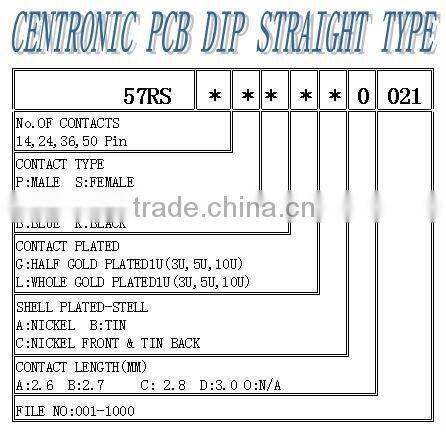

3) Order Information
4)Application
| 1, VDSL Teleccom Equipment | |
| 2, Computer Peripherals | |
| 3, Communication Equipment | |
| 4, PCB Board | |
| 5, Cable to Panel | |
| 6, Cable to cable | |
| 7,Computer terminal | |
| 8,Telemetering | |
| 9,Test Equipment | |
| 10, Printer |

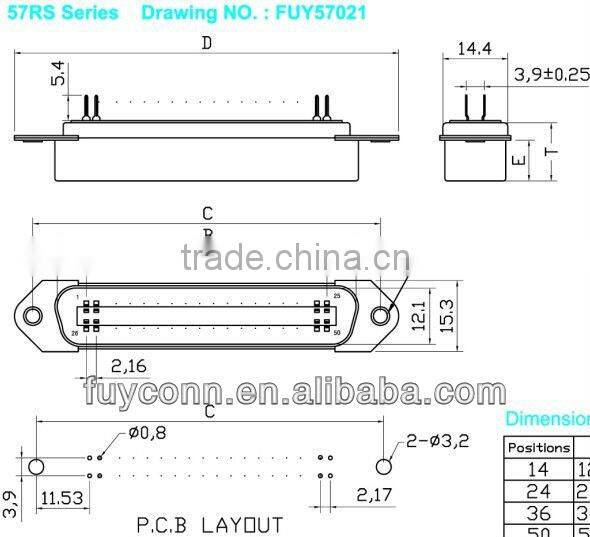

5) Technology Parameters
