Home > Products > 50 Pin Connector > 50 Way Solder Cup Contact PBT Connection Connector Male Plug Type 25 Pair DDK Ribbon Header
50 Way Solder Cup Contact PBT Connection Connector Male Plug Type 25 Pair DDK Ribbon Header
- Shenzhen / Guangzhou
- T/T Credit Card PayPal
You May Like
-
50 Way Centronic Solder Cup Pin Connector Male Plug DDK Header Connector for Ribbon
-
50 Way Centronic Ribbon DDK Solder Cup Contacts PBT Insutlator Male Plug Header Conenctor
-
50 Pin 25 Pair DDK Side Cable Exit Plug Champ Solder 2.16mm Pitch PBT Insulator Header Connector
-
Centronic 2.16mm Pitch Solder 25 Pair 50P Plug Male Pin Header Connector With 180 Degree Cable Outlet Matel Cover Certified UL
-
All Plastic TYCO 90 Degree Receptacle Solder Type Champ 50 Pin Socket Connector 2.16mm Pitch
-
TYCO AMP 180 Degree Centronics Champ Solder Pin Plug Male 50 Pin Header Connector
Product Details
| Brand Name | FUYCONN | Model Number | FUY57028-50P | |
| Place of Origin | Guangdong, China | Use | Other, Computer |
Product Description
Specifications
Item No.: FUY57028-50P1,ROHS compliant, UL-approved
2,High quality, Competitive price
3,Quick delivery time
4,Free sample
Specifications
1) Product features
1. Product Type: Connector
2. Product Line:CENTRONIC
3. Connector Style: Male
4. Certerline :2.16mm(0.85 in)
5. Number of Position:14,24, 36,50,64 pin
6. Contact Material: Copper Alloy
7. Contact Plating: Gold (A:5u" ,B:10u",C:15u"A:30u'')
8. Comb Material:Thermoplastic
9. UL Flammability Rating: UL-94-V0
10. Shell: Stainless steel,Zinc plated,Tin ploted or Nickel plated steel
11. Orientation:Standard
12. Special Function:(Pan Holes)
A: Screw Lock B:Rivet Insert
C: 4.8mm Hex Screw Lock
D: IEEE488 Hex Screw Lock
2) Electrical Specifications
1. Current Rating: 5Amp
2. Voltage rating: DC 1000v per minute
3. Insulator Resistance: 1000Mn MIN.(at 500V DC)
4. Operation Temperature: -55°C to +105°C

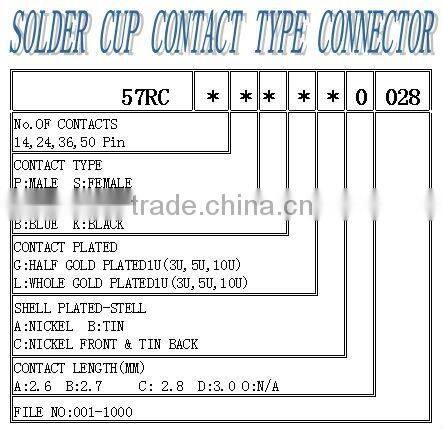

3) Order Information
Remark : 1. This is general information for each of order.
2. Plz reference to filling out this form before inquiry.
3. We will feedback the latest information to you on time.
4. We are look forwar to long term business cooperation with you.
4)Solder Cup Type Connector

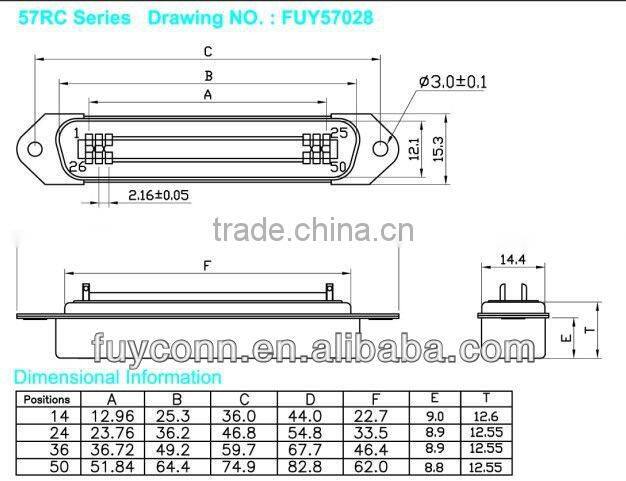

4) Technical Parameters
